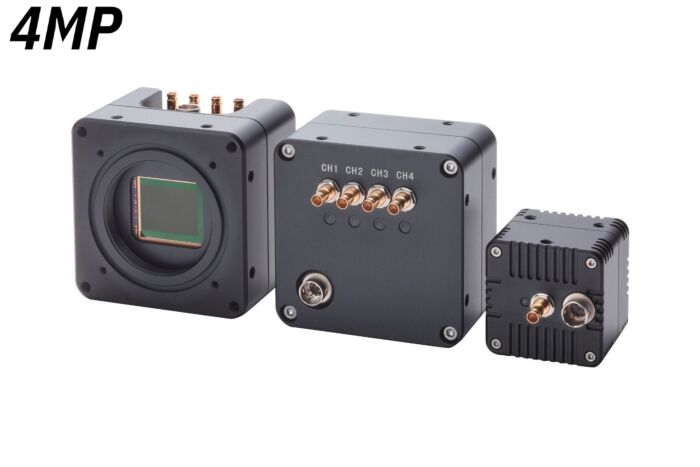

Omron STC-CMB401ACXP 4MP CoaXPress Global Shutter Area Scan Camera With CMOSIS CMV4000 Sensor
*Please note tariff fee is included in price*
4MP CoaXPress global shutter area scan camera with CMOSIS CMV4000 sensor, delivering up to 180 fps, flexible ROI, HDR, and robust aluminum housing for high‑speed industrial machine vision and inspection applications.
The STC-CMB401ACXP is a 4 megapixel CoaXPress area scan camera engineered for high-speed industrial imaging and machine vision. It leverages a global shutter CMOSIS CMV4000 sensor to capture sharp, high‑resolution images at up to 180 fps with little to no motion blur, making it ideal for precise inspection of fast‑moving parts and processes in demanding production environments. Its CoaXPress (CXP‑6) interface delivers high‑bandwidth, low‑latency data transmission over coaxial cable, simplifying system design while enabling long‑distance runs between camera and frame grabber.
Designed for reliability in 24/7 industrial use, the STC‑CMB401ACXP supports flexible Region of Interest (ROI), HDR, and advanced pixel and line correction functions to optimize image quality and throughput. A robust aluminum alloy housing, M42 lens mount, and wide operating temperature range support integration into machine vision, industrial inspection, and automation systems across North America and other global manufacturing markets.
Features:
- 4 megapixel resolution (CMOSIS CMV4000 global shutter CMOS sensor)
- Up to 180 fps frame rate at 8‑bit, 4‑lane CoaXPress (CXP‑6)
- Global shutter for low‑blur imaging of fast‑moving objects
- CoaXPress CXP‑6 4‑lane video output interface for high‑bandwidth data transfer
- Full scanning and variable ROI modes for throughput optimization
- HDR, pixel defect correction, and vertical line correction supported
- GenICam‑compliant control and CoaXPress 1.1 protocol communication
- Power over CoaXPress (PoCXP) support via CH1 for simplified cabling
- Rugged aluminum alloy housing with M42×P1.0 lens mount, 68 × 68 × 40 mm size
- EN61000‑6‑2 (EMS) and EN55022 Class B (EMI) compliance; RoHS/REACH compliant
Applications:
- Machine vision
- Industrial inspection
- Electronics inspection
- High-speed metrology
- Robotics guidance
- Packaging lines
- Print inspection
| Model | |
|---|---|
| Model Number | STC-CMB401ACXP |
| Image Sensor | |
| Sensor Type | 1.76" Type 12 Megapixel monochrome progressive CMOS (CMOSIS CMV4000) |
| Shutter | Global shutter |
| Active Picture Element | 4096 (H) × 3072 (V) |
| Chip Size | 22.5 × 16.9 mm |
| Pixel Size | 5.5 (H) × 5.5 (V) μm |
| Function | |
| Scanning System | Full scanning, Variable ROI |
| Scanning Method | Full scanning, Variable ROI |
| Frame Rate | 180 fps (8-bit, 4-lane) |
| Video Output Interface | CoaXPress CXP-6 (6.25 Gbps) × 4 lanes |
| Noise Level (8-bit) | <= TBD digit (Gain 0 dB) |
| Minimum Scene Illumination | TBD lux at F2.25 |
| Synchronization | Internal |
| Shutter Speed | 16 μs to 16 s |
| Gain (Digital) | ×1 to ×5 |
| Gain (Analog) | ×1, ×2, ×3 |
| Trigger Modes | FreeRun / Edge Preset Trigger / Pulse Width Trigger / CXP Trigger Packet |
| Communication | Protocol: CoaXPress Standard Version 1.1; Interface: GenICam |
| ROI | Adjustable, step size: 16 pixels (H), 4 lines (V) |
| I/O | 3 × GPIO |
| Binning | N/A |
| HDR | Supported |
| Pixel Defect Correction | Supported |
| Vertical Line Correction | Supported |
| Power | |
| Input Source | PoCXP (I/O connector CH1 only) *1 |
| Input Voltage | TBD (18.5 VDC to 26 VDC, 24 V nominal) |
| Power Consumption | 120 (unit TBD) |
| Mechanical | |
| Dimensions | 68 (W) × 68 (H) × 40 (D) mm (excluding connectors) |
| Optical Filter | No IR cut filter |
| Housing Material | Aluminum alloy |
| Lens Mount | M42 × P1.0, flange back 10.0 mm (in air) |
| Interface Connectors | CXP: DIN1.0/2.3 jack × 4, 75 Ω; Power/IO: HR10A-7R-6PB (Hirose) or equivalent |
| Weight | 120 (unit TBD) |
| Environmental | |
| Operating Temperature | TBD (-5 to 40 °C) |
| Storage Temperature | TBD (-30 to 65 °C) |
| Vibration | 20 Hz to 200 Hz to 20 Hz (5 min/cycle), 10 G, XYZ 3 directions, 30 min each |
| Shock | 38 G, half amplitude 6 ms, XYZ 3 directions, 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55022 (Class B) |
| Environmental Compliance | RoHS, REACH compliant |
