Omron STC-MCS212CXP6 CoaXPress Color CMOS Camera

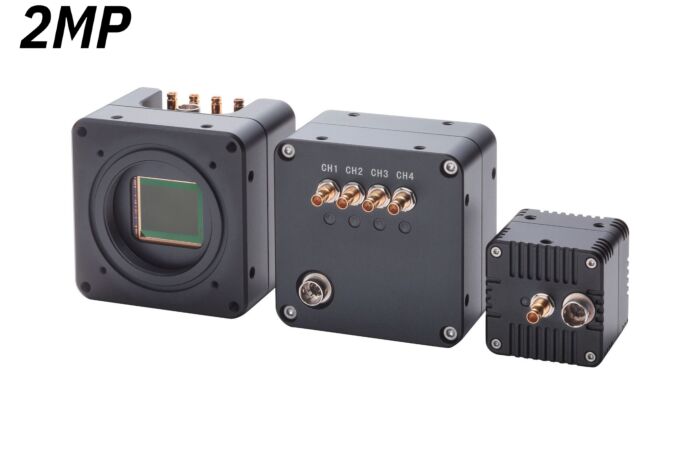

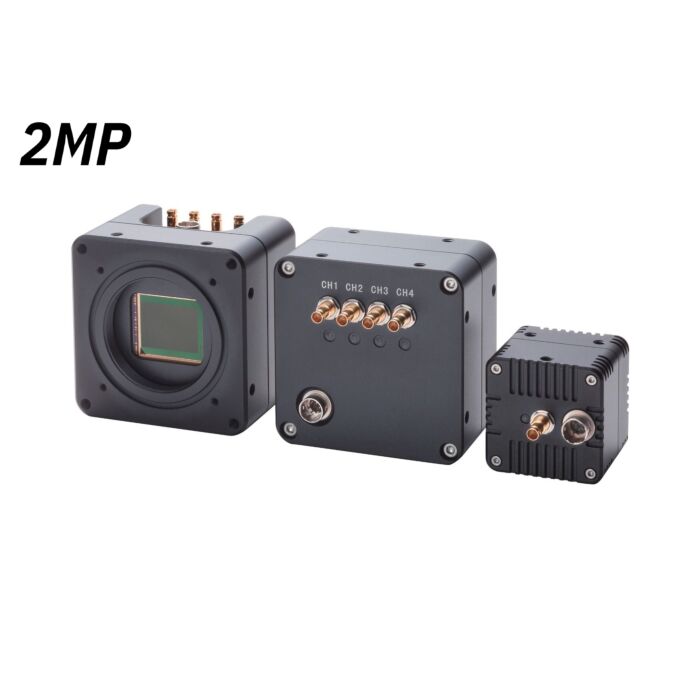

Sentech/Omron STC-MCS212CXP6 CoaXPress Color CMOS Camera
SKU
STC-MCS212CXP6

These Sentech cameras are perfect for applications requiring high quality with it's IMX422 2MP global shutter sensor.

Features:

  • CoaxPress (CXP) Interface: CXP-6, 1 lane
  • PoCXP (Power Over CoaxPress) support
  • Maximum frame rate (Full resolution): 239 fps @ 2M 8bits
  • CMOS (Global Shutter)
  • Up to TBD Pixel Defect Correction (Defualt: ON)
  • 8bits, 10bits, 12bits output
Image Sensor

1/1.7” 2M Progressive Color CMOS (SONY: IMX422)

Shutter Type Global Shutter
Active Picture Element 1624 (H) x 1240 (V)
Cell Size 4.5 (H) x 4.5 (V) µm
Scanning System Full scanning / ROI
Frame Rate (Full Resolution)

8bits: 239 fps
10bits Packed: 194 fps
12bits Packed: 165 fps

ADC bit width 12bits
Image Output Format

Mono8
Mono10Packed
Mono12Packed

CoaXPress Data Output

CXP-6 (6.25 Gbps) 1 Lane

Noise Level

8bits output: Less than TBD digits (Gain 0 dB)
10bits output: Less than TBD digits (Gain 0 dB)
12bits output: Less than TBD digits (Gain 0 dB)

Sensitivity (*1) TBD Lux
Exposure Time

1 μseconds to 16.777 seconds (Default: TBD μseconds)

Gain Analog: 0 to 18 dB (Default: 0 dB)
Digital: x1 to x3 (Default: x1)
Black Level

0 to 63 digits @ 8bits

White Balance Gain N/A
ROI

Horizontal: TBD to 1,624 pixels / Vertical: 4 to 1,240 lines (Default: 1,624 x 1,240)

Adjustable Steps for size: 8 pixels in horizontal direction / 4 lines in vertical direction

Adjustable Steps for offset: 8 pixels in horizontal direction / 4 lines in vertical direction

Multi ROIs TBD
Gamma TBD
Binning

Horizontal and Vertical summing / Off

Decimation N/A
Image Flip

Horizontal / Vertical / Horizontal and Vertical / Off

Defective Pixel Correction Up to TBD points
Auto Image Control Auto Exposure:
Auto Gain:
Auto White Balance:
Operational Mode

Edge Preset Trigger / Pulse Width Trigger / CXP Tigger Packet / Free Run

Interface

GenICam

Protocol

CoaXPress Standard Version 1.1

I/O 4 GPIOs
Power  Input Voltage:
Consumption: Maximum - Less than TBD W, Typical: TBD W
