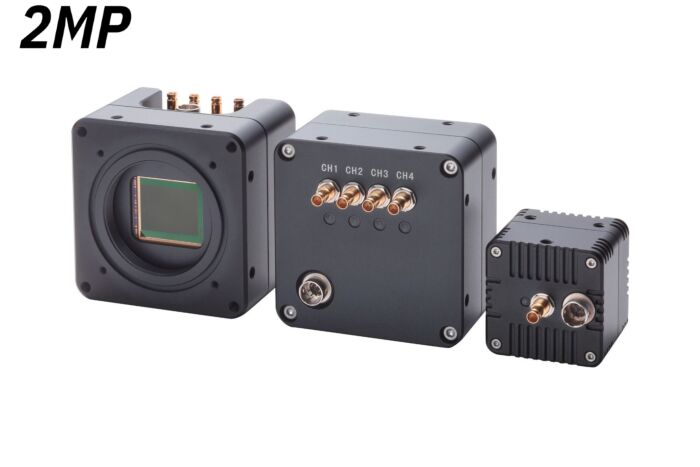

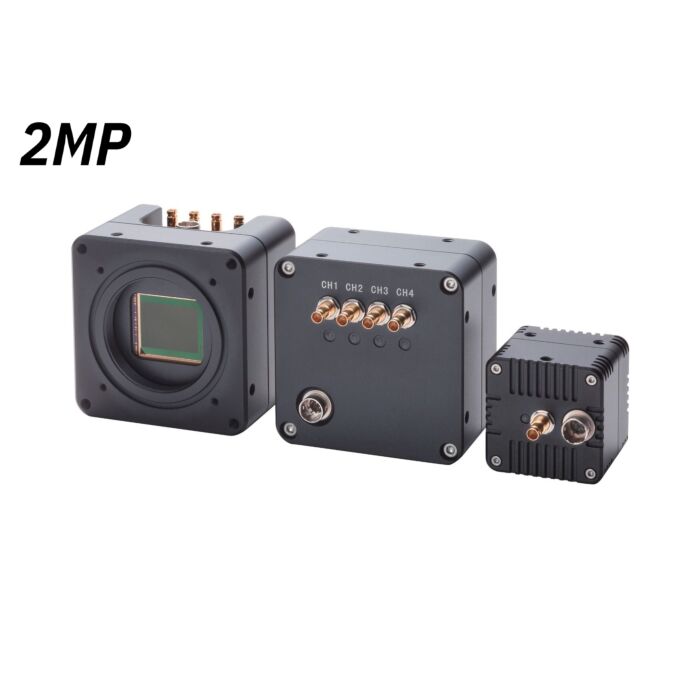

Omron STC-MBS212CXP6 CoaXPress Monochrome CMOS Camera
SKU
STC-MBS212CXP6
$1,641.05
Quick Overview
*Please note tariff fee is included in price*
Omron STC-MBS212CXP6 CoaXPress Monochrome CMOS Camera NDAA CompliantThese Sentech cameras are perfect for applications requiring high quality with it's IMX422 2MP global shutter sensor.
Features:
- CoaxPress (CXP) Interface: CXP-6, 1 lane
- PoCXP (Power Over CoaxPress) support
- Maximum frame rate (Full resolution): 239 fps @ 2M 8bits
- CMOS (Global Shutter)
- Up to TBD Pixel Defect Correction (Defualt: ON)
- 8bits, 10bits, 12bits output
| Image Sensor | 1/1.7” 2M Progressive Monochrome CMOS (SONY: IMX422) |
| Shutter Type | Global Shutter |
| Active Picture Element | 1624 (H) x 1240 (V) |
| Cell Size | 4.5 (H) x 4.5 (V) µm |
| Scanning System | Full scanning / ROI |
| Frame Rate (Full Resolution) | 8bits: 239 fps |
| ADC bit width | 12bits |
| Image Output Format | Mono8 |
| CoaXPress Data Output | CXP-6 (6.25 Gbps) 1 Lane |
| Noise Level | 8bits output: Less than TBD digits (Gain 0 dB) |
| Sensitivity (*1) | TBD Lux |
| Exposure Time | 1 μseconds to 16.777 seconds (Default: TBD μseconds) |
| Gain | Analog: 0 to 18 dB (Default: 0 dB) Digital: x1 to x3 (Default: x1) |
| Black Level | 0 to 63 digits @ 8bits |
| White Balance Gain | N/A |
| ROI | Horizontal: TBD to 1,624 pixels / Vertical: 4 to 1,240 lines (Default: 1,624 x 1 |
