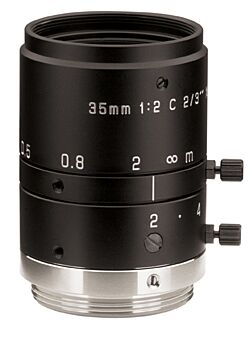

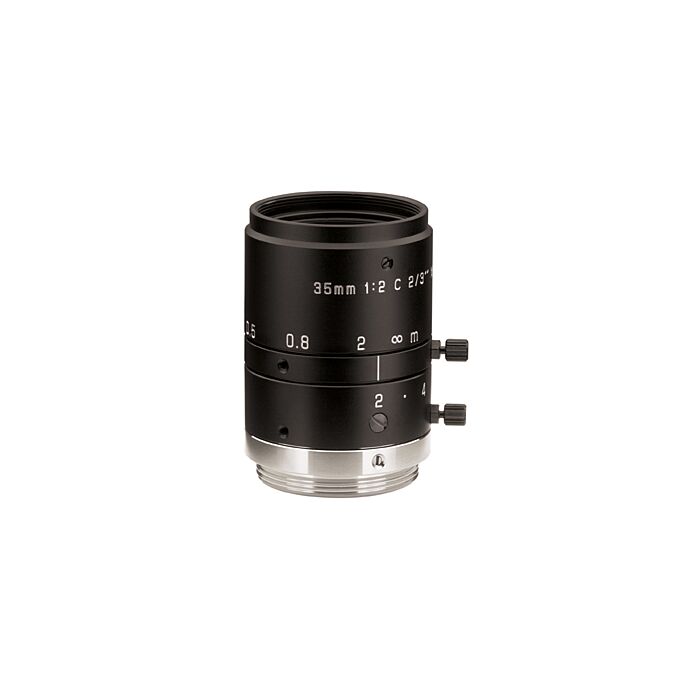

ADL MFA3520 2/3" 35mm F2.0 3mp Manual Iris C-Mount Lens
SKU
MFA3520
Quick Overview
ADL Factory Automation & Machine Vision Lenses
The ADL MFA3520 FA/Machine Vision Lens has low distortion and a high resolution. Then the MFA3520 also comes with locking screws and a metal housing.
Features:
- High resolution and high contrast
- Minimum distortion.
- Locking screw for focus and iris. Not available for F0.95 series
- Compact size and lightweight
FMT | MODEL NUMBER | FOCAL LENGTH | IRIS RANGE | IRIS DRIVE | MNT | HORIZONTAL ANGLE OF VIEW | M.O.D. (m) | DIMENSIONS (mm) | Wht (g) | NOTE | |
(2/3") | (1/2") | ||||||||||
| 2/3" | MFA3520 | 35.0mm | F2.0 - F22 | Manual | C | 14.3° | 0,25 | 0,4 | ø29 x 38.5 | 55 | Lock Screw |
