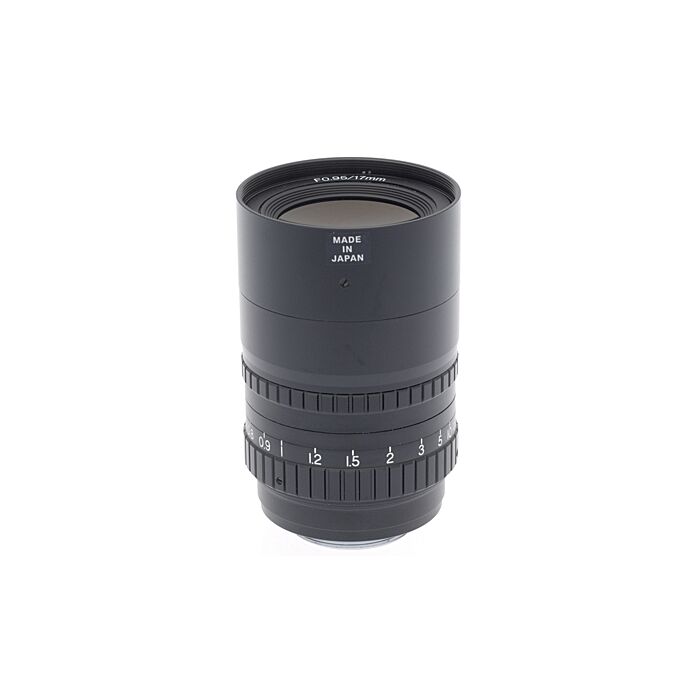

ADL MFA1795H 2/3" 17mm F0.95 1.3mp Manual Iris C-Mount Lens
SKU
MFA1795H
Quick Overview
The ADL HFA0614 FA/Machine Vision Lens has low distortion and a high resolution. Then the HFA0614 also comes with locking screws and a metal housing.
ADL MFA1795H is built for industrial and machine vision applications.
Features:
- High resolution and high contrast
- Minimum distortion.
- Locking screw for focus and iris. Not available for F0.95 series
- Compact size and lightweight
FMT | MODEL NUMBER | FOCAL LENGTH | IRIS RANGE | IRIS DRIVE | MNT | HORIZONTAL ANGLE OF VIEW | M.O.D. (m) | DIMENSIONS (mm) | Wht (g) | NOTE | |
(2/3") | (1/2") | ||||||||||
| 2/3" | MFA1795H | 17.0mm | F0.95 - F16 | Manual | C | 29.0° | 21.3° | 0,5 | ø42 x 63.2 | 165 | Hi-speed F0.95 |
