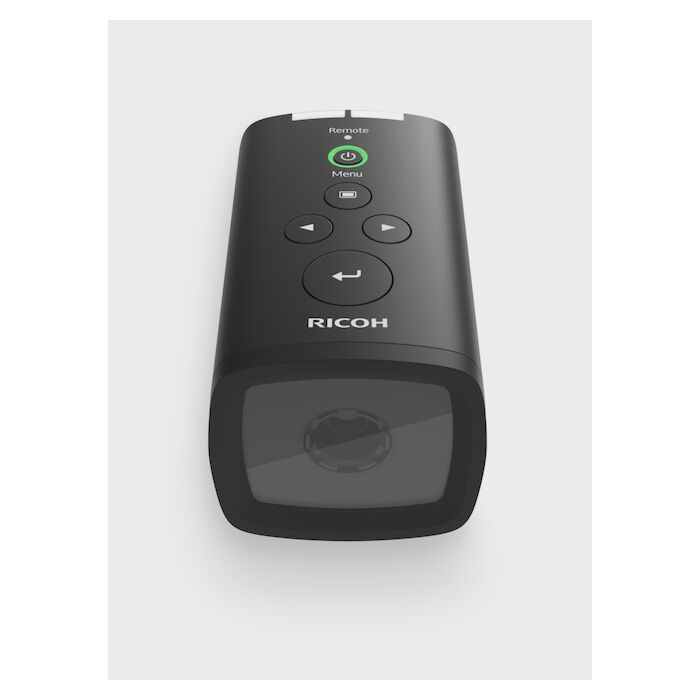

RICOH SC-10A Work Assistance Inspection Camera System | Factory Automation Vision System
*In Stock Now Only 1 Left
The RICOH SC-10A Inspection Camera System is an all-in-one work assistance and machine vision solution designed for factory automation and quality inspection applications.
Featuring pattern matching, color recognition, texture inspection, and serial number verification, the SC-10A simplifies production inspection workflows while logging inspection results and images for traceability.
With built-in HDMI output, Ethernet connectivity, and USB support, the SC-10A integrates easily into industrial inspection environments.
The RICOH SC-10A is an integrated machine vision inspection camera system designed to simplify automated inspection tasks in manufacturing and factory automation environments.
This all-in-one vision system combines image capture, inspection algorithms, logging, and connectivity into a compact platform that is easy to install and deploy.
The SC-10A supports pattern matching, color detection, and texture inspection, allowing manufacturers to automate quality checks, confirm correct assembly, and verify production processes with minimal configuration.
Inspection results and captured images can be automatically logged for quality control documentation and traceability.
Features:
- Image Recognition: Pattern Matching, Color Recognition, Texture Check
- Serial Number Input: Checks the number of characters and character strings
- All-in-One Vision Inspection System
- Pattern Matching Image Recognition
- Color Recognition Inspection
- Texture Detection for Surface Verification
- Serial Number Verification and Character String Checking
- Result Logging in CSV Format
- Image Logging in JPG Format
- HDMI Video Output for Display Integration
- Ethernet Networking for Industrial Integration
- USB and SD Card Storage Support
- Wireless LAN Option (2.4 GHz)
- Compact Industrial Camera Design
Applications:
- Factory Automation
- Assembly Verification
- Machine Vision Quality Control
- Manufacturing Process Monitoring
- Product Assembly Confirmation
- Barcode and Serial Number Verification
- Packaging Inspection
- Surface Texture Inspection
| Item | Standard Model | High-Magnification Model | |
| RICOH SC-10A | RICOH SC-10A (H) | ||
| Installation Distance | 400-800 mm | ||
| Field of View | Installation distance 400 mm: 300 (H) × 150 (V) mm Installation distance 800 mm: 600 (H) × 300 (V) mm | Installation distance 400 mm: 150 (H) × 75 (V) mm Installation distance 800 mm: 300 (H) × 150 (V) mm | |
| Image Sensor - Number of Pixels | 1/3-inch color CMOS Number of pixels: 1280×720 | ||
| Work instruction image | JPG format (610x680) | ||
| Applicable Languages | Japanese, English, Chinese(simplified characters) | ||
| Pattern Matching | Area specification (ROI): Specify area with absolute position Position correction: Relative position correction from the reference image Level surface rotation correction: ±180° Number of simultaneous registrations: Maximum 9 places | ||
| Serial number input mode | Number of characters check: Matches set numbers of characters Character string check: Matches set character string on left | ||
| Result Logging | Output Method | Saved in JPG format to the specified path | |
| Setting Method | Image logging can be enabled or disabled or each work item | ||
| External Interfaces | HDMI® (1920×1080/60Hz, 1280×1024/60Hz) USB (TYPE-A x1 USB2.0 High Speed supported (Host) *Enabled device: USB-HID, USB-Mass Storage) Ethernet (RJ-45×1 10Base-T/100Base-TX/1000Base-T) SD card (SD/SDHC x1 High Speed supported *UHS-I not supported) Wireless LAN (IEEE802.11b/g/n (2.4 GHz) compliant (Wireless LAN model only)) | ||
| I/O | Buzzer, Electromagnetic (Volume: high, low, mute) LED indicator lamps (Power, OK, NG, Remote) Switches (Power, Menu, Enter, ⇔) | ||
| Ratings | Power Voltage | DC12V±10% (IN connector for AC adapter) (Model including an AC adapter only) DC12, 24V±10% (External connector) *Do not connect both power supply sources at the same time. | |
| Power Consumption | 8.9W or less | ||
| Environmental resistance | Operating temperature range | 0 to +40°C | |
| Storage temperature range | -20 to +60°C | ||
| Ambient humidity range | 30 to 80% RH *No condensation | ||
| External Dimensions | 78 (W) x 73.5 (H) x 126.5 (D) mm (excluding connectors) | ||
| Weight | Approx. 400 g | ||
| Mounting Holes | Tripod mount screw hole (ISO 1222 compliant), M4 screw hole x2 | ||
| AC adapter (Model including an AC adapter only) | Product name (Manufacturer) | ATS024T-A120 (Adapter Technology Co., LTD) | |
| Ratings | Input Voltage: 100 to 240 VAC/50 to 60 Hz Output Voltage: +12V +/- 5% Output Current 2A Max | ||
| External Dimensions | 50(W) x 34(H) x 88.5(D)mm excluding cable | ||
| Weight | Approx 170 g | ||
