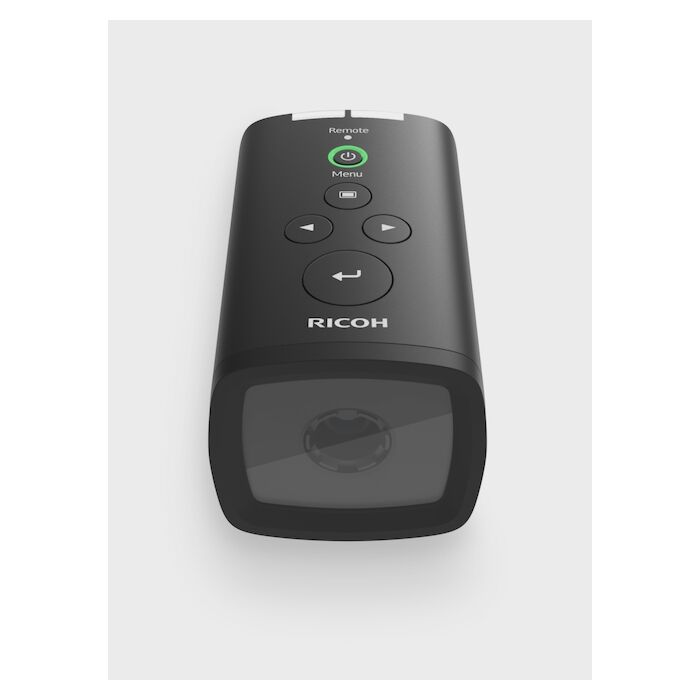

RICOH SC-10A (H) Inspection Camera System
SKU
SC-10A(H)
Quick Overview
The SC-10A (H) is a camera system using image recognition for factory assembly lines to automatically check if jobs are done properly. The RICOH SC-10 series uses pattern matching to automatically check the assembly status such as similar parts, missing parts and work order during work. It can be used for work analysis and traceability because it can record images of results and work results such as serial numbers of parts and work time.
Enhance Your Automation with the RICOH SC-10A Work Assistance Camera System
The RICOH SC-10A work assistance camera system is a versatile, all-in-one solution designed to streamline factory automation and machine vision tasks. Available in both standard and high-magnification models, the SC-10A (H) delivers advanced image recognition and logging capabilities, ensuring precision and efficiency in your workflow.
Features:
- Image Recognition Technology: Advanced pattern matching, color recognition, and texture checks ensure accurate and consistent results.
- Serial Number Verification: Verifies the number of characters and character strings, enhancing quality control.
- Comprehensive Logging: Stores results in CSV format and image logs in JPG, making data analysis straightforward.
Applications:
- Factory Automation
- Machine Vision
- Worker Inspection
| Item | Standard Model | High-Magnification Model | |
| RICOH SC-10A | RICOH SC-10A (H) | ||
| Installation Distance | 400-800 mm | ||
| Field of View | Installation distance 400 mm: 300 (H) × 150 (V) mm Installation distance 800 mm: 600 (H) × 300 (V) mm | Installation distance 400 mm: 150 (H) × 75 (V) mm Installation distance 800 mm: 300 (H) × 150 (V) mm | |
| Image Sensor - Number of Pixels | 1/3-inch color CMOS Number of pixels: 1280×720 | ||
| Work instruction image | JPG format (610x680) | ||
| Applicable Languages | Japanese, English, Chinese(simplified characters) | ||
| Pattern Matching | Area specification (ROI): Specify area with absolute position Position correction: Relative position correction from the reference image Level surface rotation correction: ±180° Number of simultaneous registrations: Maximum 9 places | ||
| Serial number input mode | Number of characters check: Matches set numbers of characters Character string check: Matches set character string on left | ||
| Result Logging | Output Method | Saved in JPG format to the specified path | |
| Setting Method | Image logging can be enabled or disabled or each work item | ||
| External Interfaces | HDMI® (1920×1080/60Hz, 1280×1024/60Hz) USB (TYPE-A x1 USB2.0 High Speed supported (Host) *Enabled device: USB-HID, USB-Mass Storage) Ethernet (RJ-45×1 10Base-T/100Base-TX/1000Base-T) SD card (SD/SDHC x1 High Speed supported *UHS-I not supported) Wireless LAN (IEEE802.11b/g/n (2.4 GHz) compliant (Wireless LAN model only)) | ||
| I/O | Buzzer, Electromagnetic (Volume: high, low, mute) LED indicator lamps (Power, OK, NG, Remote) Switches (Power, Menu, Enter, ⇔) | ||
| Ratings | Power Voltage | DC12V±10% (IN connector for AC adapter) (Model including an AC adapter only) DC12, 24V±10% (External connector) *Do not connect both power supply sources at the same time. | |
| Power Consumption | 8.9W or less | ||
| Environmental resistance | Operating temperature range | 0 to +40°C | |
| Storage temperature range | -20 to +60°C | ||
| Ambient humidity range | 30 to 80% RH *No condensation | ||
| External Dimensions | 78 (W) x 73.5 (H) x 126.5 (D) mm (excluding connectors) | ||
| Weight | Approx. 400 g | ||
| Mounting Holes | Tripod mount screw hole (ISO 1222 compliant), M4 screw hole x2 | ||
| AC adapter (Model including an AC adapter only) | Product name (Manufacturer) | ATS024T-A120 (Adapter Technology Co., LTD) | |
| Ratings | Input Voltage: 100 to 240 VAC/50 to 60 Hz Output Voltage: +12V +/- 5% Output Current 2A Max | ||
| External Dimensions | 50(W) x 34(H) x 88.5(D)mm excluding cable | ||
| Weight | Approx 170 g | ||
