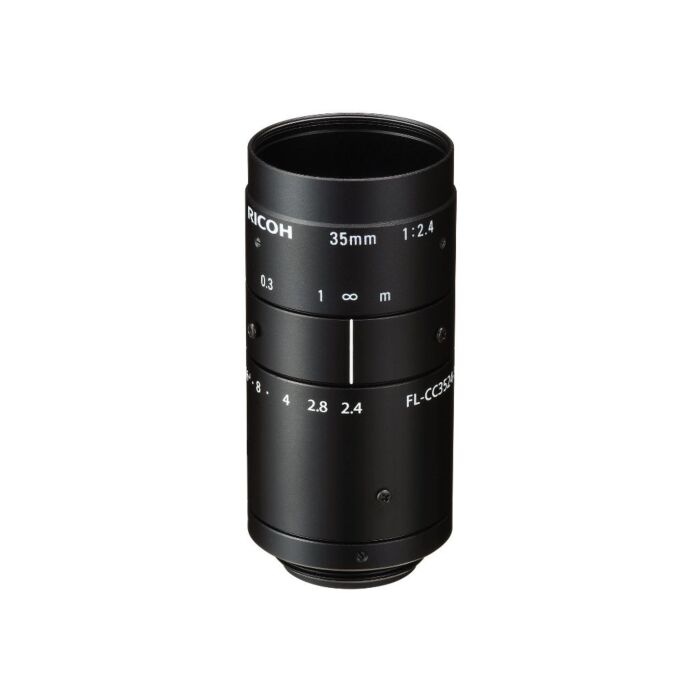

RICOH FL-CC3524-5MX (FLCC35245MX) 5 Megapixel 35mm Focal Length FA Lens
The 5 MegaPixel lens is developed to be used with 2/3" format cameras are not only optimized for high image quality, but also for use in harsh environments and durable industrial systems.
SKU
FL-CC3524-5MX-Ricoh-SP
The new lenses feature a 35mm compact design. Despite their 5 Megapixel high resolution, their size allows a high degree of freedom incorporating them into a wide range of equipment positions.
Features:
Applications:
| Resolution | Over 5 Mega-Pixel |
| Format Size | 2/3" format |
| Focal Length | 35 mm |
| Maximum aperture ratio | 1:2.4 |
| Iris Range | 2.4 ～ 16 |
| Mount | C |
| HAV (Horizontal Angle Of View) | 1/3" format - 7.8° 1/2" format - 10.4° 1/1.8" format - 11.7° 2/3" format - 14.3° |
| Minimum Object Distance | 0.1m |
| Back Focal Length | 14.3mm |
| Filter Size | 30.5 P=0.5mm |
| Dimensions |
φ33 Å~ 65.5mm |
| Weight | 100 g |
