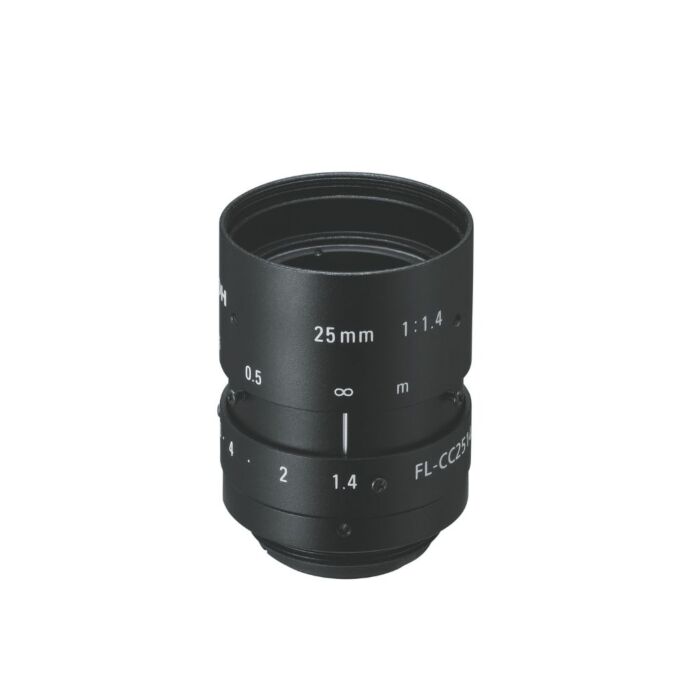

RICOH FL-CC2514A-2M (FLCC2514A2M) 2/3" (2MP) 25 mm Manual Iris Lens

The RICOH FL-CC2514A-2M is a 2/3" 25MM F1.4 Manual Iris C-Mount, 2 Megapixel Lens.

SKU
FL-CC2514A-2M-Ricoh

The RICOH FL-CC2514A-2M manual-iris lenses are outstanding for image processing data capture at 2 mega-pixels.


Features:


  • High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
  • Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
  • With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
  • They greatly reduce distortion that causes problems in image measurement and recognition
  • Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

  • Applications:


  • High-Precision Manufacturing
  • Inspection (chip mounters, wafers, electronic substrates)
  • Machine Vision
  • Format Size

    2/3"

    Focal Length 25 mm
    Maximum aperture ratio 11.4
    Iris Range  1.4~16
    Mount C
    Horizontal Angle of View 1/3" Format 10.7°
    Horizontal Angle of View 1/2" Format 14.2°
    Horizontal Angle of View 1 1/8" Format 16.0°
    Horizontal Angle of View 2/3" Format 19.5°
    Min. Object Distance 0.1 m
    Back Focal Length 12.1 mm
    Filter Size 30.5 P=0.5 mm
    Dimensions φ32.0×38.0 mm
    Weight 63 g
    Comments Focus & Iris lock screws
