OPTOWL FL-CC2514-2M | 2/3" 2MP 25 mm Manual Iris Lens

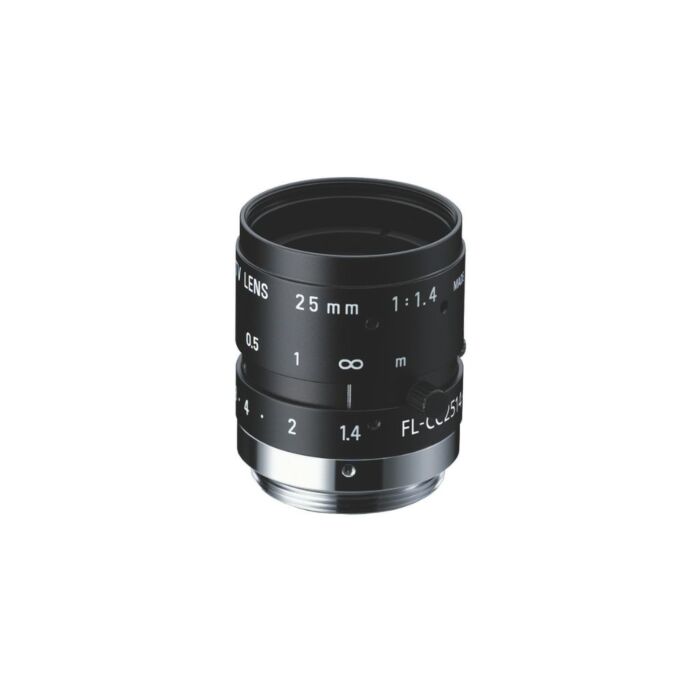

RICOH FL-CC2514-2M 2/3" 25MM F1.4 Manual Iris C-Mount Lens – Optimal for 2 Megapixel Imaging
The RICOH FL-CC2514-2M 2/3" 25mm F1.4 Manual Iris C-Mount Lens is engineered to deliver superior image quality and precision for various imaging applications. Designed with a 2-megapixel rating, this high-performance lens is ideal for capturing detailed and accurate data in demanding environments. With a focal length of 25mm and a fast aperture of F1.4, the FL-CC2514-2M excels in low-light conditions, providing bright and clear images that enhance your imaging system’s overall performance.
Built to accommodate sensors up to 2/3" CCD, this lens ensures compatibility with a wide range of cameras, making it a versatile choice for numerous applications. The manual iris and focus mechanisms, complete with locking screws, offer precise control over image quality, allowing users to fine-tune settings for optimal performance. The lens’s Minimum Object Distance (MOD) of 250mm ensures that it can capture detailed images from a considerable distance, further expanding its usability.
Features:
- Sensor size up to 2/3"-CCD
- Focal length 25 mmm
- Aperture F1.4
- MOD 250 mm
- Filter thread M27 x 0.5
- Dimension (DxL): 32 mm x 29.5 mm
- Weight: 55 g
- Camera mount C-Mount
- Aperture and focus with locking screws
Applications:
- Machine Vision
- Defect Detection
- Manufacturing
| Format Size | 2/3, 1/1.8, 1/2, 1/3" format |
| Focal Length | 25 mm |
| Maximum aperture ratio | 1：1.4 |
| Iris Range | 1.4～16 |
| Mount | C |
| Horizontal Angle of View 1/3" Format | 11.0° |
| Horizontal Angle of View 1/2" Format | 14.6° |
| Horizontal Angle of View 1 1/8" Format | 16.4° |
| Horizontal Angle of View 2/3" Format | 20.0° |
| Min. Object Distance | 0.25 m |
| Back Focal Length | 11.50 mm |
| Filter Size | 27 P=0.5 mm |
| Dimensions | φ29.5×32 mm |
| Weight | 55 g |
| Comments | Focus & Iris lock screws |
