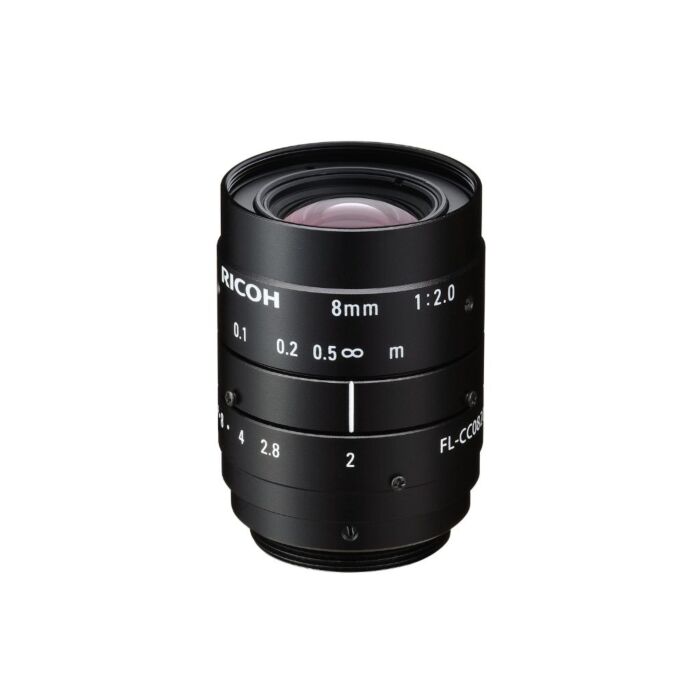

RICOH FL-CC0820-5MX (FLCC08205MX) Five Megapixel 8mm Wide-Angle Focal Length FA Lens
Perfect for inspection and visual sensor applications, the High-Resolution, High-Contrast images can be acquired over a Wider Area and at Closer Working Distances
SKU
FL-CC0820-5MX-Ricoh-SP
The new lenses feature a 8mm compact design. Despite their 5 Megapixel high resolution, their size allows a high degree of freedom incorporating them into a wide range of equipment positions.
Features:
Applications:
| Resolution | over 5 Mega-Pixel | |
| Format size | 2/3" format | |
| Focal length | 8mm | |
| Maximum aperture ratio | 1:2.0 | |
| Iris range | 2.0～16 | |
| Mount | C | |
| Horizontal angle of view |
1/3" format | 33.6° |
| 1/2" format | 44.0° | |
| 1/1.8" format | 49.0° | |
| 2/3" format | 58.5° | |
| Minimum object distance | 0.1m | |
| Back focal length | 13.0mm | |
| Filter size | 30.5 P=0.5mm | |
| Dimensions | φ33×43mm | |
| Weight | 78g | |
| Remarks | Focus & Iris lock screw | |
