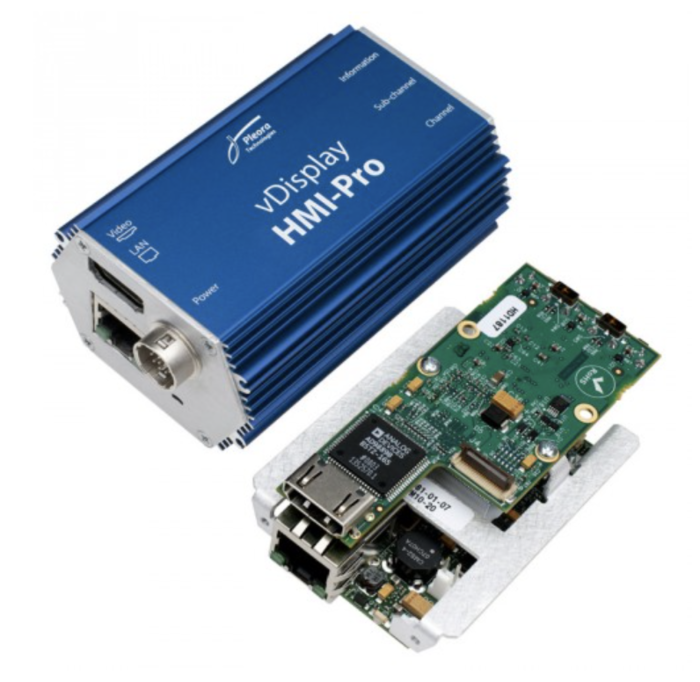

Pleora vDisplay HDI-Pro (930-1001) GigE Converter Cased and Board Image

Pleora vDisplay HDI-Pro (930-1001) External Frame Grabber

Pleora eBUS SDK (990-1024) Software Demo On Computer Screen

Pleora eBUS SDK (990-1024) Software Development Kit Seat License

Pleora vDisplay HDI-Pro (930-1002) External Frame Grabber With Development Kit

Enhance industrial imaging with Pleora's vDisplay HDI-Pro Frame Grabber. Reliable, low-power solution for real-time video transmission. Order now!
Pleora vDisplay HDI-Pro (930-1002)

Revolutionize Industrial Imaging with Pleora vDisplay HDI-Pro Frame Grabber

Enhance your industrial imaging solutions with the Pleora vDisplay HDI-Pro External Frame Grabber and Development Kit (930-1002). This innovative kit includes the vDisplay HDI-Pro, a bracket with mounting screws, power supply, and eBUS SDK USB stick, providing everything you need for seamless integration. Pleora's expertise in frame grabbers shines through with the vDisplay HDI-Pro, offering a compact, low-power alternative to PCs at display monitors.

The vDisplay HDI-Pro ensures reliable performance and reduced power consumption, crucial for industrial applications where size, weight, power, and reliability are paramount. It effortlessly receives video data from GigE Vision compliant cameras and delivers it in real-time with low, consistent latency over an HDMI/DVI interface. With the ability to pre-configure video reception from up to 32 cameras via unicast or multicast transmission, and autonomous control of up to eight cameras, it offers unparalleled flexibility and efficiency.


  • Compact, solid-state design
  • Real-time video transmission
  • Low latency over HDMI/DVI
  • Pre-configurable for up to 32 cameras
  • Autonomous control of up to eight cameras


  • Manufacturing quality control
  • Robotics guidance systems
  • Automated inspection
  • Surveillance and security
  • Medical imaging

Key Functionality

•Highly reliable, 1 Gb/s data reception rate with low latency
•Converts IP packets to HDMI/DVI-compatible video signals
•Available as enclosed unit or OEM board set

Camera Type Support

•Area scan and linescan
•Other camera types (Camera Link®, Analog, LVDS, etc) can be used in combination with a GigE Vision® compliant IP engine
•Supports Bayer, RGB, YUV, and monochrome pixel formats
•GenICam™ compliant

Monitor Support

•Interoperates with VESA compliant single link monitors

•Auto-senses monitor display capabilities

•Can interoperate with custom displays by manually configuring display timing parameters


•12-pin Hirose (HR10A-10R-12PB)



Video output


Setup and advanced configuration

•Via eBUS™ SDK or any GenICam compliant application

•Settings can be stored in persistent memory

•Plug-and-play autonomous control of GigE Vision compliant camera


•10/100/1000 Mb/s

•IEEE 802.3 (Ethernet), IPv4, IGMPv2, UDP, ICMP (ping), DHCP, and jumbo packets

•Long reach: 100 m point-to-point, further with Ethernet switches or fiber

GigE Vision Protocol

•GigE Vision Streaming Protocol (GVSP)

•GigE Vision Control Protocol (GVCP)

Size (L x W x H)

•Enclosed unit: 81 mm X 59 mm X 40 mm

•OEM board set: 81 mm X 51 mm X 26 mm

Operating temperature

•Enclosed unit: 0°C to 55°C

•OEM board set: 0°C to 44°C

Storage temperature

•-40°C to 85°C

Power Supply

•5 V to 16 V

Power Consumption

•3 W to 4.3 W (temperature and input voltage dependent)




•vDisplay HDI-Pro External Frame Grabber enclosed product


•vDisplay HDI-Pro External Frame Grabber Evaluation Kit, containing 930-1001 and power supply
