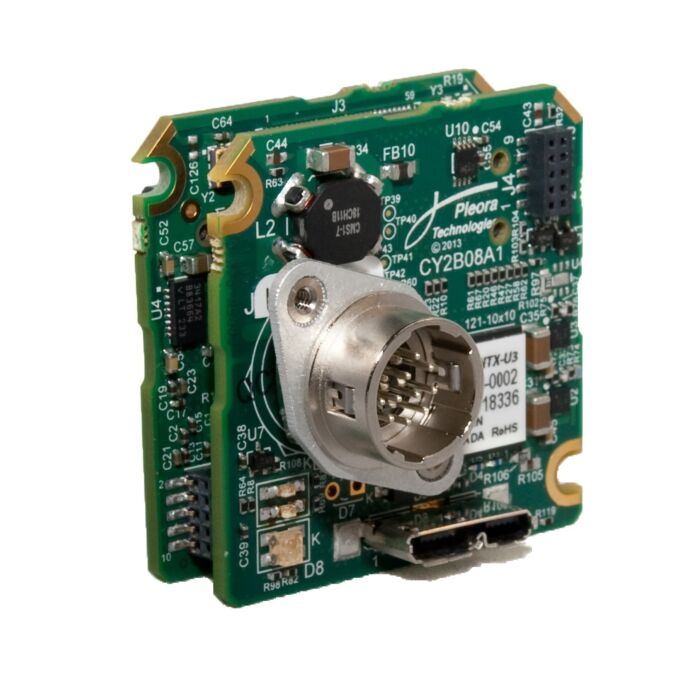

Pleora iPORT NTx-U3 (903-0005) External Powered Embedded Video Interface
Enhance Industrial Vision with Pleora iPORT NTx-U3
Elevate your industrial and machine vision systems with the Pleora iPORT NTx-U3 External Powered Embedded Video Interface. This innovative hardware seamlessly integrates USB3 Vision connectivity into cameras and imaging systems, offering high-performance data throughput of up to 3 Gbps. By employing advanced packetization technology, the iPORT NTx-U3 ensures low and consistent latency, guaranteeing reliable transmission of packetized video over a USB 3.0 link to receiving software. Supported by Pleora’s comprehensive eBUS SDK, designers can rapidly prototype and deploy production-ready software, enabling smooth integration with GigE, 10 GigE, and USB 3.0 interfaces through a unified API.
The Pleora iPORT NTx-U3 is a game-changer in the industrial and machine vision landscape. It empowers users to achieve enhanced flexibility, speed, and efficiency in their applications. Whether it's automated inspection systems, robotics, quality control in manufacturing, medical imaging, or surveillance and security systems, the iPORT NTx-U3 delivers unparalleled performance and reliability. Experience the future of industrial vision with Pleora iPORT NTx-U3 and unlock new possibilities for your vision applications.
Features:
- Seamless integration of USB3 Vision
- High-performance data throughput up to 3 Gbps
- Low and consistent latency
- Supported by Pleora’s eBUS SDK
- Unified API for multiple interface support
Applications:
- Automated inspection systems
- Robotics and automation
- Quality control in manufacturing
- Medical imaging
- Surveillance and security systems
|
User Circuitry Interface |
100-pin Samtec Connector: LSHM-150-04.0-L-DV-A-N-TR |
|
External Interface |
12-pin Hirose Connector: HR10A-10P-12P(73) |
|
USB 3.0 Interface |
10-pin USB 3.0 Micro-B receptacle |
|
USB 3.0 Controller |
Cypress FX3 |
|
FPGA |
Altera Cyclone V |
|
Image Buffer |
120 Mb 16-bit wide DDR3 |
|
Persistent Memory |
128 Mb Serial FLASH |
|
Clock Generator |
Included |
|
JTAG Header |
Connection to FPGA |
|
Video Input |
2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Inputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Outputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Camera Control Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 connections routed to User Circuitry Interface |
|
GPIO Outputs |
3 connections routed to User Circuitry Interface |
|
Serial Communications Input |
Connection routed to User Circuitry Interface |
|
Serial Communications Output |
Connection routed to User Circuitry Interface |
|
Number of Channels |
1 |
|
Scan Modes |
Area Scan (Progressive) and Line Scan |
|
Pixel Depth (bits) |
8, 10, 12, 14, 16, 24, 32 |
|
Pixel Clock |
|
|
Taps per Data Channel |
Up to 4 |
|
Image Width (pixels) |
|
|
Image Height (pixels) |
|
|
Windowing/Region of Interest |
Yes |
|
Tap Reconstruction |
Interleaved only |
|
Size |
37.0 mm x 37.0 mm x 23.1 mm (approximate, excluding external interface connector) |
|
Weight |
25 grams |
|
Operating Temperature |
|
|
Storage Temperature |
-40°C to 85°C |
|
Power Supply |
|
|
Power Consumption |
Less than 2 Watts when streaming at 3 Gbps |
|
MTBF at 40°C |
1,277,505 hours |
|
ORDERING INFORMATION |
|
|
900-0001 |
•iPORT NTx-U3 OEM Basic Board Set, USB-powered Without 12-pin circular connector |
|
900-0002 |
•iPORT NTx-U3 OEM Board Set, USB-powered Includes 12-pin circular connector, soldered on with metal flange |
|
900-0004 |
•iPORT NTx-U3 OEM Basic Board Set, external-powered Without 12-pin circular connector |
|
900-0005 |
•iPORT NTx-U3 OEM Board Set, external-powered Includes 12-pin circular connector, soldered on with metal flange |
|
900-0003 |
•iPORT NTx-U3 Development Kit, USB-powered Includes 903-0002, NTx-Mini adapter board with 3 flat flex cables, prober board, USB 3.0 cable, and eBUS SDK USB stick |
|
900-0006 |
•iPORT NTx-U3 Development Kit, external-powered Includes 903-0005, NTx-Mini adapter board with 3 flat flex cables, prober board, power supply, USB 3.0 cable, and eBUS SDK USB stick |
