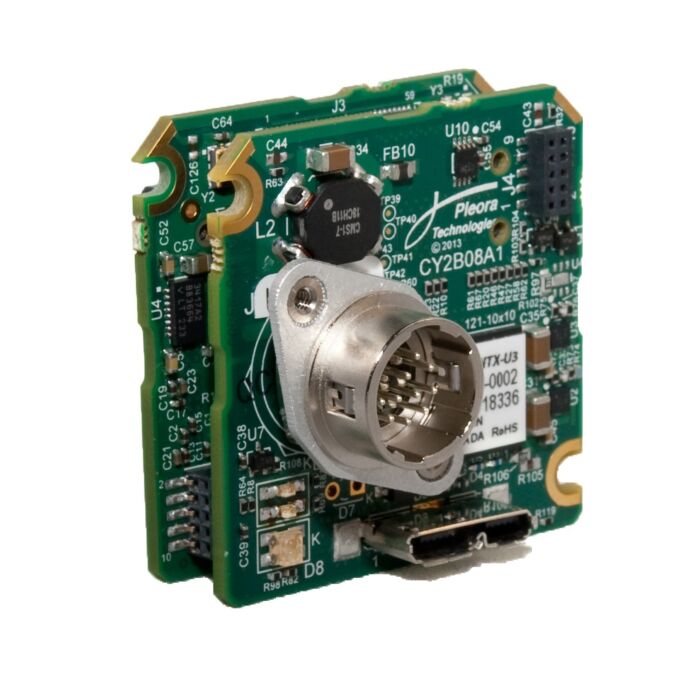

Pleora iPORT NTx-U3 (903-0004) External-Powered Embedded Video Interface OEM Basic Board Set
*Please note tariff fee is included in price*
Pleora iPORT NTx-U3 (903-0004) is an external-powered OEM basic board set that packetizes video for up to 3 Gbps USB 3.0 streaming with low, consistent latency—ideal for embedded machine vision and industrial imaging integration.
Pleora’s iPORT NTx-U3 (9030004) is an external-powered embedded video interface board set that adds high-performance USB 3.0 / USB3 Vision-style packetized video connectivity to industrial cameras and imaging systems. It converts incoming video to packets at up to 3 Gbps throughput while maintaining low, consistent latency—ideal for real-time machine vision streaming to host software over a USB 3.0 link.
Built around a Cypress FX3 USB 3.0 controller and Altera Cyclone V FPGA, the NTxU3 supports area scan and line scan, wide pixel depths (8–32 bit), ROI/windowing, and tap reconstruction (interleaved). Developers can accelerate integration using Pleora’s eBUS™ SDK, leveraging a consistent API approach across GigE, 10GigE, and USB 3.0 workflows for faster prototyping and production deployment.
User Circuitry Interface | 100-pin Samtec Connector: LSHM-150-04.0-L-DV-A-N-TR |
External Interface | 12-pin Hirose Connector: HR10A-10P-12P(73) |
USB 3.0 Interface | 10-pin USB 3.0 Micro-B receptacle |
USB 3.0 Controller | Cypress FX3 |
FPGA | Altera Cyclone V |
Image Buffer | 120 Mb 16-bit wide DDR3 |
Persistent Memory | 128 Mb Serial FLASH |
Clock Generator | Included |
JTAG Header | Connection to FPGA |
Video Input | 2.5 V LVTTL/LVCMOS |
GPIO Inputs | 4 x 2.5 V LVTTL/LVCMOS |
GPIO Outputs | 4 x 2.5 V LVTTL/LVCMOS |
Serial (Bulk) Inputs* | 3 x 2.5 V LVTTL/LVCMOS |
Serial (Bulk) Outputs* | 3 x 2.5 V LVTTL/LVCMOS |
Camera Control Outputs | 4 x 2.5 V LVTTL/LVCMOS |
GPIO Inputs | 4 connections routed to User Circuitry Interface |
GPIO Outputs | 3 connections routed to User Circuitry Interface |
Serial Communications Input | Connection routed to User Circuitry Interface |
Serial Communications Output | Connection routed to User Circuitry Interface |
Number of Channels | 1 |
Scan Modes | Area Scan (Progressive) and Line Scan |
Pixel Depth (bits) | 8, 10, 12, 14, 16, 24, 32 |
Pixel Clock |
|
Taps per Data Channel | Up to 4 |
Image Width (pixels) |
|
Image Height (pixels) |
|
Windowing/Region of Interest | Yes |
Tap Reconstruction | Interleaved only |
Size | 37.0 mm x 37.0 mm x 23.1 mm (approximate, excluding external interface connector) |
Weight | 25 grams |
Operating Temperature |
|
Storage Temperature | -40°C to 85°C |
Power Supply |
|
Power Consumption | Less than 2 Watts when streaming at 3 Gbps |
MTBF at 40°C | 1,277,505 hours |
ORDERING INFORMATION | |
900-0001 | •iPORT NTx-U3 OEM Basic Board Set, USB-powered Without 12-pin circular connector |
900-0002 | •iPORT NTx-U3 OEM Board Set, USB-powered Includes 12-pin circular connector, soldered on with metal flange |
900-0004 | •iPORT NTx-U3 OEM Basic Board Set, external-powered Without 12-pin circular connector |
900-0005 | •iPORT NTx-U3 OEM Board Set, external-powered Includes 12-pin circular connector, soldered on with metal flange |
900-0003 | •iPORT NTx-U3 Development Kit, USB-powered Includes 903-0002, NTx-Mini adapter board with 3 flat flex cables, prober board, USB 3.0 cable, and eBUS SDK USB stick |
900-0006 | •iPORT NTx-U3 Development Kit, external-powered Includes 903-0005, NTx-Mini adapter board with 3 flat flex cables, prober board, power supply, USB 3.0 cable, and eBUS SDK USB stick |
