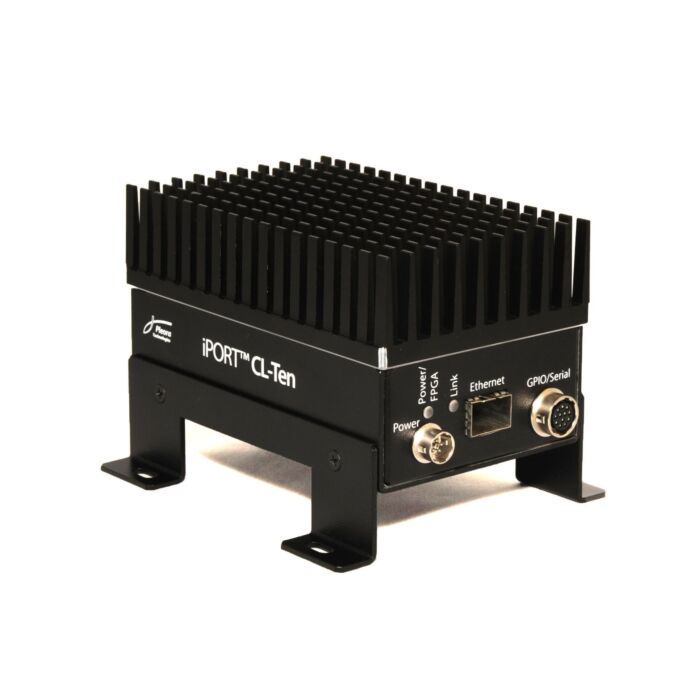

Pleora iPORT CL-Ten Full Fiber Frame Grabber Dev Kit (905-0009)

The Pleora iPORT CL-Ten Full Fiber Frame Grabber Dev Kit (905-0009) delivers high-throughput, low-latency GigE Vision® 2.0 connectivity for Camera Link® Full, Medium, and Base cameras via a robust 10 Gigabit Ethernet (10 GigE) interface. Supporting data rates up to 8.16 Gb/s, it enables real-time transmission of high-resolution video from sensors operating up to 80-bit (Deca) mode at up to 85 MHz, ideal for mission-critical imaging environments. This enclosed solution supports Power over Camera Link (PoCL), minimizing cabling complexity, and features full compatibility with GenICam™ and CLProtocol standards. Integrated RS-232, UART, and GPIO interfaces enable synchronized control of peripherals and trigger systems.

The kit includes the CL-Ten Full frame grabber (905-0008), dual SFP+ fiber modules, 10 GigE NIC, 2-meter fiber optic cabling, power supply, and Pleora’s cross-platform eBUS™ SDK, allowing unified software development across Windows, Linux, and macOS. With built-in IEEE 1588 Precision Time Protocol, a powerful programmable logic controller (PLC), and support for multi-camera synchronization, this solution excels in high-speed machine vision, line scan imaging, and distributed acquisition systems. Engineered for industrial deployments, the CL-Ten operates from 0°C to 70°C, features a compact footprint (125.4 mm x 100 mm x 71.7 mm), and delivers exceptional MTBF reliability at over 731,000 hours.

Features:

• Supports Camera Link Full (including Deca/80-bit), Medium, and Base at up to 85 MHz
• Data transmission over 10 GigE with up to 8.16 Gb/s throughput
• Ultra-low, consistent latency for real-time imaging
• Power over Camera Link (PoCL) support
• GenICam and CLProtocol compliant
• Built-in programmable logic controller (PLC) with TTL I/O
• RS-232, UART, and GPIO interfaces
• IEEE 1588 PTP and Scheduled Action Command support
• Compatible with 10GBASE-SR/LR/LRM via dual SFP+ modules
• Includes eBUS SDK (Windows, macOS, Linux) with a unified API
• Enclosed, mountable chassis for industrial environments
• Compact dimensions: 125.4 mm x 100 mm x 71.7 mm
• Operational temp: 0°C to 70°C; MTBF >731,000 hours

Applications:

• Machine vision and industrial automation
• High-speed inspection systems
• Semiconductor and electronics inspection
• Aerial and defense imaging systems
• Remote sensing and surveillance
• Centralized processing centers
• Robotics and autonomous systems
• Distributed multi-camera networks
