Pleora iPORT CL-Ten Dual Medium Fiber Frame Grabber Dev Kit (905-0003)

Name: Pleora iPORT CL-Ten Dual Medium Fiber Frame Grabber Dev Kit (905-0003)
SKU: iPORT CL-Ten Dual 905-0003
Price: 6250.00 USD
Availability: InStock

SKU

iPORT CL-Ten Dual 905-0003

$6,250.00

Quick Overview

*Please note tariff fee is included in price*

High-performance 10 GigE frame grabber kit for dual Camera Link Medium/Base cameras. Includes PoCL, RS-232, GPIO, IEEE 1588 sync, SFP+ fiber modules, eBUS SDK & NIC. Industrial mountable enclosure with ultra-low latency and multi-platform support.

Overview

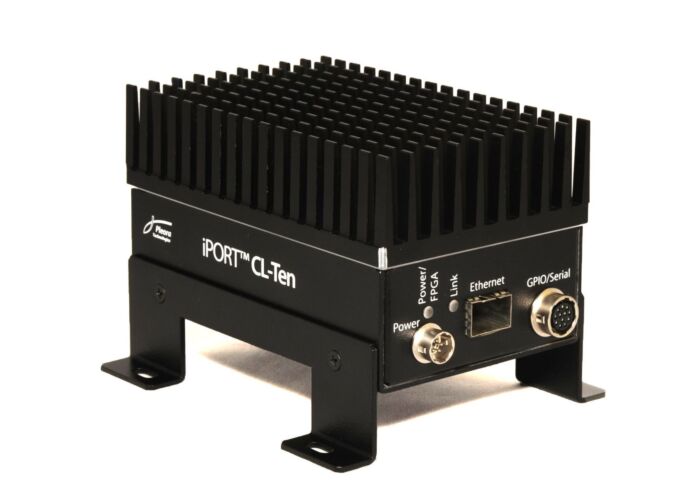

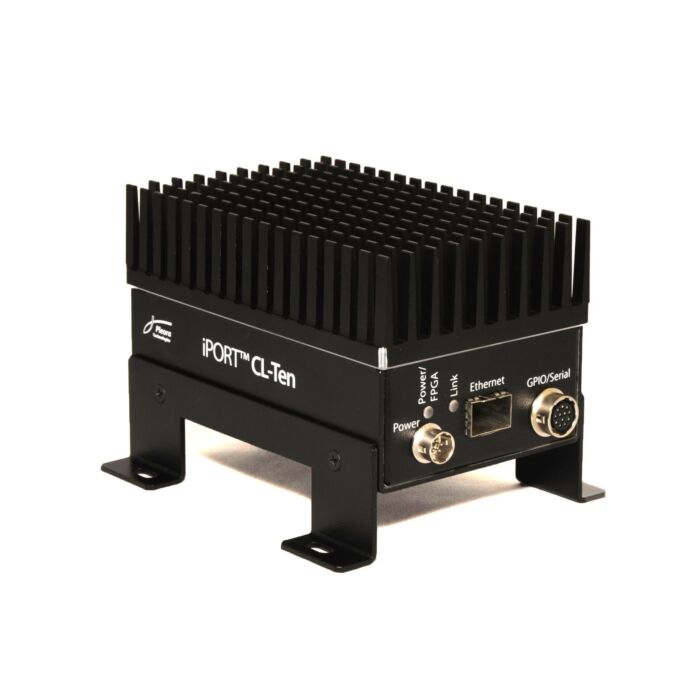

The Pleora iPORT CL-Ten Dual Medium Fiber Development Kit (905-0003) enables real-time, high-bandwidth transmission of video from one or two Camera Link Base or Medium cameras over a 10 Gigabit Ethernet (10 GigE) fiber network with GigE Vision® 2.0 compliance. Housed in a rugged mountable enclosure, this external frame grabber eliminates the constraints of Camera Link cabling by converting high-speed video data into Ethernet packets, supporting transmission distances of several kilometers.

Engineered for industrial imaging systems, it supports Power over Camera Link (PoCL), RS-232, UART, and GPIO controls, as well as IEEE 1588 Precision Time Protocol for ultra-precise device synchronization. The onboard programmable logic controller (PLC) allows timing control, delayed triggers, rescaling, and counter functionality for real-time capture synchronization across complex vision systems.

This development kit includes the CL-Ten frame grabber (905-0001), dual SFP+ fiber modules, 2m fiber optic cabling, 10 GigE NIC, power supply, and Pleora’s eBUS™ SDK on USB, enabling rapid application development with a unified API for GigE, 10 GigE, and USB 3.0 systems across Windows, Linux, and macOS platforms.

Features:

Supports 1–2 Camera Link Base/Medium cameras at up to 85 MHz
Transmits uncompressed video over 10 GigE with low, deterministic latency
Fiber optic SFP+ modules for extended range transmission
Power over Camera Link (PoCL) support
IEEE 1588 Precision Time Protocol for time-sync across devices
Built-in programmable logic controller (PLC) for I/O and synchronization
4 TTL inputs, 2 TTL outputs, RS-232 and UART control interfaces
eBUS SDK with unified API for GigE, 10 GigE, and USB 3.0 platforms
Compatible with GenICam and GigE Vision 2.0 standards
Rugged, enclosed housing with wide operating temperature range

Applications:

Industrial inspection and automation
Scientific imaging and laboratory systems
Military and aerospace video systems
Medical diagnostic imaging
Machine vision and robotics
Remote vision monitoring and control centers

Specifications

Networked Video Connectivity Solutions
iPORT™ External Frame Grabbers	Highly reliable, up to 8.16 Gb/s data transfer rate with low, end-to-end latency Enclosed unit
eBUS SDK	eBUS SDK: Single API to receive video over GigE, 10 GigE, and USB that is portable across Windows, Mac, and Linux eBUS Tx: Software implementation of a full device level GigE Vision transmitter eBUS Rx: High-speed reception of images or data for hand-off to the end application eBUS Player Toolkit: View streams and develop, test and evaluate advanced features
GigE Vision® 2.0	Fully-compatible firmware load Guarantees delivery of all packets Comprehensive data transfer diagnostics
Camera Compatibility
Camera Link® cameras	iPORT CL-Ten Dual Medium compatible with Base and Medium mode cameras at up to 85 MHz iPORT CL-Ten Full compatible with Full (including Deca/80-bit) mode cameras at up to 85MHz Supports Power over Camera Link (PoCL) Supports CLProtocol
Tap Geometry	1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4, 2X2E, 1X8_1Y, 1X8, 1X10_1Y, 1X10
Connectors
Power	6-pin circular, male
Network	Supports 10GBASE-SR, -LR, and –LRM using linear or limiting SFP+ modules
Video interface	Miniature Camera Link® (MiniCL)
Inputs/Outputs and serial control interface	12-pin circular, female
Programmable Logic Controller Features
4 x TTL inputs 2 x TTL outputs	Provides a flexible, general-purpose interface Allows synchronization of multiple devices or system elements
Delayer, rescaler, general-purpose counter	Allows synchronized capture between multiple area and line scan cameras Allows camera acquisition to track changing speeds on conveyor belts and webs
IEEE 1588	Synchronized triggering of multiple network devices via IEEE 1588 Precision Time Protocol and Scheduled Action Command
UART and RS-232 serial links	Serial control of camera and other devices via PC application over the GigE link
Characteristics
Size (L x W x H)	125.4 mm x 100 mm x 83.5 mm (enclosed, CL-Ten Dual Medium) 125.4 mm x 100 mm x 71.7 mm (enclosed, CL-Ten Full)
Operating temperature	0°C to 70°C (enclosed)*
Storage temperature	-40°C to 85°C
External power supply	12 V
Power consumption	11.5 W
MTBF @ 40°C	iPORT CL-Ten Dual Medium: 586 855 hours iPORT CL-Ten Full: 731 249 hours
ECCN	5A991.b.4.a
Networking Features
10 Gigabit Ethernet-based	Industry standard, easy-to-use equipment Supports IGMPv2 and ICMP Supports IEEE 1588 Precision Time Protocol
Multicast capability	Standards-based, IGMPv2 Enables advanced distributed processing and control architectures

Downloads

Pleora iPORT CL-Ten 905-0003 Spec Sheet
