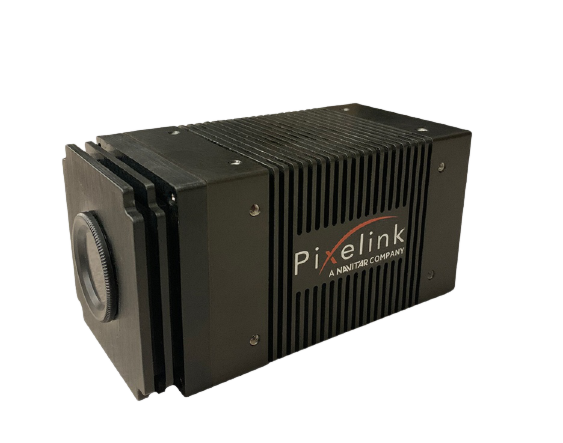

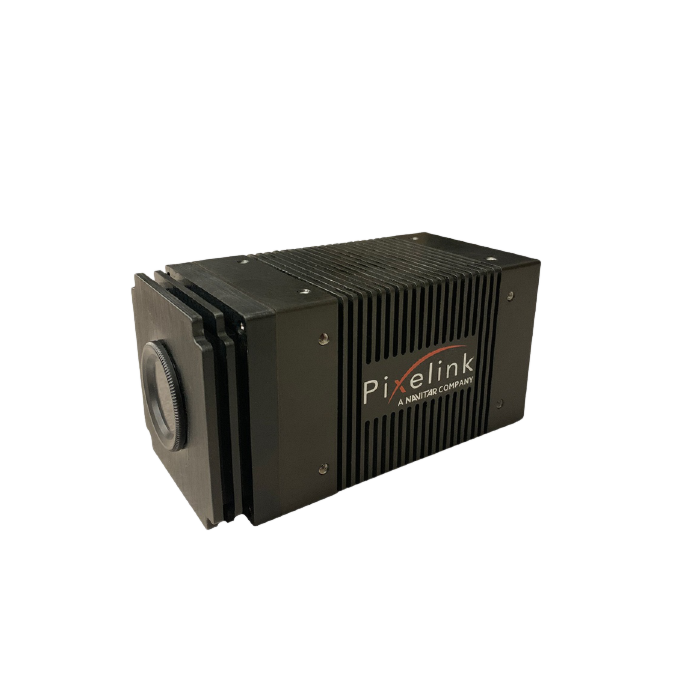

PixeLINK PL-X957MG-T 7 MP Enclosed Mono (Sony IMX420 Sensor) 10 GigE CMOS Camera with Trigger
The Pixelink PL-X957 camera, featuring the Sony IMX420 4th generation Pregius CMOS sensor, is ideal for high dynamic range imaging applications requiring high resolution, fast frame rates, and high quality, low noise images.
SKU
PixeLINK PL-X957MG-T 7 MP Mono 10 GigE CMOS Camera with Trigger
On the PL-X957CG-BL, a key feature of the IMX420 Sony sensor is a Dual ADC mode, where each pixel can be read out with two different gains when embedded. The PL-X957 combines the Dual ADC images into a single hybrid HDR image, directly on camera - thus removing the need for any host processing. Real time on camera HDR is an easy way for the user to gain 6-10dB of additional dynamic range on their image without taxing the CPU or requiring additional complex software algorithms.
Features:
- Dual ADC Mode
- High Quantum Efficiency
- Low Noise
- High Resolution
- 10 GigE
Applications:
-
Parts Inspection
-
Strength/Stress Testing
-
Scratch Inspection
-
Automated Inspection
-
Sports Analysis
-
Research
-
Broadcasting
-
3D Mapping
-
VR and AR Applications
-
Multi-camera Applications Requiring Synchronization
| Sensor | Sony IMX420 |
| Type | CMOS Global Shutter |
| Resolution | 7.1MP (3208 x 2200) |
| Pixel Pitch | 4.5μm x 4.55μm |
| Active Area | 17.6mm diagonal |
| FPN | <0.03% of signal |
| PRNU | <0.7% of signal |
| Dynamic Range | 72 dB |
| Bit-Depth | 8 or 12-BIT |
| Color Data Formats | Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422, RGB8 BGR 8 |
| Mono Data Formats | Mono 8, Mono 12 Packed & Mono 16 |
| Board Level Trigger Connector | 8-pin Molex 1.25mm pitch |
| Enclosed Trigger Connector | Hirose M12 (12-pin) |
| Trigger | Software and Hardware |
| Board Level Trigger Input | 1 input, 3.3V (with internal pullup resistor) |
| Enclosed Trigger Input | 1 optically Isolated, 5-12V DC at 4-11 mA |
| Board Level GPO/Strobe | 2 outputs, 3.3V |
| Enclosed GPO/Strobe | 1 optically isolated, 5-12V DC at 4-11 mA, 2 outputs, 3.3V |
| Board Level GPI Input | 1 input, 3.3V |
| Enclosed GPI Input | 1 optically isolated, 5-12V DC at 4-11mA |
| 10GBase-T Connector | M12 X-coded (8-pin) |
| Dimensions | 113 x 57 x 57 |
| Weight | 560 |
| Mounting | C-Mount |
| Voltage Required | 5V (from USB Type-C connector) 48V (802.3bt PoE) |
