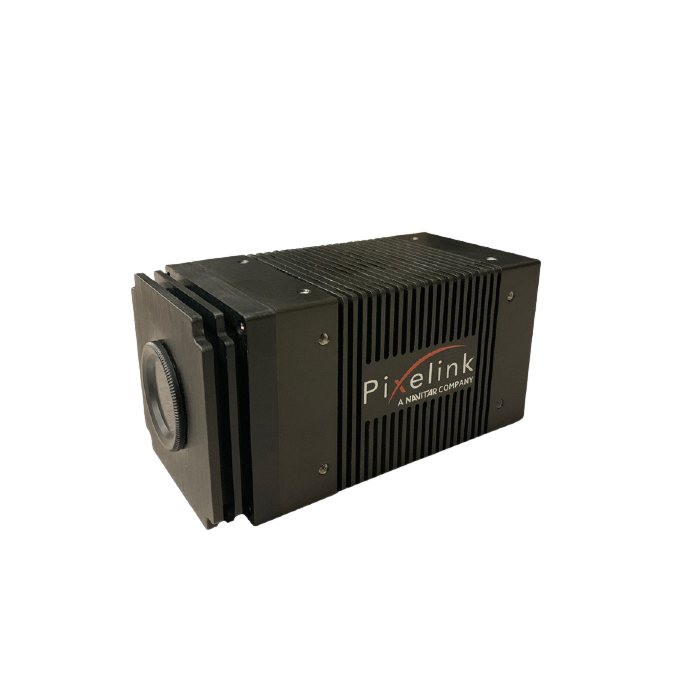

PixeLINK PL-X9520MG-BL 20 MP Board Level Color (Sony IMX531 Sensor) 10 GigE Camera
SKU
PixeLINK PL-X9520MG-BL 20 MP Board Level Color 10 GigE Camera
The PL-X9520 model incorporates the 20 MP IMX531 1.1” CMOS image sensor from Sony, with 4512 x 4512 resolution, 52 fps, and covering a 17.5 mm diagonal.
Features:
- 10X faster than GigE
- High bandwidth for high-speed imaging
- 10GBase-T interface
- Power over Ethernet (PoE)
- Trigger over Ethernet (ToE)
- IEEE1588 clock synchronization (PTP)
Applications:
- Precision Microscopy
- Defect and Scratch Inspection
- High Speed Inspection
- Factory Automation
- Image Recognition and Identification
- Speed, Traffic and Transportation
| Sensor | Sony IMX531 |
| Type | CMOS Global Shutter |
| Resolution | 20MP (4512 x 4512) |
| Pixel Pitch | 2.74μm x 2.74μm |
| Active Area | 17.5mm diagonal |
| FPN | <0.03% of signal |
| PRNU | <0.7% of signal |
| Dynamic Range | 72 dB |
| Bit-Depth | 8 or 12-BIT |
| Color Data Formats | Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422, RGB24 BGR 24 |
| Mono Data Formats | Mono 8, Mono 12 Packed & Mono 16 |
| Board Level Trigger Connector | 8-pin Molex 1.25mm pitch |
| Enclosed Trigger Connector | Hirose M12 (12-pin) |
| Trigger | Software and Hardware |
| Board Level Trigger Input | 1 input, 3.3V (with internal pullup resistor) |
| Enclosed Trigger Input | 1 optically Isolated, 5-12V DC at 4-11 mA |
| Board Level GPO/Strobe | 2 outputs, 3.3V |
| Enclosed GPO/Strobe | 1 optically isolated, 5-12V DC at 4-11 mA, 2 outputs, 3.3V |
| Board Level GPI Input | 1 input, 3.3V |
| Enclosed GPI Input | 1 optically isolated, 5-12V DC at 4-11mA |
| 10GBase-T Connector | M12 X-coded (8-pin) |
| Dimensions | 125 x 57 x 57 |
| Weight | 560 |
| Mounting | C-Mount |
| Voltage Required | 5V (from USB Type-C connector) 48V (802.3bt PoE) |
