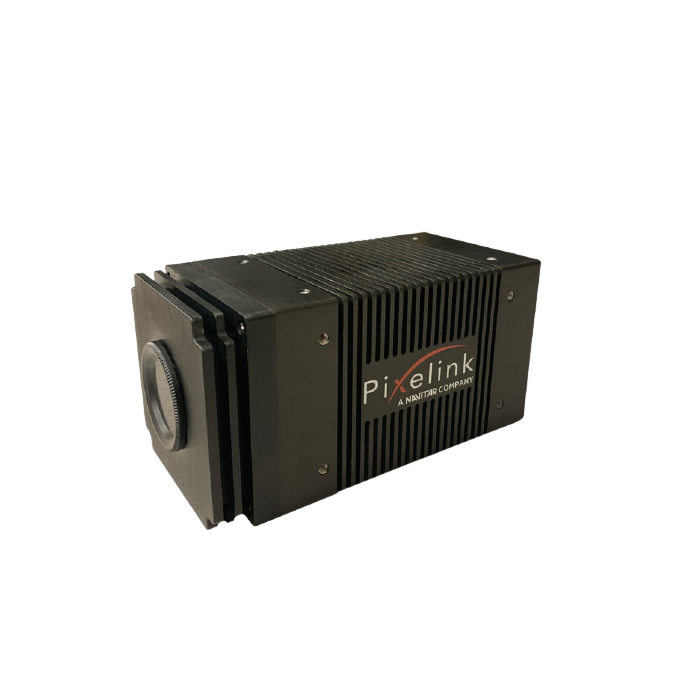

The Pixelink PL-X9512 12.3 MP model features the Sony Pregius IMX253 CMOS image sensor with global shutter.
SKU
PixeLINK PL-X9512MG-T 12.3 MP Board Level CMOS Camera w/ Trigger

The PL-X family of high performance machine vision cameras, with 10 Gigabit ethernet offers speed, accuracy and reliability in a quick and easy set-up. Its 10GBase-T interface and packet resend capability provide high quality, reliable image transfer at cable lengths of up to 100m on CAT6A. Additional features include Power over Ethernet (PoE )and IEEE1588 clock synchronization.

Features:

  • 12.3MP CMOS
  • 64.6 Frames Per Sec.
  • 17.6mm
  • 1.1" Sensor Size


Applications:

  • Automated Inspection
  • Sports analysis
  • VR and AR applications
  • Broadcasting
  • 3D mapping
  • Research
  • Multi-camera applications requiring synchronization
Sensor Sony IMX253
Type CMOS Global Shutter
Resolution 12.3MP (4096 x 3000)
Pixel Pitch 3.45μm x 3.45μm
Active Area 17.6mm diagonal
FPN <0.03% of signal
PRNU  <0.4% of signal
Dynamic Range 70 dB
Bit-Depth 8 or 12-BIT
Color Data Formats Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422, RGB8 BGR 8
Mono Data Formats Mono 8, Mono 12 Packed & Mono 16
Board Level Trigger Connector 8-pin Molex 1.25mm pitch
Enclosed Trigger Connector Hirose M12 (12-pin)
Trigger Software and Hardware
Board Level Trigger Input 1 input, 3.3V (with internal pullup resistor)
Enclosed Trigger Input 1 optically Isolated, 5-12V DC at 4-11 mA
Board Level GPO/Strobe 2 outputs, 3.3V
Enclosed GPO/Strobe 1 optically isolated, 5-12V DC at 4-11 mA, 2 outputs, 3.3V
Board Level GPI Input 1 input, 3.3V
Enclosed GPI Input 1 optically isolated, 5-12V DC at 4-11mA
10GBase-T Connector M12 X-coded (8-pin)
Dimensions 113 x 57 x 57
Weight TBD
Mounting C-Mount
Voltage Required 5V (from USB Type-C connector)
48V (802.3bt PoE)
