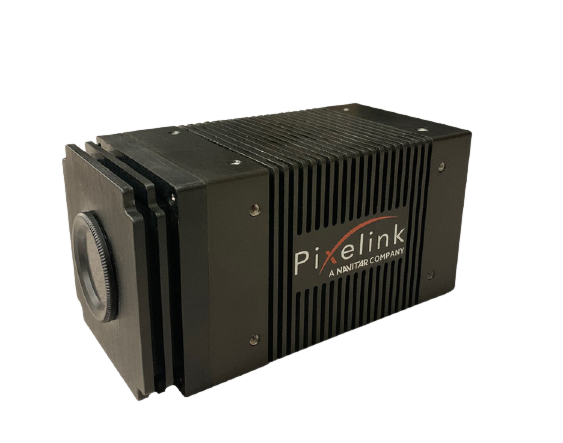

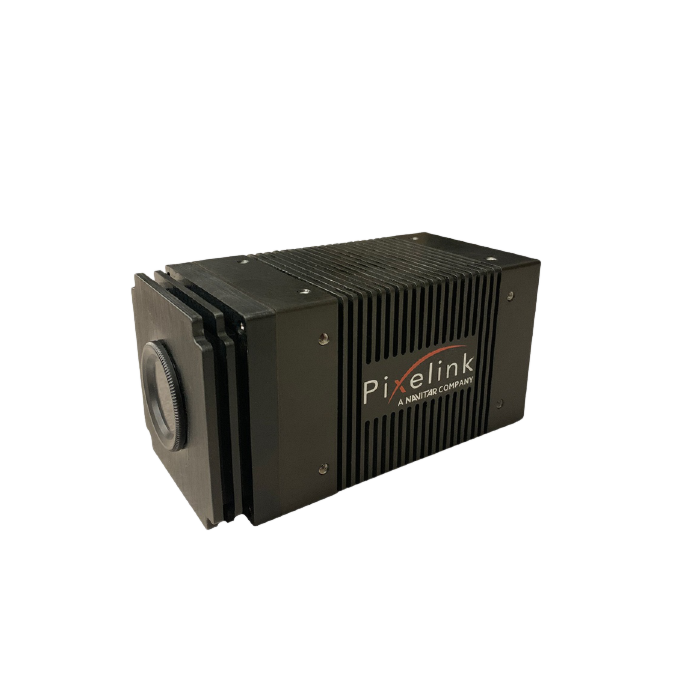

PixeLINK PL-X9512CG-T 12.3 MP Board Level Color (Sony IMX253 Sensor) 10 GigE CMOS Camera w/ Trigger
The Pixelink PL-X9512 12.3 MP model features the Sony Pregius IMX253 CMOS image sensor with global shutter.
SKU
PixeLINK PL-X9512CG-T 12.3 MP Board Level CMOS Camera w/ Trigger
The PL-X family of high performance machine vision cameras, with 10 Gigabit ethernet offers speed, accuracy and reliability in a quick and easy set-up. Its 10GBase-T interface and packet resend capability provide high quality, reliable image transfer at cable lengths of up to 100m on CAT6A. Additional features include Power over Ethernet (PoE )and IEEE1588 clock synchronization.
Features:
- 12.3MP CMOS
- 64.6 Frames Per Sec.
- 17.6mm
- 1.1" Sensor Size
Applications:
- Automated Inspection
- Sports analysis
- VR and AR applications
- Broadcasting
- 3D mapping
- Research
- Multi-camera applications requiring synchronization
| Sensor | Sony IMX253 |
| Type | CMOS Global Shutter |
| Resolution | 12.3MP (4096 x 3000) |
| Pixel Pitch | 3.45μm x 3.45μm |
| Active Area | 17.6mm diagonal |
| FPN | <0.03% of signal |
| PRNU | <0.4% of signal |
| Dynamic Range | 70 dB |
| Bit-Depth | 8 or 12-BIT |
| Color Data Formats | Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422, RGB8 BGR 8 |
| Mono Data Formats | Mono 8, Mono 12 Packed & Mono 16 |
| Board Level Trigger Connector | 8-pin Molex 1.25mm pitch |
| Enclosed Trigger Connector | Hirose M12 (12-pin) |
| Trigger | Software and Hardware |
| Board Level Trigger Input | 1 input, 3.3V (with internal pullup resistor) |
| Enclosed Trigger Input | 1 optically Isolated, 5-12V DC at 4-11 mA |
| Board Level GPO/Strobe | 2 outputs, 3.3V |
| Enclosed GPO/Strobe | 1 optically isolated, 5-12V DC at 4-11 mA, 2 outputs, 3.3V |
| Board Level GPI Input | 1 input, 3.3V |
| Enclosed GPI Input | 1 optically isolated, 5-12V DC at 4-11mA |
| 10GBase-T Connector | M12 X-coded (8-pin) |
| Dimensions | 113 x 57 x 57 |
| Weight | TBD |
| Mounting | C-Mount |
| Voltage Required | 5V (from USB Type-C connector) 48V (802.3bt PoE) |
