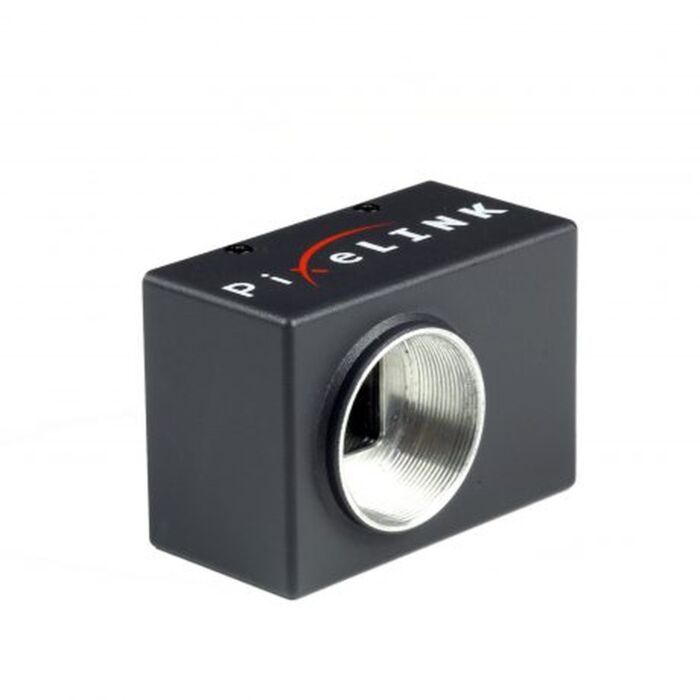

PixeLink PL-D7620 (PLD7620) CMOS USB 3.0 Camera (SONY IMX183) (Discontinued)
SKU
PixeLink PL-D7620 CMOS USB 3.0 Camera (SONY IMX183)
Quick Overview
*Product is Discontinued, Call For Replacement Options
The PL-D-7620 (PLD7620) is part of PixeLinks's PL-D family of cameras. These cameras feature the benefits of high frame rate CMOS technology with high-speed data throughput of USB 3.0 technology.
Available Configurations:
PL-D7620CU (Color USB)
PL-D7620CU-BL (Color USB Board Level)
PL-D7620CU-T (Color USB Trigger)
PL-D7620MU (Mono USB)
PL-D7620MU-BL (Mono USB Board Level)
PL-D7620MU-T (Mono USB Trigger)
The PL-D7620 camera provides low-noise images for an outstanding value for a broad range of industrial applications.
Features:
Applications:
| Sensor | IMX183 |
| Type | Rolling Shutter |
| Resolution | 20MP (5472 x 3648) |
| Pixel Pitch | 2.4°m x 2.4°m |
| Active Area | 15.86mm diagonal |
| FPN | <0.02% of signal |
| PRNU | <1% of signal |
| Dynamic Range | 73.6 dB |
| Bit-Depth | 12-BIT |
| Interface | USB 3.0 | Micro-B | 5Gbps |
| Dimensions | 55 x 38.5 x30.29 |
| Weight | 35.8 (Board Level no optics) |
| Power | 5V (DC) through USB Connector |
