PixeLINK PL-D722 Series 2.3MP USB 3.0 Machine Vision Camera | 1920×1200 Global Shutter | ON Semiconductor VITA 2000 | Liquid Lens Autofocus
*In Stock Now Only 1 Left
The PL-D72 model of cameras are based on a 2 ON Semiconductor global shutter CMOS sensor with a ” 2/3 optical format. The extensive built-in image processing possibilities (image pre-processing) result in outstanding image quality, less load on the system and higher performance.
PL-D722 Series Configuration Codes
C – Color F – Firewire BL – Board Level
AF - Autofocus Lens (in mm) M – Mono
G – GigE T – Trigger
AFE - Edmund Optics Autofocus Lens (in mm)
NIR – Near Infrared U – USB
CYL - Cylindrical case

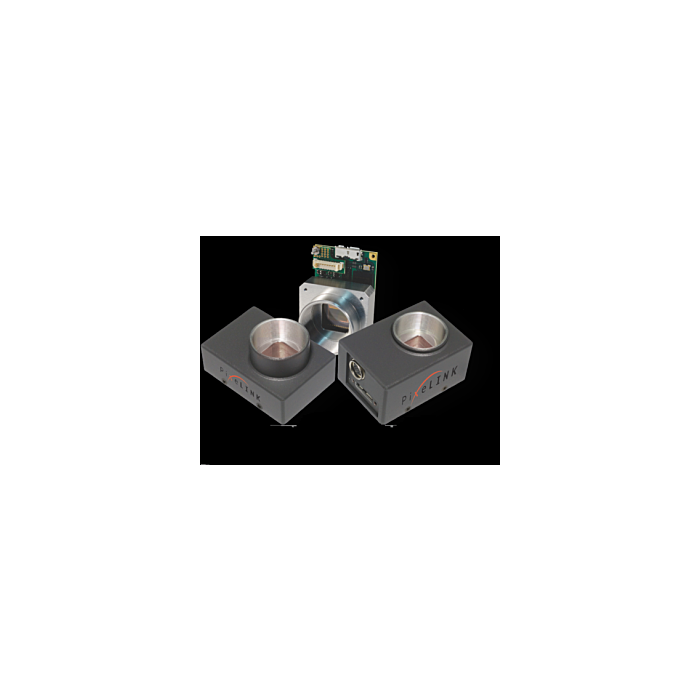

The PixeLINK PL-D722 Series USB 3.0 machine vision cameras combine the speed of modern CMOS global shutter sensors with the high-bandwidth performance of USB 3.0 connectivity. Built around the ON Semiconductor VITA 2000 sensor, the PL-D722 delivers 1920 × 1200 resolution with frame rates up to 92 fps, making it ideal for high-speed industrial imaging and precision inspection tasks.
These cameras provide exceptional image quality with low noise, high dynamic range, and accurate color reproduction, enabling reliable results across demanding machine vision and scientific imaging environments. The global shutter architecture eliminates motion distortion, ensuring accurate image capture for moving objects.
The PL-D722 series also supports VariOptic liquid lens autofocus options, allowing rapid electronic focus adjustment without mechanical movement. This capability is particularly valuable in automated inspection systems, robotics, and dynamic imaging environments where rapid refocusing improves efficiency and accuracy.
With support for color or monochrome imaging, programmable ROI control, hardware trigger inputs, and flexible I/O, the PL-D722 series integrates easily into a wide range of industrial automation, laboratory imaging, and embedded OEM vision systems.
Features:
- 2.3MP (1920 x 1200) Resolution
- CMOS Global Shutter
- Monochrome and Color
- 92 fps at full resolution
- AutoFocus Options with VariOptic lens
- USB 3.0
- Flexible Region of Interest (8 pixel H x 32 pixel W granularity)
- 1 trigger input, 2 general purpose outputs (3.3V)
Applications:
- Medical
- High performance security & surveillance applications
- Parts inspection
- Metrology and biometrics
- PCB and flat panel display inspection
| Sensor | ON Semiconductor Vita 2000 |
| Color Space | Color/Mono |
| Type | CMOS Global Shutter |
| Resolution | 2.3 MP (1920 x 1200) |
| Pixel PItch | 4.8 µm x 4.8 µm |
| Acttive Area | 10.87 mm diagonal |
| FPN | <1% of signal |
| PRNU | <2% of signal |
| Dynamic Range | 60 dB |
| Color Data Format | Bayer 8, Bayer 16 and YUV422 |
| Mono Data Formats | Mono 8 and Mono 16 |
| Dimensions | 32 x 48 x 11 (without lens mount) |
| Weight | 35.8 (without optics) |
| Mount | C-Mount and CS-Mount |
Configurations:
Color | Mono |
PL-D722CU |
PL-D722MU
|
