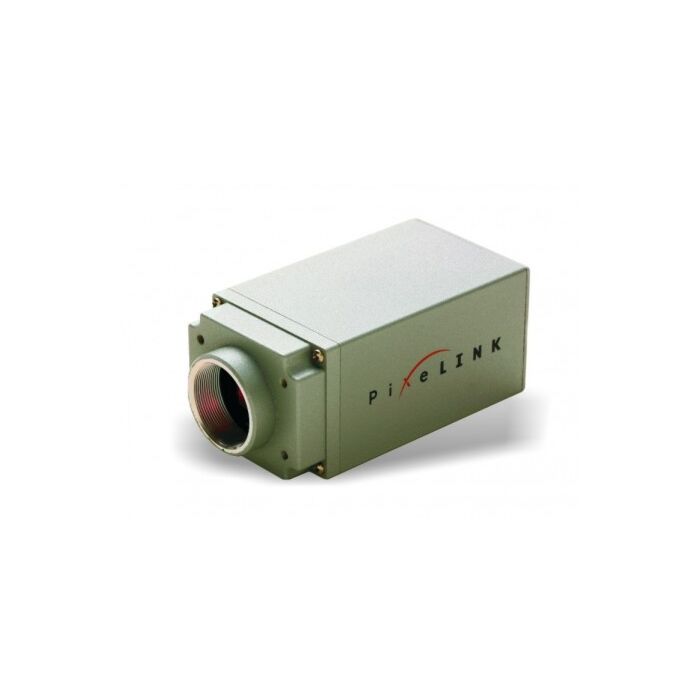

PixeLINK PL-B954 & PL-B955 (PLB954) (PLB955) Series 1.4MP 1392x1040 Resolution Machine Vision Cameras (Sony ICX205)
These high performance 1.4MP (1392 x 1040) resolution cameras are designed for a broad range of industrial imaging applications. The PLB955 monochrome camera and the PL-B954 color camera provide 10 frames per second in either 8-bit or 12-bit output modes.
These cameras are no longer available. Check out the PL-954H for the 954 Series replacements.
PL-B954 & 955 Series Configuration Codes
C – Color F – Firewire BL – Board Level
AF - Autofocus Lens (in mm) M – Mono
G – GigE T – Trigger
AFE - Edmund Optics Autofocus Lens (in mm)
NIR – Near Infrared U – USB
CYL - Cylindrical case
See Specs Below For All Configurations-
The PL-B954 & 955 cameras are suitable for a broad range of applications.
Features:
- Programmable LUT and FFC(Flat Field Correction)
- Defect pixel correction
- Bayer 8, Bayer 16 and YUV422 (color versions)
- Auto exposure and auto white balance
- Binning, Decimation and Averaging
- Image Flip and Image Rotate
- ROI (Region of Interest Readout)
- Saturation, sharpness and Brightness (color versions)
- Gain
- Gamma
- Color temperature
- Frame Rate control
Applications:
- Industrial inspection and automation
- Logistics
- Science and research
- Healthcare and medical (white housing available)
- Multimedia, entertainment and sports
- ITS (Intelligent traffic solutions)
| Sensor | Sony ICX205 |
| Color Space | Color/Mono |
| Resolution | 1392 x 1040 (1.4MP) |
| Pixel PItch | 4.65µm |
| Active Area | 7.60 mm x 6.20 mm - 7.96 mm diagonal |
| FPN | <0.3 % |
| PRNU | <2.5 % |
| Dynamic Range | Mono 60.9 dB - Color 61.9 dB |
| Color Data Format | Bayer 8, Bayer 16 and YUV422 |
| Dimensions | 118.75 x 50 x 41 mm (straight) 110 x 50 x 41 mm (right angle) |
| Weight | 238 g |
| Mount | C & CS-Mount, 1/3” optical format |
Configurations:
Color | Mono |
PL-B954F | PL-B955F |
