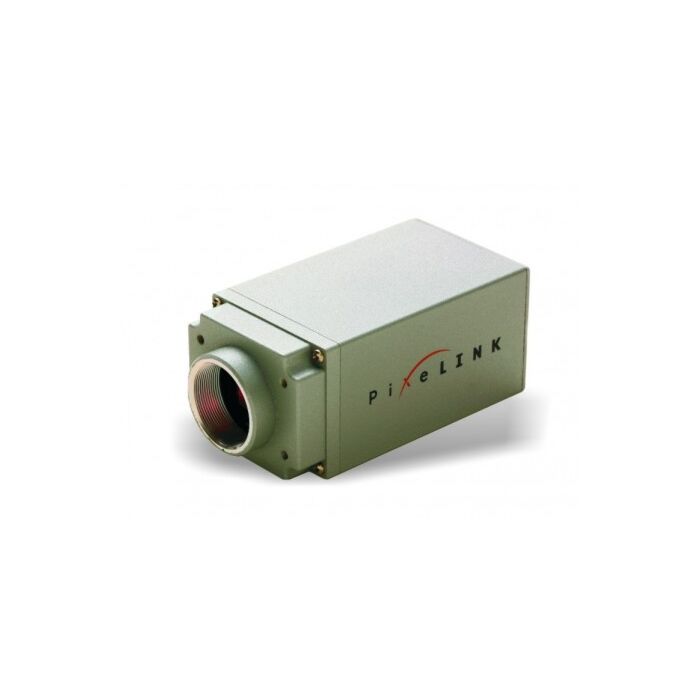

PixeLINK E-420 Series (E420) 1.3MP 1280x1040 -2594x1944 Resolution Microscopy Camera (Aptina MT9001 & MT9P031)
The PL-E420 series is a microscopy camera kit based on the Aptina MT9T001 & MT9P031 CMOS rolling shutter sensors with a 1/3” optical format.
Color Space µScope Version Housing
C – Color KIT Essentials Version BL – Board Level
M – Mono SE Standard Version T – Trigger
NIR – Near Infrared PRO - Professional Version CYL - Cylindrical case
F - Firewire G - GigE U - USB 2.0
See Specs Below For All Configurations-
These high performance low cost microscopy cameras are designed to capture highly detailed, publication quality images.
Features:
- PixeLINK µScope Essential included
- High quality Aptina sensor
- Broad range of applications
- Compact size
- Total camera control via software
- C or CS mount
Applications:
- Live Cell Imaging
- Academic and pharmaceutical research
- Clinical medicine
- Microbiology
- Genetics
- Metallurgy
| Sensor | Sony IMX253 |
| Color Space | Color/Mono |
| Type | CMOS Global Shutter |
| Resolution | 12.29 MP (4096 x 3000) |
| Pixel Pitch | 3.45 µm x 3.45 µm |
| Active Area | 17.6 mm diagonal |
| FNU | 0.03% |
| PRNU | 0.4% |
| Dynamic Range | 69.5 dB |
| Color Data Formats | YUV422, Bayer 8, Bayer 12 packed, Bayer 16 |
| Mono Data Formats | Mono 8, mono 12 packed and Mono 16 |
| Dimensions | 32 x 48 x 11 (without lens mount) |
| Weight | 35.8 (without optics) |
Configurations:
| Color | Mono |
| PL-E421CU PL-E421CU-KIT PL-E422CU PL-E422CU-KIT PL-E423CU PL-E423CU-KIT PL-E424CU PL-E424CU-KIT PL-E425CU PL-E425CU-KIT | PL-E421MU PL-E421MU-KIT |
