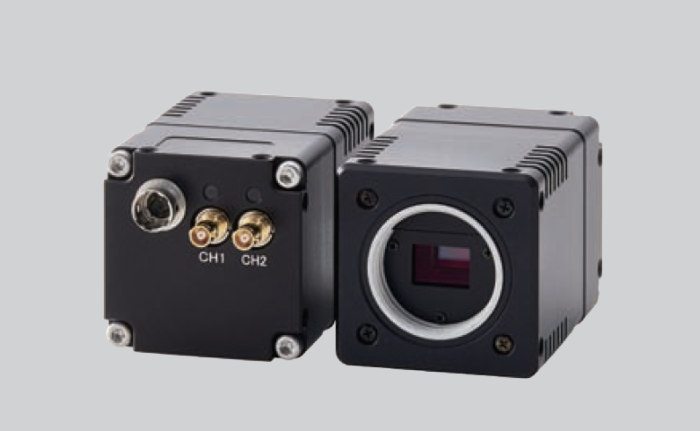

Omron STC-STS502CXP122 (STCSTS502CXP122) 1/1.8", RGB Prism Spectroscopic 3CMOS, Sony IMX548, 5.1 MP, CoaXPress, C Mount Area Scan Camera
The Omron STC-STS502CXP122 is a high-performance RGB Prism Spectroscopic Camera designed to provide precise color accuracy and high-speed imaging. Equipped with a 5.1 MP resolution, this advanced camera utilizes three CMOS chips, ensuring exceptional color reproduction and high dynamic range. Its RGB prism spectrography technology enables enhanced wavelength resolution and superior color saturation, making it ideal for applications in color-sensitive imaging and industrial inspections.
Featuring an area scan format, the STC-STS502CXP122 delivers high frame rates of up to 109.2 frames per second at a resolution of 2448 × 2048 pixels, making it well-suited for fast-moving or high-throughput environments. The camera operates with an advanced 1/1.8-inch sensor size, paired with the IMX548 sensor and a pixel size of 2.74 × 2.74 µm, ensuring sharp and detailed images.
The camera is equipped with a PoCXP (Power over CoaXPress) 2-lane CXP12 interface, providing efficient data transmission and simplifying cable management while supporting high-bandwidth data transfer for real-time performance. Ideal for precision applications that require accurate color measurement and high-speed imaging, the Omron STCSTS502CXP122 is a powerful tool for both industrial and scientific uses.
| Monochrome/Color | Color (3CMOS Prism RGB) |
| Resolution | 5 MP |
| Frame Rate | 109.2 fps |
| Effective Pixels (H x V) | 2448 x 2048 |
| Sensor Size | 1/1.8" |
| Cell Size (μm) | 2.74 x 2.74 |
| Sensor | IMX548 |
| Lens Mount | C Mount |
| General Specifications | PoCXP, 2-lane CXP12 |
