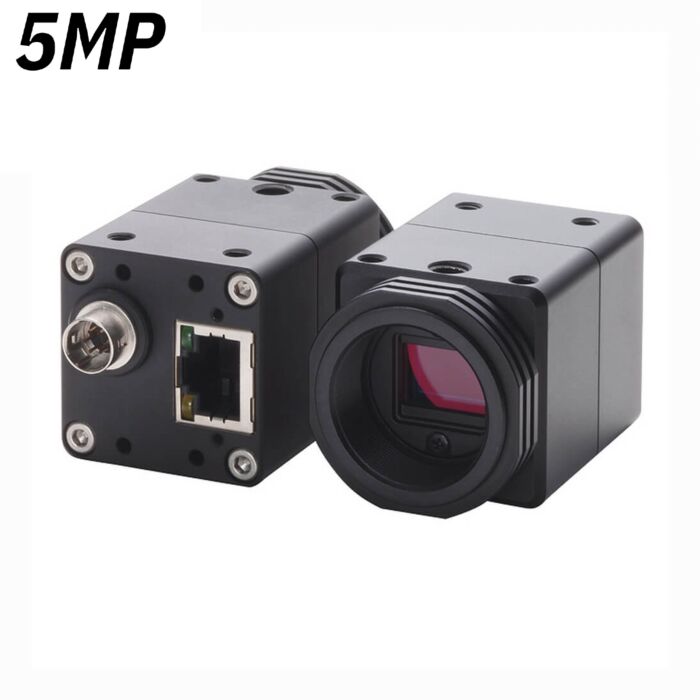

Omron STC-SC500POE Color 5MP GigE Machine Vision Camera Power Over Ethernet (PoE)
Replacement Option: STC-MCS500POE
STC-SC500POE is a compact 5MP GigE machine vision camera featuring a 2/3″ progressive scan CCD sensor, Power over Ethernet (PoE), and full compatibility with GigE Vision® and GenICam™ standards. Designed for industrial automation and inspection systems, it delivers reliable high-resolution imaging with flexible AOI control and up to 15 fps performance.
The STC-SC500POE is a high-performance 5 megapixel GigE machine vision camera designed for industrial automation, inspection systems, and OEM imaging applications. This compact camera combines a 2/3″ progressive scan CCD sensor (Sony ICX625AQ) with Power over Ethernet (PoE) connectivity, enabling both power and data transmission over a single Ethernet cable for simplified system integration.
Built for reliability in demanding industrial environments, the STC-SC500POE supports GigE Vision® and GenICam™ standards, ensuring compatibility with industry-standard drivers and machine vision software platforms. The camera also features a user-programmable Area of Interest (AOI), adjustable frame rate, and flexible exposure controls, allowing engineers to optimize imaging performance for a wide range of inspection and automation tasks.
With a compact 35 × 35 × 55.9 mm aluminum housing, the STCSC500POE integrates easily into space-constrained systems while delivering stable high-resolution imaging performance. Its combination of 5MP resolution, PoE convenience, and flexible imaging controls makes it an excellent choice for factory automation, robotics, laboratory imaging, and precision inspection systems.
Features:
- 5.0 Megapixel Resolution (2448 × 2058)
- 2/3″ Progressive Scan CCD Sensor – Sony ICX625AQ
- GigE Vision® Interface with GenICam™ compatibility
- Power over Ethernet (PoE) for single-cable installation
- 15 fps full-resolution frame rate
- User-Programmable Area of Interest (AOI)
- Selectable 8, 10, or 12-bit image output
- Auto exposure (AE) and automatic gain control (AGC)
- Uploadable gamma table support
- Compact 35 × 35 × 55.9 mm aluminum housing
- C-mount lens compatibility
- Industrial I/O for triggering and control
| Imager | 2/3" interline QSXGA color progressive CCD: ICX625AQ |
| Total Picture Element | 2536 (H) x 2068 (V) |
| Active Picture Element | QSXGA: 2448 (H) x 2058 (V) |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Scanning System | Progressive |
| Vertical Frequency (Frame Rate) | 15.18586 Hz at full resolution 0.48175 to 60.71422 Hz adjustable via the communication (Frame rate depends on the AOI setting.) Maximum frame rate (60.71422 Hz) is when vertical resolution AOI setting is 128. |
| Horizontal Frequency | 31.1284 kHz |
| Pixel Frequency | 81.8182 MHz |
| Noise Level | |
@ 8bit output | ≤ 4 Digit (Gain 0 dB) |
@ 10bit output | ≤ 15 Digit (Gain 0 dB) |
@ 12bit output | ≤ 60 Digit (Gain 0 dB) |
| Minimum Scene Illumination | TBD Lux at F1.2, 15Hz |
| Sync System | Internal |
| Video Output | Digital 8, 10 or 12 bit Raw data or RGB 8 bit |
| Interface | PoE : IEEE802.3af CLASS2 (1000BASE-T) |
| Protocol | GigE Vision® 1.2 and GenICam™ 2.0 compliant |
| Exposure Time | Preset continuous mode: 10 useconds to 16,777,215 useconds Preset trigger mode: 10 useconds to 16,777,215 useconds Pulse width mode: 10 useconds to Unlimited |
| ALC | AE and AGC (ON/OFF) |
| Gain | 0 to 18.309 dB |
| Gamma | Gamma 1.0 (Factory default) or uploadable gamma table |
| AOI Function | Variable AOI setting via the communication |
| Smear Reduction | Selectable ON/OFF via the communication |
| Color Interpolation | Available on RGB Output |
| White Balance Function | Auto, Manual, Push to Set White Balance are available on both raw data and RGB outputs |
| Operation Mode | Edge preset trigger, Pulse width trigger (unlimited long exposure) |
| Communication | UART communication through Ethernet port |
| I/Os | One opt isolated input and two open collector outputs |
| Power | |
Input Voltage | +10.8 to +26.4 Vdc via power-I/O connector or Power over Ethernet (Power-I/O connector power supply is prioritized.) |
Consumption | 12V: 4.1W / 3.5W, PoE: 4.5W / 3.8W |
| Dimensions | 35 (W) x 35 (H) x 55.9(D) mm excluding connectors |
| Optical Filter | IR Cut Filter on |
| Optical Center Accuracy | Positional accuracy in H and V directions: +/- 0.3 mm Rotational accuracy of H and V: +/- 1.5 deg. |
| Material | Aluminum (AC) |
| Lens Mount | C mount |
| Connectors | RJ45 connector; Power/IO connector: HR10A-10R-6PB (Hirose) or equivalent |
| Camera Mount Screws | Two 1/4” Tripod screw holes: (One on each top and bottom plate), Twelve M4 screws holes: (Four on each top and bottom plate, two on each side plate) |
| Weight | Approx. 130 |
| Operating Temperature | |
Minimum | Environmental Temperature -5°C |
Maximum | Camera housing temperature (top plate) shall not exceed 65⁰C (This corresponds to an environmental temperature of approximately 35°C) |
| Storage Temperature | Environmental Temperature: -30°C to 65°C |
| Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6ms, 3 directions 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS Compliant |
