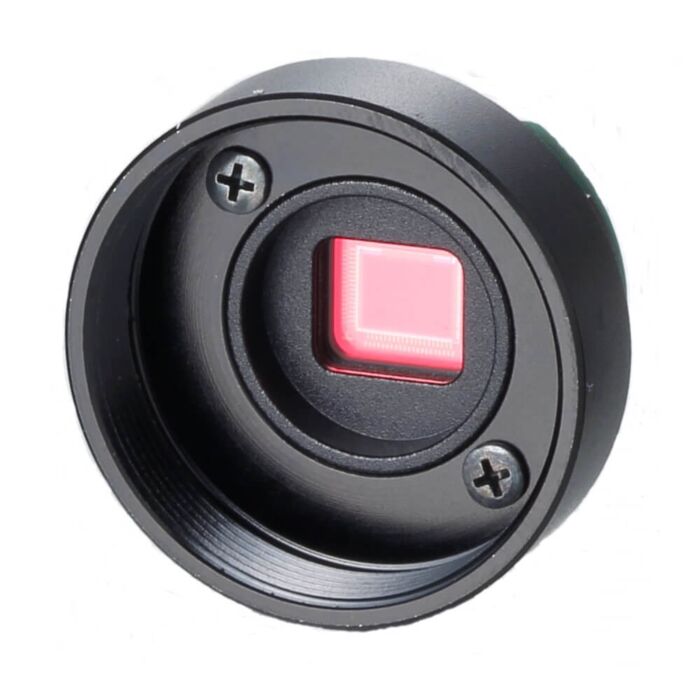

Omron STC-S133UVC-DBLCS 1.3 MP USB3 UVC Color Board Camera, SONY ISX017, 60 fps, CS Mount

The STC-S133UVC-DBLCS is a 1.3 megapixel color USB3.0 UVC area camera designed for OEMs and system integrators who need reliable, compact imaging in embedded and industrial applications. It features a 1/3.2" SONY ISX017 rolling-shutter CMOS sensor with 3.5 µm pixels, delivering detailed 1280 x 960 images at up to 60 fps and 1280 x 720 at up to 60 fps over a USB3.0 micro-B interface. This board-level camera uses a CS-mount lens interface and integrates a dual-pass optical filter to support versatile lighting conditions while maintaining color accuracy.​

Engineered for integration, the STC-S133UVC-DBLCS operates from 0 °C to +55 °C with USB bus power under 0.8–1.0 W typical consumption, simplifying cabling and power design for space-constrained systems. Configurable parameters include exposure time from approximately 1.65 µs to 33.3 ms, analog gain up to 40 dB, digital gain up to 4x, gamma options, image flip modes, and defective pixel correction, enabling fine-tuning for inspection, automation, and embedded vision projects. UVC 1.1 compliance allows plug-and-play operation with standard operating systems, reducing development time and improving reliability in North American and global deployments.

Features:

• 1.3 MP resolution (1280 x 960)
• 1/3.2" ISX017 color sensor
• UVC interface (plug-and-play)
• CS-mount compatibility
• 60 fps frame rate
• Rolling shutter
• Dual pass optical filter
• 3.5 µm pixel size
• Area scan imaging

Applications:

• Industrial vision systems
• Quality control
• Scientific imaging
• Motion analysis
• Automation systems
