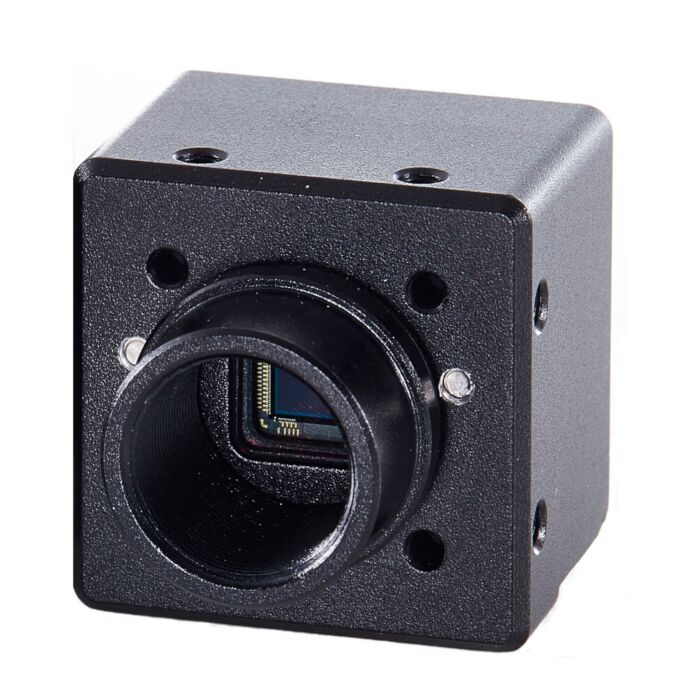

Omron STC-S133UVC-DALL 1.3MP USB3 UVC Industrial Camera, Color, 60 fps, 1/3.2" CMOS, Compact Area Scan

The Omron STC-S133UVC-DALL is a compact 1.3 MP color CMOS area camera designed for industrial automation, machine vision, and embedded inspection systems that demand dependable imaging in tight spaces. With a resolution of 1280 x 720 effective pixels (scannable up to 1280 x 960 via ROI), 60 fps output, and SONY ISX017 rolling shutter sensor, it delivers sharp images for positioning, detection, and quality control while maintaining low power consumption under 0.8 W via USB bus power.​

Featuring a USB3.0 interface with UVC 1.1 protocol, the STC-S133UVC-DALL offers true plug‑and‑play integration across common operating systems and vision software without proprietary drivers. Its 25 x 25 x 18 mm cased housing, S‑mount lens interface, and dual‑pass optical filter support flexible optics selection and stable performance from 0 °C to +55 °C, making it a practical choice for OEMs and system builders in North American and global industrial environments.

Features:

• 1.3MP resolution (1280x960)
• 60 FPS frame rate
• UVC interface
• Rolling shutter
• CS-mount lens
• 3.5 x 3.5 µm pixel size
• 1/3.2" CMOS sensor
• Compact design (25x25x18mm)

Applications:

• Industrial automation
• Machine vision
• Robotics
• Surveillance systems
• Quality control
