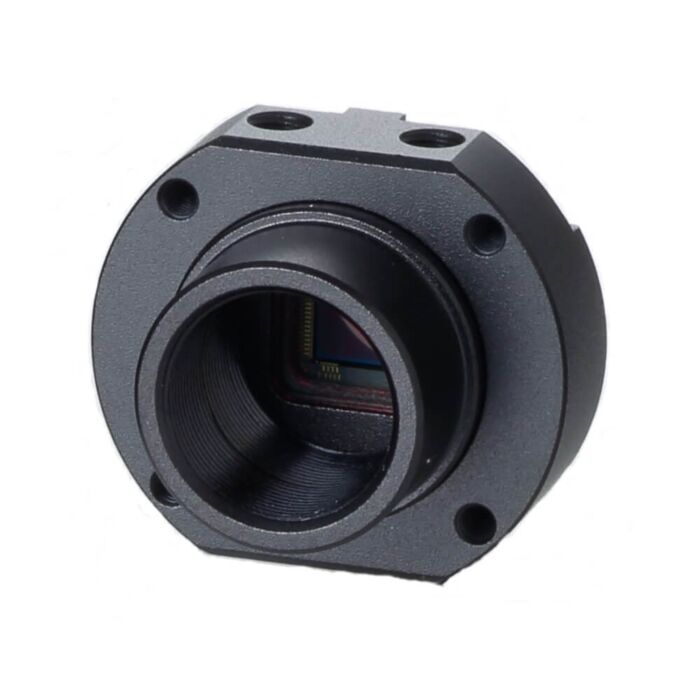

Omron STC-S133UVC-BSL 1.3 MP Sony ISX017 CMOS, 60 fps USB 3.0 S-Mount Area Scan Camera
*Please note tariff fee is NDAA Compliant included in price*
Omron STC-S133UVC-BSL: A high-performance 1.3MP IRCF board camera with a 60 FPS frame rate, UVC interface, CMOS ISX017 sensor, and rolling shutter. Compact, with a rear connector and S mount for easy integration.
The Omron STC-S133UVC-BSL is a high-performance IRCF board camera module featuring a 1.3MP CMOS image sensor (ISX017). Designed for applications requiring precision, this camera supports a rolling shutter mechanism and offers a high frame rate of 60 FPS, making it ideal for real-time imaging and dynamic environments.
Key technical features include a pixel size of 3.5 x 3.5 µm, providing clear image details at a resolution of 1280 x 960 (HxV), offering a balanced performance between speed and clarity. The 1/3.2" sensor size ensures an efficient balance of light sensitivity and compact design, ensuring high-quality imaging even in low-light conditions. The camera's UVC (USB Video Class) interface makes it universally compatible with a wide range of devices and systems, enabling easy integration without the need for additional drivers.
The camera is equipped with a rear connector for streamlined integration into your application, and the S mount lens system is designed for quick attachment to compatible lenses.
Features:
- 1.3MP CMOS Sensor (ISX017)
- 60 FPS Frame Rate
- 1280 x 960 Resolution
- Rolling Shutter
- UVC Interface
- S Mount Lens
- Rear Connector
Applications:
- Embedded Systems
- Industrial Imaging
- Real-Time Video
- Surveillance Systems
- Machine Vision
| Model Number | STC-S133UVC-BSL |
| Frame Rate | 60 FPS |
| Mono/Color | Color |
| Pixel Size (HxV) | 3.5 x 3.5 µm |
| Resolution | 1.3 MP |
| Resolution (HxV) | 1280 x 960 |
| Sensor Name | ISX017 |
| Sensor Size | 1/3.2" |
| Sensor Type | CMOS |
| Interface | UVC |
| Shutter Type | Rolling Shutter |
| Type | Board |
| Lens Mount Type | S Mount |
| Dimensions | 23 (W) x 20 (H) x 15.1 (D) mm |
