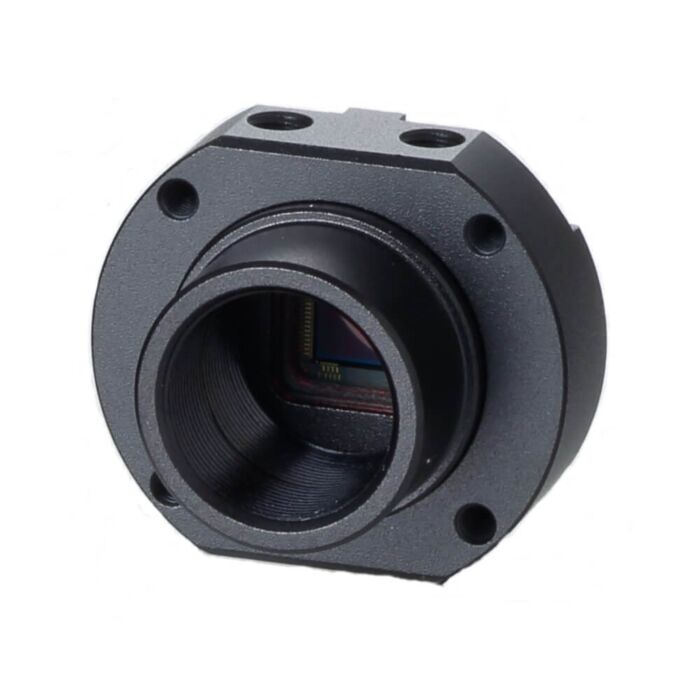

Omron STC-S133UVC-BSCS UVC Board Camera with Sony ISX017, 1.3 MP, 60 fps, USB 3.0, CS-Mount
*Please note tariff fee is included in price*
STC-S133UVC-BSCS is NDAA Compliant a 1.3 MP Omron Sentech USB 3.0 UVC board camera with a Sony ISX017 CMOS sensor, 1280 x 960 resolution, 60 fps, CS-mount, rolling shutter, and IR cut filter for compact machine vision and embedded imaging.
The STC-S133UVC-BSCS is an Omron Sentech 1.3 MP UVC industrial board camera designed for OEMs and integrators who need dependable imaging in tight spaces. It uses a 1/3.2" Sony ISX017 CMOS sensor with 3.5 µm pixels to deliver 1280 x 960 color resolution at up to 60 fps, providing clear detail for inspection, alignment, and monitoring tasks.
With a USB 3.0 UVC interface, CS lens mount, and compact board-level form factor, the STC-S133UVC-BSCS integrates quickly into machine vision, embedded, and automation platforms without custom drivers. Its rolling shutter, IR cut filter, and board-level “B” construction support flexible optical configurations while keeping the footprint small for enclosures, robotics, and other space-limited systems.
Features:
- 1.3 MP CMOS
- 60 FPS
- 1280 x 960 resolution
- CS mount
- UVC interface
- Rolling shutter
Applications:
- Embedded Systems
- Industrial Imaging
- Real-Time Video
- Surveillance Systems
- Machine Vision
| Model Number | STC-S133UVC-BSCS |
| Frame Rate | 60 FPS |
| Mono/Color | Color |
| Pixel Size (HxV) | 3.5 x 3.5 µm |
| Resolution | 1.3 MP |
| Resolution (HxV) | 1280 x 960 |
| Sensor Name | ISX017 |
| Sensor Size | 1/3.2" |
| Sensor Type | CMOS |
| Interface | UVC |
| Shutter Type | Rolling Shutter |
| Type | Board |
| Lens Mount Type | CS Mount |
| Dimensions | 23 (W) x 20 (H) x 15.1 (D) mm |
