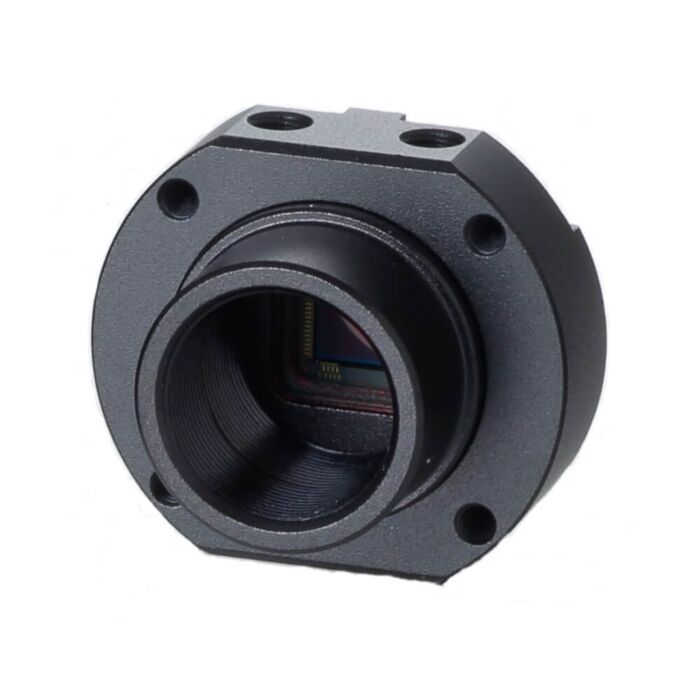

Omron STC-S133UVC-BS UVC 1.3 MP USB 3.0 Board-Level CMOS Area Scan Camera
*Please note tariff fee is included in price*
Compact 1.3 MP board-level UVC camera featuring a Sony ISX017 CMOS sensor, USB 3.0 interface, and 60 FPS performance. Ideal for machine vision, automation, and embedded applications.
NDAA CompliantThe Omron STC-S133UVC-BS is a high-quality UVC industrial camera built for precision imaging applications. Equipped with a 1/3.2" Sony ISX017 CMOS sensor, it delivers 1.3 MP resolution at up to 60 frames per second, ensuring sharp, real-time image capture. Its USB 3.0 UVC interface supports plug-and-play integration, removing the need for custom drivers—ideal for quick deployment in industrial, robotics, and embedded vision systems.
Designed with flexibility in mind, the STC-S133UVC-BS features a compact board-level design with a rolling shutter and rear connector configuration, offering maximum adaptability for OEMs and developers. The camera’s 3.5 × 3.5 µm pixel size enhances light sensitivity and image detail, making it a reliable solution for machine vision, automation, and quality control applications that demand high-speed, accurate performance.
Features:
- 1.3 MP ISX017 CMOS sensor
- 1280 x 960 resolution
- 60 FPS frame rate
- UVC (USB 3.0) & MIPI interfaces
- Rolling shutter
- 3.5 x 3.5 µm pixel size
- Compact, board-type form
Applications:
- Machine vision
- Industrial automation
- Embedded systems
- Robotics
- Quality control
| Model Number | STC-S133UVC-BS |
| Frame Rate | 60 FPS |
| Mono/Color | Color |
| Pixel Size (HxV) | 3.5 x 3.5 µm |
| Resolution | 1.3 MP |
| Resolution (HxV) | 1280 x 960 |
| Sensor Name | ISX017 |
| Sensor Size | 1/3.2" |
| Sensor Type | CMOS |
| Interface | UVC |
| Shutter Type | Rolling Shutter |
| Type | Board |
| Lens Mount Type | N/A |
| Dimensions | 23 (W) x 20 (H) x 15.1 (D) mm |
