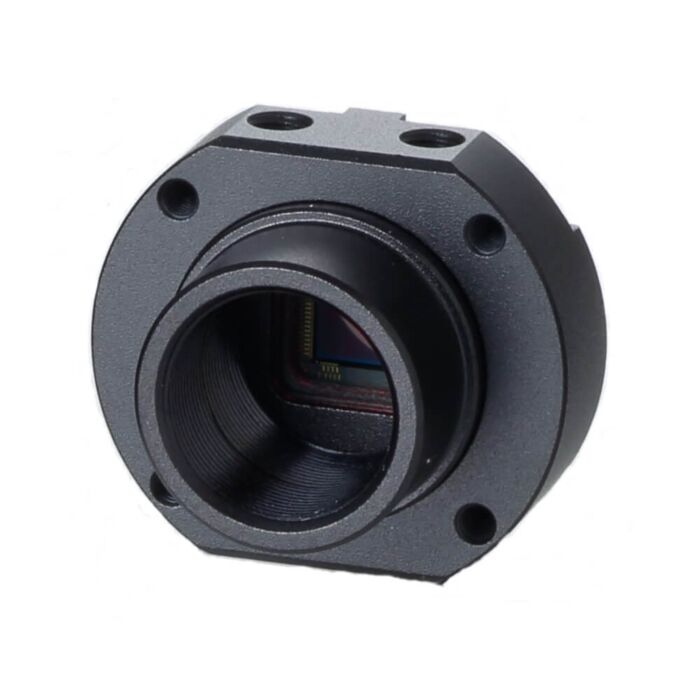

Omron STC-S133UVC-BL UVC USB 3.0 1.3MP Board Level Area Scan Camera, Sony ISX017 CMOS, 60fps
*Please note tariff fee is included in price*
UVC-compatible 1.3 MP Omron board level USB 3.0 camera with Sony ISX017 CMOS sensor, 60 fps rolling shutter readout, 1/3.2" format, and IR cut filter for embedded color imaging applications.
NDAA CompliantThe Omron STC-S133UVC-BL is a compact UVC-compatible 1.3 MP board level area scan camera built around the Sony ISX017 CMOS sensor, delivering 1280 x 960 resolution with 3.5 µm pixels in a 1/3.2" optical format for detailed, high-sensitivity color imaging. Its USB 3.0 interface supports up to 60 fps video output and board-level integration, making it well suited for embedded vision where space, power, and cabling simplicity are critical.
With a rolling shutter, integrated IR cut filter, and flexible board configuration, the STC-S133UVC-BL is engineered for precise imaging in OEM, medical, and industrial designs that require UVC plug-and-play connectivity without a fixed lens mount. Its no-lens-mount configuration allows engineers to specify custom optics, while onboard image controls such as gain and shutter adjustment support reliable performance across varied lighting conditions.
Features:
- 1.3MP Resolution: 1280 x 960 pixels
- Sensor: 1/3.2" Sony ISX017 CMOS
- Pixel Size: 3.5 µm
- Frame Rate: Up to 60fps
- Shutter Type: Rolling
- Interface: UVC
- Design: Board level, no lens mount
- Filter: IR cut for color accuracy
Applications:
- Embedded vision
- Medical imaging
- Industrial inspection
- Automation systems
- Kiosk cameras
- Lab instrumentation
| Model Number | STC-S133UVC-BL |
| Manufacturer | Omron |
| Camera Type | Board level area scan camera |
| Resolution | 1.3 MP |
| Resolution (H x V) | 1280 x 960 pixels |
| Sensor Name | Sony ISX017 |
| Sensor Type | CMOS, color |
| Sensor Size | 1/3.2" |
| Pixel Size (H x V) | 3.5 x 3.5 µm |
| Shutter Type | Rolling shutter |
| Frame Rate | Up to 60 fps (USB 3.0) |
| Video Class | UVC (USB Video Class) |
| Interface | USB 3.0 (micro B) |
| Scan Type | Area scan |
| Lens Mount Type | None (no lens mount, board type) |
| Optical Filter | IR cut filter (color) |
| Design | Board level, angle USB connector |
| Mono/Color | Color |
| Power Input | +5 V via USB bus power |
| Power Consumption | Typ. 0.8 W, Max 1.0 W (USB3.0) |
| Dimensions (W x H x D) | 23 x 20 x 15.1 mm |
| Image Controls | Gain, shutter, color adjustment, flip, WDR/defog, pixel correction (via software) |
| Supported Resolutions (USB 3.0) | 1280 x 720 @ 60/50/30/25 fps; 1280 x 960 @ 30/25 fps |
| Supported Resolutions (USB 2.0) | 800 x 600 @ 25 fps; 640 x 480 @ 30/25 fps (center ROI) |
| Operating System Support | UVC-compliant OS (Windows, Linux, etc.) |
| Typical Applications | Embedded vision, medical imaging, industrial inspection, automation |
