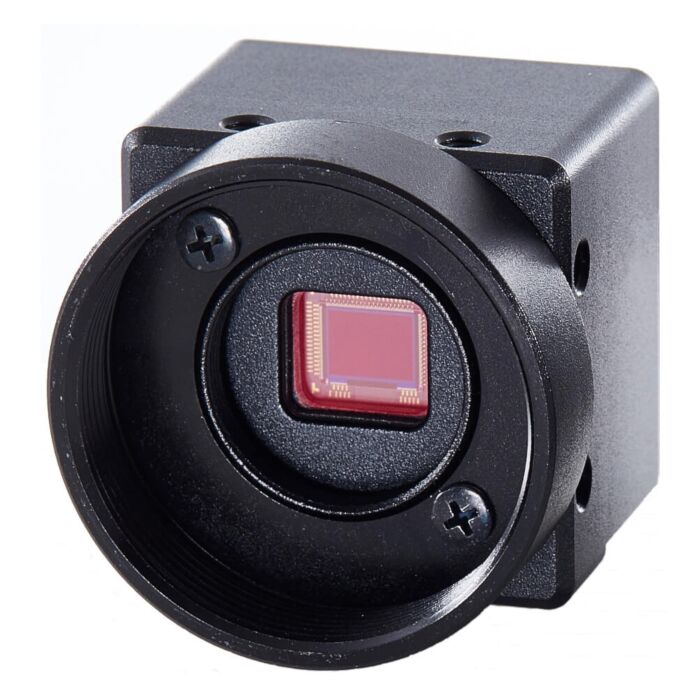

Omron STC-S133UVC-ALCS UVC 1.3 MP, 1/3.2" Sony ISX017 CMOS, 60fps, USB 3.0, CS Mount Board Level Area Scan Camera
*Please note tariff fee is NDAA Compliant included in price*
Omron STC-S133UVC-ALCS camera offers 1.3 MP resolution, 60 fps, a 1/3.2" ISX017 sensor, rolling shutter, UVC interface, CS-mount, and an IR cut filter for versatile and high-clarity imaging.
The Omron STC-S133UVC-ALCS is a high-performance 1.3 MP color area scan camera engineered for precision imaging in industrial, scientific, and automation environments that demand sharp detail and stable data capture. Its 1/3.2" ISX017 CMOS sensor with 3.5 µm pixels delivers 1280 x 960 effective resolution, providing clean, detailed images suitable for inspection, measurement, and recognition tasks.
With a 60 fps frame rate, rolling shutter, CS-mount lens interface, and integrated IR cut filter, this compact 25 x 25 x 25.6 mm cased camera offers flexible optics, accurate color reproduction, and smooth imaging at production speeds. UVC compliance simplifies integration with Windows, Linux, and embedded platforms without proprietary drivers, helping OEMs and system integrators shorten development cycles and standardize on a single camera platform.
Features:
- 1.3 MP resolution (1280 x 960)
- 1/3.2" ISX017 sensor
- 3.5 µm pixel size
- Rolling shutter
- 60 fps frame rate
- CS-mount lens compatibility
- UVC interface
- IR cut filter
Applications:
- Industrial inspection
- Scientific imaging
- Automation systems
- Object recognition
- High-speed monitoring
| Model Number | STC-S133UVC-ALCS |
| Frame Rate | 60 FPS |
| Mono/Color | Color |
| Pixel Size (HxV) | 3.5 x 3.5 µm |
| Resolution | 1.3 MP |
| Resolution (HxV) | 1280 x 960 |
| Sensor Name | ISX017 |
| Sensor Size | 1/3.2" |
| Sensor Type | CMOS |
| Interface | UVC |
| Shutter Type | Rolling Shutter |
| Type | Cased |
| Lens Mount Type | CS-Mount |
| Dimensions | 25 (W) x 25 (H) x 25.6 (D) mm |
