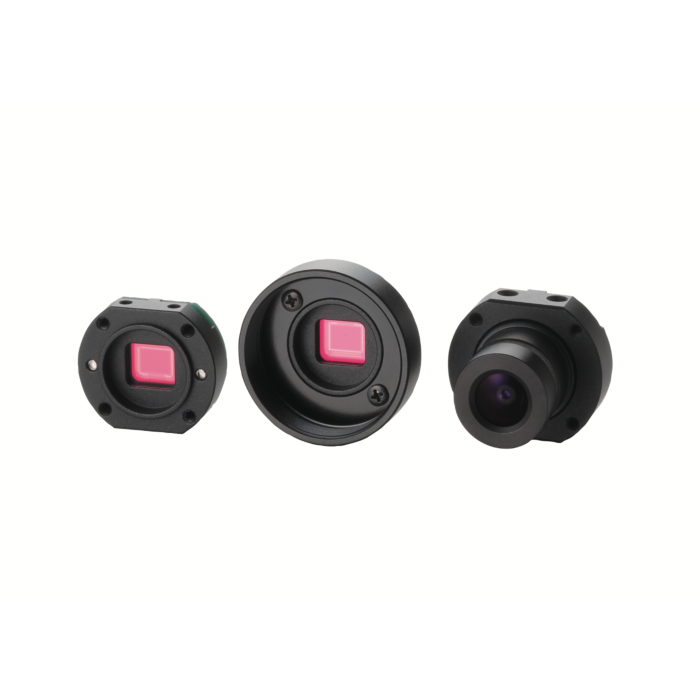

Omron STC-S133P 0.65MP PAL Board Level Camera | 1/3.2" ISX017 CMOS Machine Vision Camera
*In Stock Now Only 30 Left
The Omron STC-S133P board level camera features a 0.65MP 1/3.2" CMOS sensor (ISX017) with PAL video output, delivering reliable imaging for machine vision, OEM integration, and industrial inspection systems. Its compact board-level design and lens-free configuration allow engineers to select custom optics for specialized imaging applications.
The Omron STC-S133P is a compact 0.65 megapixel board-level CMOS camera designed for embedded vision systems, industrial automation, and OEM equipment integration. Built around the Sony ISX017 CMOS image sensor, the camera delivers clear PAL video output with excellent sensitivity and low noise performance, making it ideal for industrial imaging environments.
This 1/3.2" sensor camera module provides 1211 × 576 effective pixels, enabling reliable image capture for inspection systems, medical equipment, security devices, and automation systems requiring compact analog camera modules.
The board level design allows system integrators and OEM manufacturers to easily embed the STCS133P into custom hardware or vision platforms. Because the camera ships without a lens, developers can select the optimal C-mount, M12, or custom optics depending on working distance, field of view, and lighting conditions.
Features:
- 0.65MP resolution
- ISX017 CMOS sensor
- PAL format
- Dual pass filter
- No lens (customizable)
- Compact design
Applications:
- Machine vision
- Industrial inspection
- Security systems
- OEM projects
- Medical imaging
| Resolution | 0.65 Mega pixels |
| Model No. | STC-S133P |
| Video Format | PAL |
| Effective Pixels | 1211 x 576 |
| Sensor Size | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.238 x 2.016 x 4.693 |
| Sensor | ISX017 |
| Lens Mount | No IR cut filter type, Non-Dual Pass Filter |
