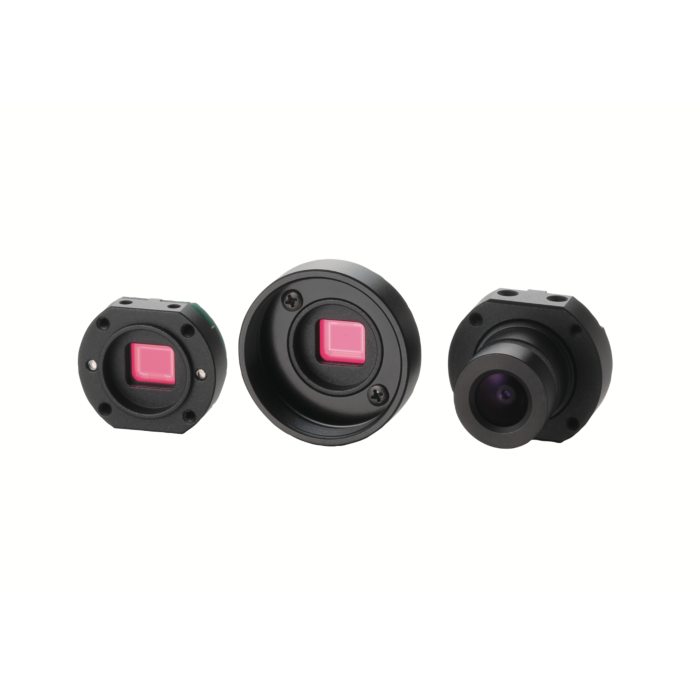

Omron STC-S133P-NF 1/3.2" 0.65 MP TV Format PAL, Color Board Level Camera
*Please note tariff fee is included in price*
The Omron STC-S133P-NF is NDAA Compliant a 1/3.2" 0.65M Color CMOS board level camera with the ISX017 sensor. Featuring PAL output, no lens, and no dual pass filter, it provides high sensitivity and excellent imaging performance for industrial and security applications.The Omron STC-S133P-NF is a high-performance 1/3.2" Color CMOS Board Level Camera designed for professional imaging applications. Featuring a 0.65 Megapixel resolution, the camera utilizes the advanced ISX017 CMOS sensor to deliver clear, vibrant images with excellent color accuracy and low-light performance. Operating in the PAL video format, the STC-S133P-NF is ideal for a variety of industrial, security, and surveillance applications.
This model comes without a lens or dual pass filter, providing flexibility for custom optical configurations. With its compact design, the STC-S133P-NF integrates easily into systems where space and precision are critical. The ISX017 CMOS sensor ensures superior image processing, offering fast readout speeds and minimal distortion. Additionally, it boasts high sensitivity, which makes it suitable for environments with challenging lighting conditions.
Features:
- 1/3.2" Color CMOS Sensor (ISX017)
- 0.65 Megapixel Resolution
- PAL Video Format
- No Lens
- No Dual Pass Filter
- High Sensitivity
- Compact Design
Applications:
- Industrial Imaging
- Surveillance
- Security Systems
- Custom Optical Integration
| Resolution | 0.65 Mega pixels |
| Model No. | STC-S133P-NF |
| Video Format | PAL |
| Effective Pixels | 1211 x 576 |
| Sensor Size | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.238 x 2.016 x 4.693 |
| Sensor | ISX017 |
| Lens Mount | No IR cut filter type, Non-Dual Pass Filter |
