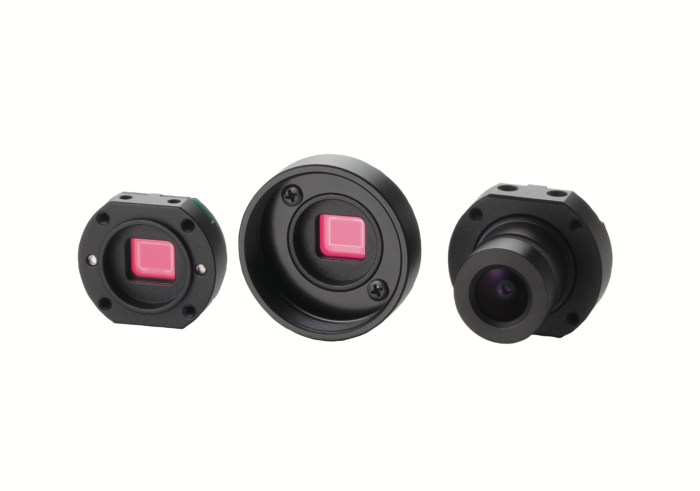

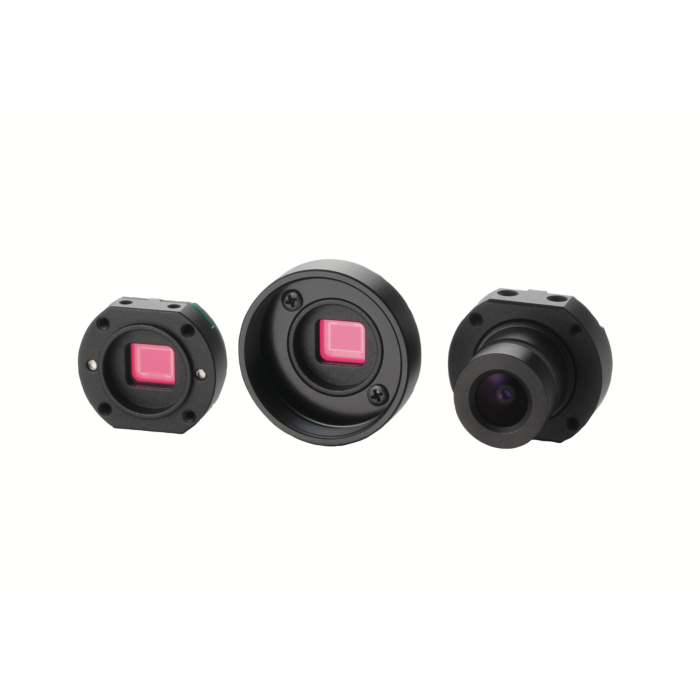

Omron STC-S133N 1/3.2" 0.65 MP TV Format NTSC, Color Board Level Camera
*Please note tariff fee is included in price*
The Omron STC-S133N is NDAA Compliant a 1/3.2" color CMOS board-level camera with a 0.65MP ISX017 sensor, NTSC output, dual-pass filter, and no lens. Compact and versatile for custom industrial imaging applications.The Omron STC-S133N is a high-performance 1/3.2" color CMOS board-level camera designed for applications requiring compact, efficient, and reliable imaging. Featuring the ISX017 CMOS sensor, this camera delivers 0.65 megapixel resolution optimized for NTSC TV format. Its board-level design enables seamless integration into embedded systems and industrial equipment.
Key technical specifications include its dual-pass optical filter for enhanced color accuracy and light management, and its no-lens configuration, allowing for custom lens solutions tailored to specific applications. The Omron STC-S133N is ideal for machine vision, quality control, and low-light imaging environments. Engineered for reliability, this camera combines advanced imaging technology with robust construction for demanding environments.
Features:
- 1/3.2" CMOS ISX017 sensor
- 0.65MP resolution (NTSC)
- Dual-pass optical filter
- No lens (customizable options)
- Compact board-level design
Applications:
- Machine vision
- Industrial automation
- Quality control
- Embedded systems
- Low-light imaging
| Resolution | 0.65 MP |
| Model No. | STC-S133N |
| Video Format | NTSC |
| Effective Pixels | 1280 x 486 |
| Sensor Size | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.480 x 1.701 x 4.792 |
| Sensor | ISX017 |
| Lens Mount | No lens, Fixed lens, without lens mount |
