Omron STC-S133N-NF 1/3.2" 0.65 MP TV Format NTSC, Color Board Level Camera
*Please note tariff fee is included in price*

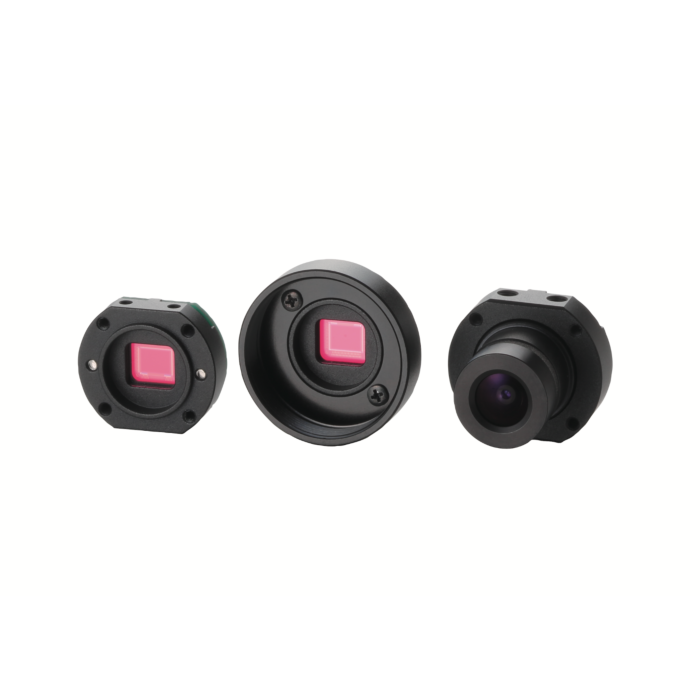

The Omron STC-S133N-NF board camera offers a 1/3.2" 0.65MP ISX017 CMOS sensor with NTSC output. Designed for modular integration, it includes no lens or dual-pass filter, enabling flexible customization for industrial and embedded imaging solutions. NDAA CompliantThe Omron STC-S133N-NF (STCS133NNF) is part of the STC-S133 Series, a high-performance line of board-level cameras designed for precision imaging applications. Featuring a 1/3.2-inch 0.65-megapixel CMOS sensor (ISX017), this camera is optimized for NTSC video output, delivering high-quality color images with excellent clarity and accuracy.
This model is supplied in a compact, lightweight board-level format, ideal for integration into embedded systems, robotics, and industrial automation setups. It comes without a lens, providing flexibility to pair with custom optics for specialized imaging needs. Additionally, the absence of a dual-pass filter makes it suitable for applications requiring broader spectral sensitivity or custom filtration options.
Features:
- 1/3.2" ISX017 CMOS sensor
- 0.65MP resolution
- NTSC video output
- Board-level design
- No lens mount
- No IR cut filter type
- Non-Dual Pass Filter
Applications:
- Industrial automation
- Robotics vision
- Embedded systems
- Quality control
| Resolution | 0.65 MP |
| Model No. | STC-S133N-NF |
| Video Format | NTSC |
| Effective Pixels | 1280 x 486 |
| Sensor Size | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.480 x 1.701 x 4.792 |
| Sensor | ISX017 |
| Lens Mount | No lens, Fixed lens, without lens mount |
