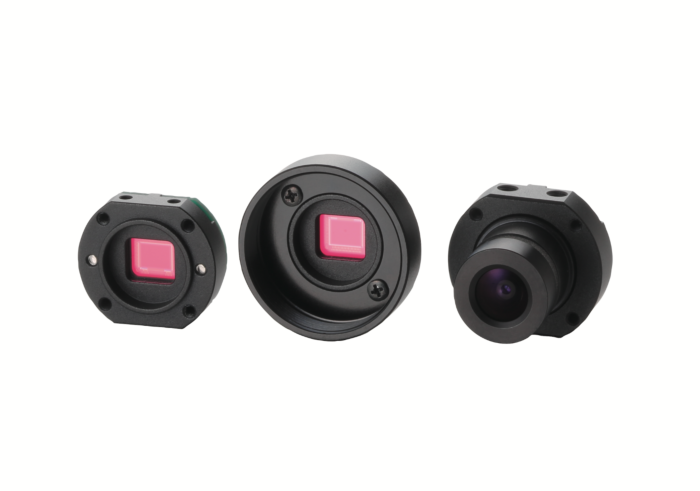

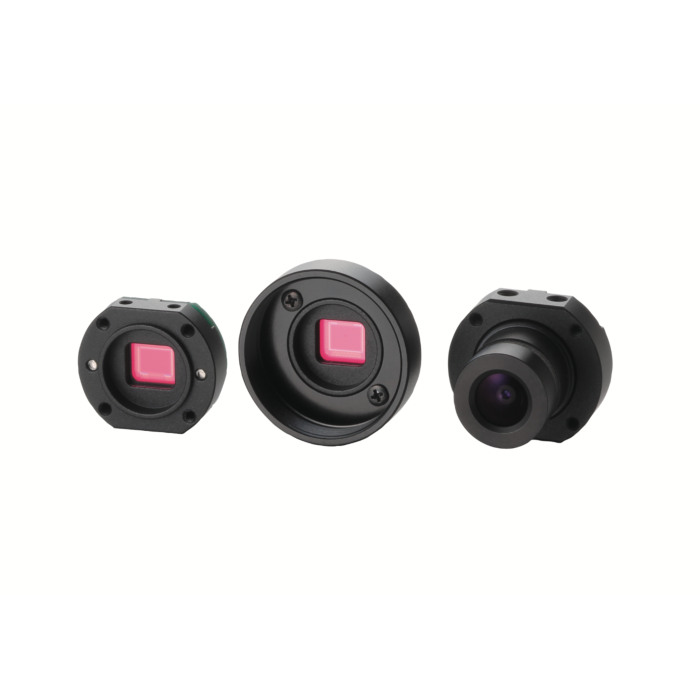

Omron STC-S133N-LS 1/3.2" 0.65 MP TV Format NTSC, Fixed Lens Holder Short, Color Board Level Camera
*Please note this product is subject to tariff fee*
Omron STC-S133N-LS CMOS board-level camera with 0.65M resolution, NTSC output, dual-pass filter, and short fixed lens holder. Compact, reliable, and perfect for industrial and surveillance applications.The Omron STC-S133N-LS is a compact, high-performance board-level camera designed for industrial and surveillance applications. Featuring a 1/3.2" CMOS sensor (ISX017), this camera delivers crisp color images at a resolution of 0.65 megapixels in NTSC format. The camera integrates a fixed lens holder with a short length, making it ideal for applications where space is limited. Additionally, the dual-pass filter provides enhanced image clarity by reducing optical distortions, making it suitable for environments where accurate image reproduction is critical.
The camera's robust design ensures reliable performance under varying lighting conditions, and its low power consumption is perfect for continuous operation in embedded systems. Whether used in industrial automation, security, or imaging systems, the STCS133NLS provides a reliable and efficient solution for demanding tasks.
Features:
- 0.65M resolution
- NTSC output
- 1/3.2" CMOS sensor (ISX017)
- Fixed lens holder (short)
- Dual-pass filter
- Low power consumption
Applications:
- Industrial automation
- Surveillance systems
- Embedded systems
- Imaging solutions
| Resolution | 0.65 MP |
| Model No. | STC-S133N-LS |
| Video Format | NTSC |
| Effective Pixels | 1280 x 486 |
| Sensor Size | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.480 x 1.701 x 4.792 |
| Sensor | ISX017 |
| Lens Mount | No lens, Fixed Lens Holder Short |
