Omron STC-S133N-L 1/3.2" 0.65 MP TV Format NTSC, M12 Mount Fixed Lens, Color Board Level Camera
*Please note tariff fee is included in price*

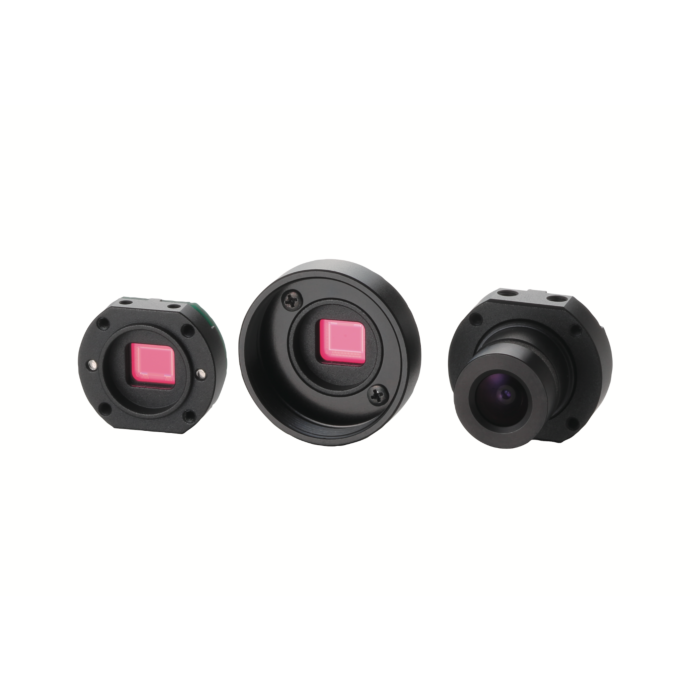

Omron STC-S133N-L 1/3.2" Color CMOS board level camera with 0.65MP resolution, NTSC video output, fixed lens, and dual pass filter. Powered by the ISX017 CMOS sensor for high-quality imaging.
NDAA CompliantThe Omron STC-S133N-L is a compact 1/3.2" Color CMOS Board Level Camera, featuring the ISX017 CMOS sensor for high-quality imaging. With a 0.65 megapixel resolution, this camera delivers clear, detailed images ideal for industrial, surveillance, and machine vision applications. Its NTSC video output ensures compatibility with standard systems, while the fixed lens provides stable and consistent focus.
The camera includes a dual pass filter, reducing light interference and maintaining optimal image quality in challenging lighting conditions. Its small, board-level design allows for flexible integration into various systems, making it a versatile solution for a wide range of applications.
Features:
- 1/3.2" Color CMOS Sensor (ISX017)
- 0.65MP Resolution
- NTSC Output
- Fixed Lens
- Dual Pass Filter
- Compact Board Level Design
- M12 Lens Mount
Applications:
- Industrial Inspection
- Security Surveillance
- Machine Vision Systems
- Custom Imaging Solutions
| Resolution | 0.65 MP |
| Model No. | STC-S133N-L |
| Video Format | NTSC |
| Effective Pixels | 1280 x 486 |
| Sensor Size | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.480 x 1.701 x 4.792 |
| Sensor | ISX017 |
| Lens Mount | No lens, Fixed lens M12 Mount |
