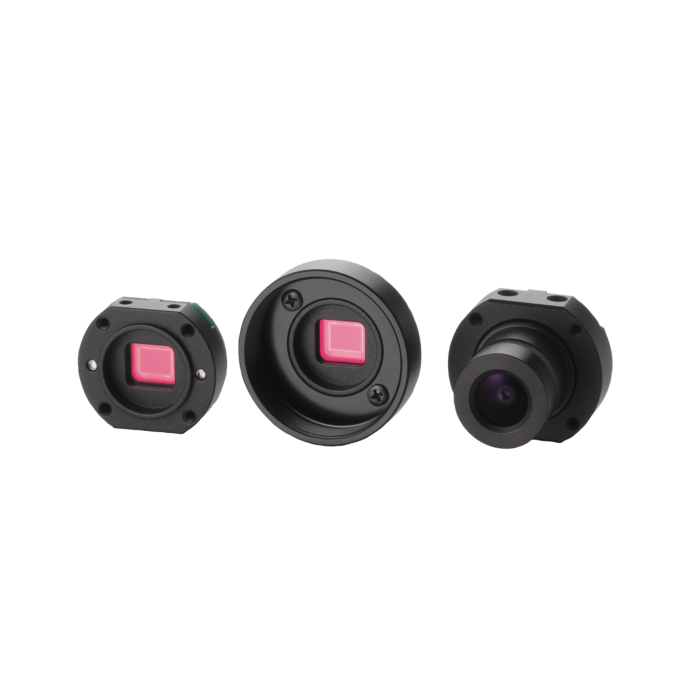

Omron STC-S133N-CS 1/3.2" 0.65 MP TV Format NTSC, CS Mount, Color Board Level Camera
The Omron STC-S133N-CS is a high-performance board-level camera designed for precision imaging applications. This camera features a compact 1/3.2" ISX017 CMOS color sensor with a 0.65-megapixel resolution, delivering crisp and detailed visuals in a TV format. Engineered with NTSC output for seamless integration, it is ideal for broadcast and industrial inspection systems requiring reliability and superior image clarity.
Equipped with a CS mount, the STC-S133N-CS offers flexible lens compatibility, enabling customized configurations to suit diverse operational environments. The dual-pass filter enhances image quality by effectively managing light interference, ensuring high contrast and vivid color reproduction. Its compact design makes it an excellent choice for space-constrained installations while maintaining top-tier performance.
Features:
- 1/3.2" ISX017 CMOS color sensor
- 0.65MP resolution (TV format)
- NTSC output compatibility
- CS mount for lens flexibility
- Dual-pass filter for enhanced image quality
Applications:
- Industrial inspection
- Broadcast systems
- Embedded imaging solutions
- Space-constrained environments
- Vision systems requiring precise color accuracy
| Resolution | 0.65 MP |
| Model No. | STC-S133N-CS |
| Video Format | NTSC |
| Effective Pixels | 1280 x 486 |
| Sensor Size | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.480 x 1.701 x 4.792 |
| Sensor | ISX017 |
| Lens Mount | No lens, Fixed lens, CS lens mount |
