Omron STC-S133MIP 1/3.2" Sony ISX017 CMOS, 1.3 MP, 60fps, Color MIPI Board Level Camera
*Please note tariff fee is included in price*
The MIPI Camera Series is NDAA Compliant also available in the following filter configurations:
STC-S133MIP-CS (1.3M / CS mount / IR Cut Filter / Board)
STC-S133MIP-L (1.3M / M12 lens mount / IR Cut Filter / Board)
STC-S133MIP-NF (1.3M / No lens mount / No IR Cut Filter / Board)
STC-S133MIP-D (1.3M / No lens mount / Dual Pass Filter / Board)
STC-S133MIP-DCS (1.3M / CS mount / Dual Pass Filter / Board)
STC-S133MIP-DL (1.3M / M12 lens mount / Dual Pass Filter / Board)
STC-S133MIP-ALL (1.3M / M12 lens mount / IR Cut Filter / Cased)
STC-S133MIP-ALCS (1.3M / CS mount / IR Cut Filter / Cased)
STC-S133MIP-DALL (1.3M / M12 lens mount / Dual Pass Filter / Cased)
STC-S133MIP-DALCS (1.3M / CS mount / Dual Pass Filter / Cased)

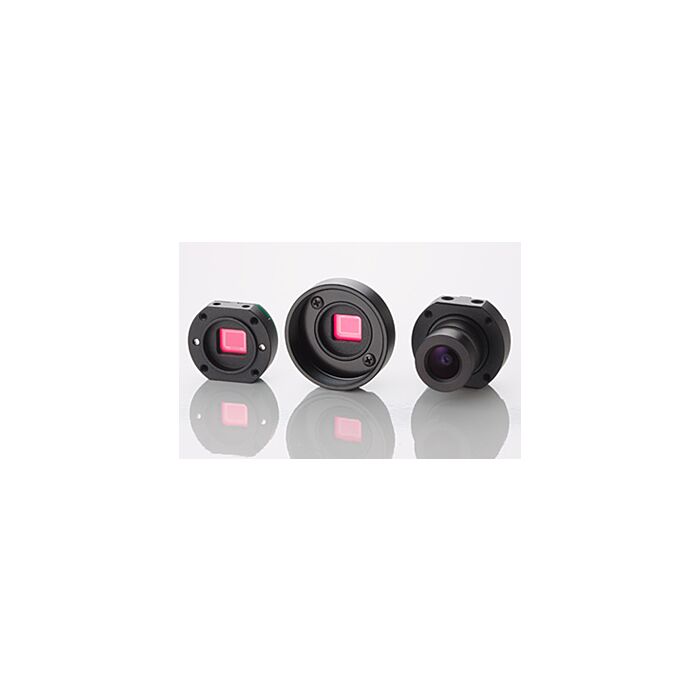

The Omron STC-S133MIP is a high-performance MIPI camera module designed for versatile imaging applications. With a 1.3 MP resolution (1280x960), it delivers high-definition visuals in both mono and color formats, making it ideal for a wide range of industrial, automotive, and embedded system uses. The camera operates at an impressive 60 FPS frame rate, ensuring smooth video capture even in dynamic environments.
At the core of the STC-S133MIP is the advanced ISX017 CCD sensor, known for its reliable imaging performance. The sensor size is 1/3.2", providing excellent light sensitivity and detail retention. The pixel size of 3.5 x 3.5 µm ensures sharp image quality and high pixel density, delivering crisp and clear visuals. The module utilizes a rolling shutter mechanism, ideal for applications requiring continuous image capture and minimal distortion.
This camera comes in a board configuration, offering flexibility in integration for custom solutions. It supports a MIPI interface for high-speed data transfer, ensuring compatibility with modern processing units. Additionally, the STC-S133MIP is available with a range of filter configurations
| Model | STC-S133MIP |
| Camera Type | Color |
| Number of pixels | 1.3 MP |
| Interface | MIPI |
| Lens mount | None |
| Shutter type | Rolling |
| Image width | 1280 pixels |
| Image height | 960 pixels |
| Image sensor format | 1/3.2" |
| Image sensor type | ISX017 |
| Pixel size | 3.5 µm |
| Frame rate | 60 fps |
| Optical filter | IR cut filter |
| Lens type | N/A |
| Scan type | Area scan |
