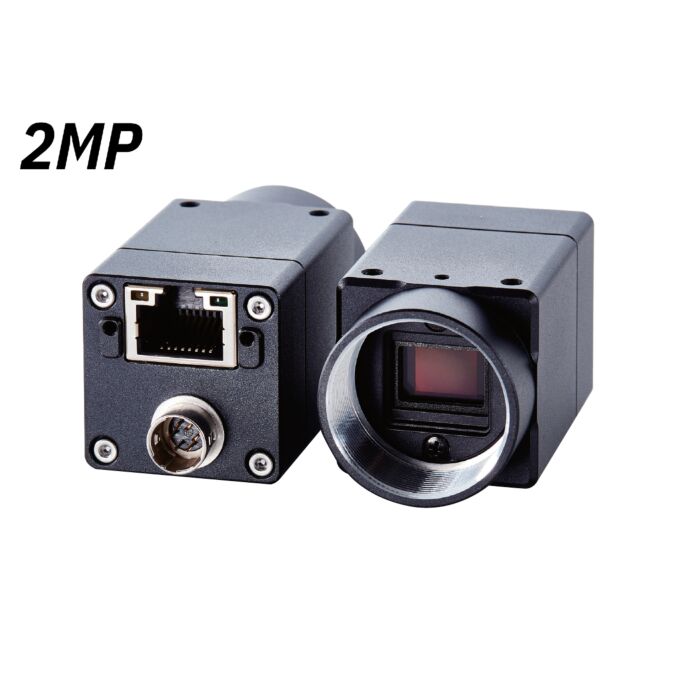

Omron STC-MCS202POE 2MP GigE Vision Camera – Sony IMX430 Global Shutter, 54.4 FPS, C-Mount
*In Stock Now Only 4 Left
Experience the power of the Omron STC-MCS202POE Small GigE Vision Color Camera. With its 2MP global shutter sensor and 54.4fps, it's the perfect solution for high-speed, high-quality imaging. Contact Aegis Electronic Group Inc. today to learn more! NDAA Compliant
The Omron STC-MCS202POE GigE Vision camera is a compact high-performance industrial camera designed for demanding machine vision, inspection, robotics, and automation systems. Built around the Sony IMX430 2MP global shutter CMOS sensor, the STC-MCS202POE delivers sharp, distortion-free image capture at up to 54.4 frames per second, making it ideal for high-speed inspection and motion analysis applications.
With a 1/1.7" sensor format and 4.5 µm pixel size, the camera provides excellent sensitivity and image clarity for industrial imaging environments. The integrated GigE Vision 2.1 interface and GenICam SNFC2.3 compliance allow easy integration into existing machine vision software platforms including common industrial vision frameworks.
The rugged A6061 aluminum housing measures just 29 × 29 × 53 mm, enabling installation in space-constrained automation systems while maintaining durability in industrial environments. A standard C-mount lens interface supports a wide range of machine vision lenses for flexible system design.
Available from Aegis Electronic Group Inc., the STC-MCS202POE is an NDAA-compliant imaging solution ideal for manufacturers, integrators, and OEMs seeking reliable GigE Vision cameras for inspection and automation systems.
Key Features:
- 2MP Sony IMX430 global shutter CMOS sensor
- 54.4 FPS high-speed image capture
- GigE Vision 2.1 interface for long cable runs
- GenICam SNFC2.3 compliant for easy integration
- Compact 29 × 29 × 53 mm industrial form factor
- 1/1.7" sensor format with 4.5 µm pixels
- C-mount lens compatibility
- A6061 aluminum industrial housing
Applications:
- Automated optical inspection (AOI)
- Factory automation and robotics
- Machine vision inspection systems
- Barcode and label verification
- High-speed manufacturing inspection
- Electronic component inspection
- Packaging inspection systems
- Metrology and measurement applications
| Camera type | Color |
| Number of pixels | 2.0 MP |
| Interface | GigE |
| Lens mount | C-mount |
| Shutter type | Global |
| Image width | 1624 pixels |
| Image height | 1240 pixels |
| Image sensor format | 1/1.7" |
| Image sensor type | Other |
| Pixel size | 4.5 µm |
| Frame rate | 54.4 fps |
| Optical filter | None |
| Lens type | N/A |
| Scan type | Area scan |
| Material housing | Aluminum A6061 |
| Dimensions | 29W x 29H x 53D mm |
