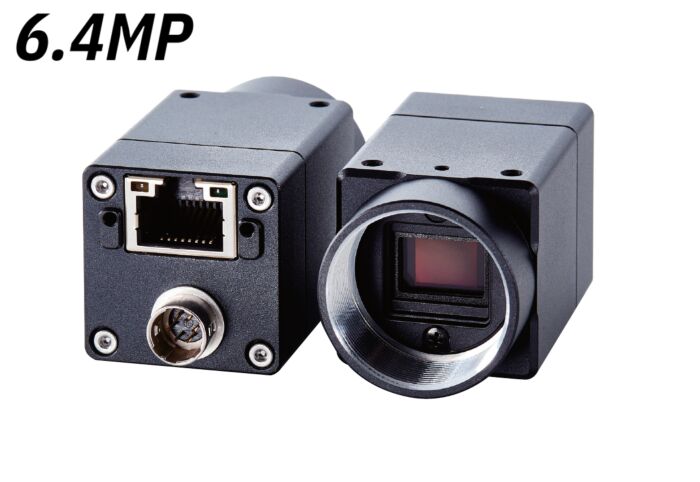

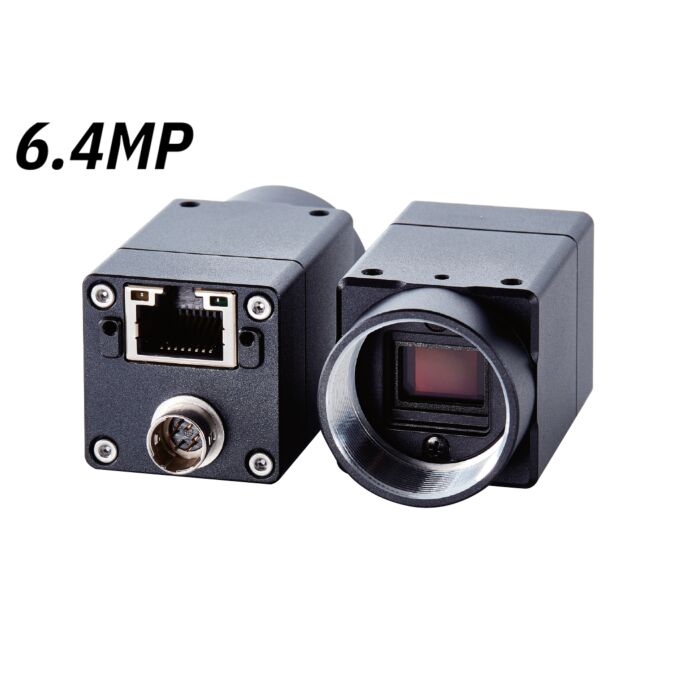

Omron STC-MBS642POE Small GigE Vision 6.4 MP Monochrome Area Scan Camera with Sony IMX178, 1/1.8", PoE, C-Mount
*Please note tariff fee is included in price*
Omron STC-MBS642POE 6.4 MP monochrome GigE Vision area scan camera with Sony IMX178 1/1.8" CMOS sensor, PoE interface, C-mount, and up to 17.4 fps for precise industrial imaging.
NDAA CompliantThe Omron STC-MBS642POE is a high-resolution 6.4 MP monochrome GigE Vision area scan camera built around the Sony IMX178 CMOS sensor, providing 3,072 (H) × 2,048 (V) effective pixels with a 1/1.8" optical format and 2.4 µm pixel size. With a maximum frame rate of 17.4 fps and support for Mono8, Mono10, Mono12, Mono10Packed, and Mono12Packed image formats, it delivers detailed grayscale images suitable for demanding measurement and inspection tasks.
Designed for integration into industrial environments, this camera features a robust cased body, C-mount lens interface, and Power over Ethernet (IEEE802.3af) to simplify cabling and system design. Edge preset trigger and free-run modes, full-frame and ROI scanning, image flip options, and on-board functions such as auto exposure, auto gain, and defective pixel correction (up to 2,048 pixels) give system integrators the control needed to optimize performance in production lines, laboratories, and OEM equipment.
Features:
- 6.4 MP resolution (3,072 × 2,048 effective pixels)
- Sony IMX178 1/1.8" monochrome CMOS sensor
- Up to 17.4 fps at full resolution
- GigE Vision 2.1 interface with 1000BASE-T PoE (IEEE802.3af Class 2)
- Power over Ethernet or +10.8 to +26.4 V DC external power options
- C-mount lens interface with compact 29 × 29 × 53 mm cased housing
- Rolling shutter / global reset shutter operation
- Full-frame and ROI scanning modes
- Image formats: Mono8, Mono10, Mono12, Mono10Packed, Mono12Packed
- Image flip: vertical, horizontal, both, or off
- Auto exposure and auto gain for dynamic lighting conditions
- Analog gain 0 to 20.8 dB; digital gain ×1 to ×3
- Exposure range from 28.523 µs to 16.777 s
- Defective pixel correction for up to 2,048 pixels
- Eight user setting banks for quick configuration recall
- PTP (IEEE1588), chunk, and event functions supported
Applications:
- Machine inspection
- Dimensional measurement
- Robotics vision
- Electronics inspection
- Lab automation
- Packaging verification
- Surface analysis
- Code reading
| Product Model | STC-MBS642POE |
| Camera Type | Area Camera |
| Resolution | 6.4 MP |
| Effective Pixels | 3,072 (H) × 2,048 (V) |
| Color / Monochrome | Monochrome |
| Frame Rate | 17.4 fps (full resolution) |
| Image Sensor | Sony IMX178 CMOS |
| Optical Size | 1/1.8" |
| Pixel Size | 2.4 µm (H) × 2.4 µm (V) |
| Shutter Type | Rolling Shutter / Global Reset |
| Interface | GigE Vision 2.1 (1000BASE-T) |
| PoE Support | IEEE802.3af Class 2 (Power over Ethernet) |
| Protocol | GigE Vision 2.1 |
| Power Supply | PoE (IEEE802.3af) or +10.8 to +26.4 V DC external |
| Power Consumption | PoE: < 4.2 W; External power: < 3.3 W |
| Lens Mount | C-Mount |
| Optical Filter | None |
| Dimensions (W × H × D) | 29 × 29 × 53 mm |
| Weight | Approx. 63 g |
| Housing | Cased |
| Connector (Data) | RJ45 × 1 |
| Power / I/O Connector | HR10A-7R-6PB (Hirose) or equivalent × 1 |
| Scanning Mode | Full scanning / ROI |
| Operational Mode | Edge preset trigger / Free-run |
| Image Pixel Format | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
| Exposure Time | 28.523 µs to 16.777 s |
| Analog Gain | 0 to 20.8 dB |
| Digital Gain | ×1 to ×3 |
| Gamma | 0.1 to 4.0 |
| Binning | N/A |
| Decimation | N/A |
| Image Flip | Vertical / Horizontal / Vertical & Horizontal / Off |
| Defective Pixel Correction | Up to 2,048 pixels |
| Save User Settings | Supported (8 user setting banks) |
| White Balance | N/A (Monochrome) |
| FFC (Flat Field Correction) | N/A |
| Auto Control Functions | Auto exposure / Auto gain |
| Chunk Function | Supported |
| Event Function | Supported |
| PTP Function (IEEE1588) | Supported |
| Operating Temperature | 0 °C to +41 °C (environmental) |
| Storage Temperature | -20 °C to +70 °C (environmental) |
