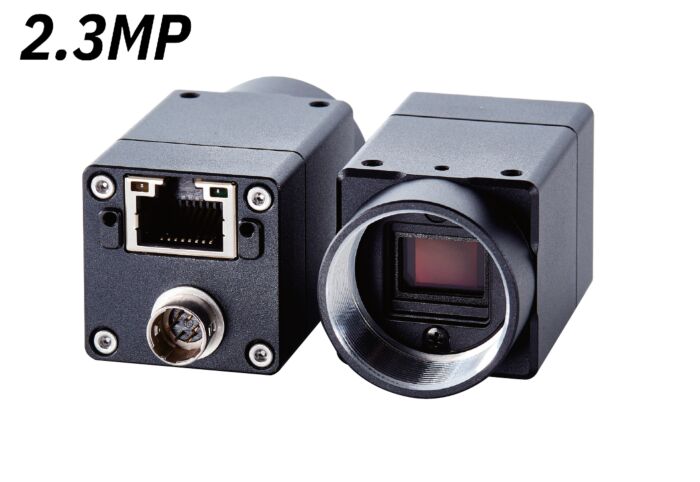

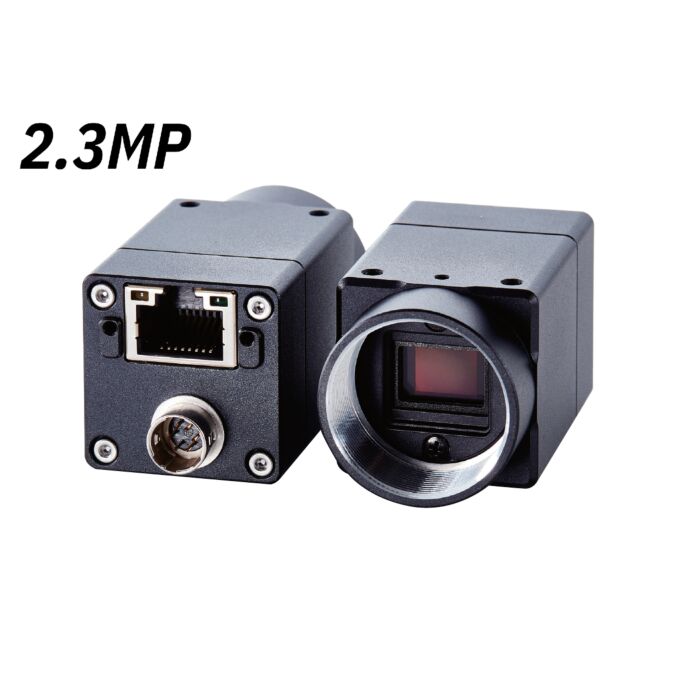

Omron STC-MBS231POE GigE Vision Monochrome Area Scan Camera with Sony IMX249, 2.3 MP, 41.6 fps, C-Mount, PoE

The STC-MBS231POE is a PoE-compatible GigE Vision area scan camera built around the Sony IMX249 2.3 MP global shutter CMOS sensor, delivering 1920 x 1200 resolution at up to 41.6 fps. With a 1/1.2" optical format and 5.86 µm pixel size, it provides excellent dynamic range, low noise, and sharp monochrome imagery for precision inspection and measurement.​

Housed in a compact 29 x 29 x 53 mm cased body with a standard C-mount, the STC-MBS231POE integrates easily into existing machine vision systems and supports long cable runs over standard Ethernet. Industrial features such as global shutter, ROI, binning, decimation, PoE power, and flexible triggering help OEMs and system integrators build reliable, EEAT-aligned imaging solutions for factory automation, electronics inspection, and general industrial vision.

Features:

• 2.3 MP resolution, 1920 x 1200 effective pixels for detailed monochrome images
• Sony IMX249 global shutter CMOS sensor for distortion-free capture of fast motion
• 1/1.2" optical format with 5.86 µm pixel size for high sensitivity and low noise
• GigE Vision interface with PoE for up to 100 m cable runs over standard Ethernet
• Compact cased housing, approx. 29 x 29 x 53 mm, with C‑mount lens interface
• Supports ROI, binning, decimation, image flip, and defective pixel correction for flexible image optimization
• Configurable exposure, analog gain, and digital gain for precise image control
• Industrial-trigger options including edge preset trigger and free-run modes
• GenICam / GigE Vision compliant for easy integration with common vision software



Applications:

• Electronics inspection
• PCB inspection
• Factory automation
• Robotics vision
• Packaging inspection
• Metrology systems
• Surface inspection
• OCR reading
• Code verification
• Traffic monitoring
