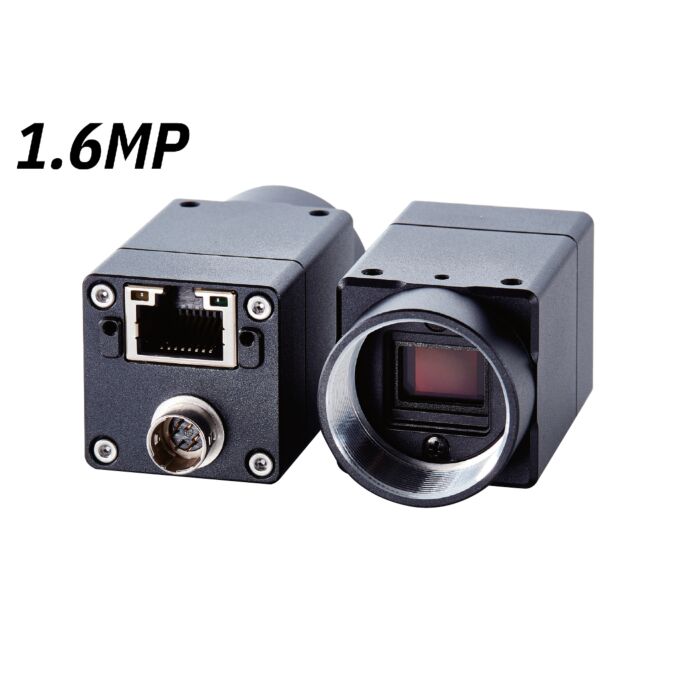

Omron STC-MBS163POE Small GigE Vision Monochrome Camera

GigE Vision Area Scan Camera, 1.6 MP, Monochrome, CMOS Sony IMX273, 1/2.9'', 3.45 µm, 69 fps, Global Shutter, C Mount, Cased, POE
SKU
STC-MBS163POE

These Omron cameras are perfect for applications requiring high quality with it's IMX273 1.6MP global shutter sensor with 70.7fps.

Features:

  • 1/2.9" Sensor Size
  • Sony CMOS Sensor
  • 1.6 MP Resolution
  • Global Shutter
Dimensions  29W x 29H x 53D mm
Camera Mounting Top Plate: M3 x 2
Bottom Plate: M3 x 4
Optical Center Accuracy Rotational accuracy of horizontal and vertical +/- 1.5 deg
Frame Memory 20M: 128MB, 20M: 64MB
Housing and GND of PCB is connected isolating
GigE Vision Vision 2.1
GenICam SNFC SFNC2.3
PTP о
Gamma LUT control / GenICam
Event о
UserSet 8 Set
Chunk Data о
Action о
Number of Corrective Defective Pixels 20M: 4,096 / 12M or smaller: 2,046
