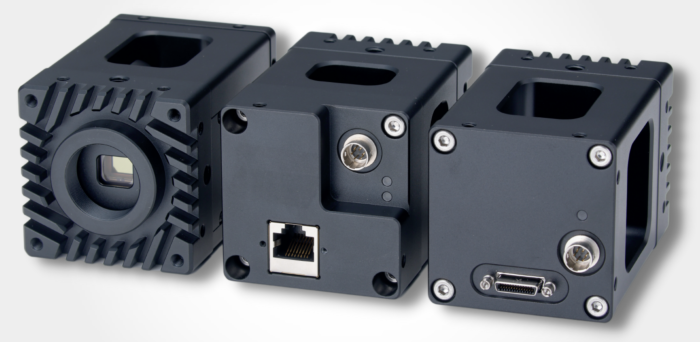

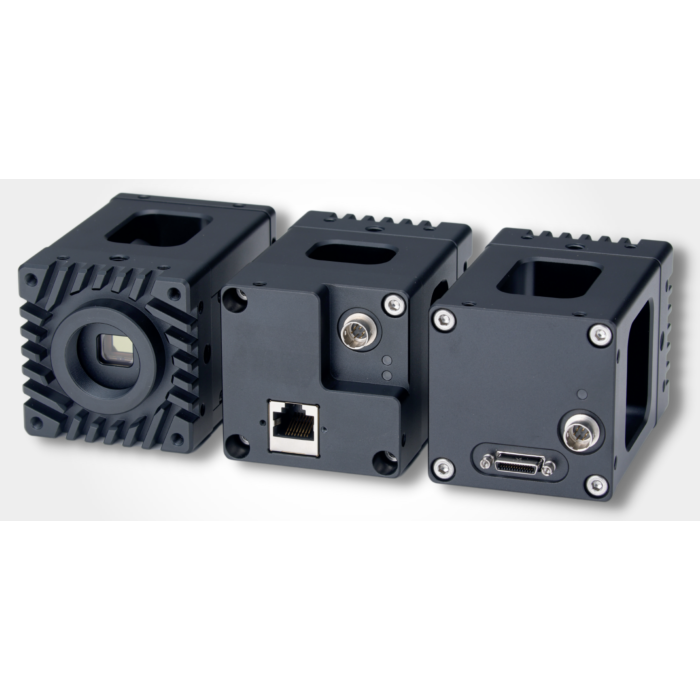

Omron STC-LBS34POE-SWIR Wide-Band and High-Sensitivity SWIR Camera
SONY IMX991 adopted SWIR camera
$15,000.00
Please call for pricing
SKU
Omron STC-LBS34POE-SWIR
Equipped with IMX991 with sensitivity of 400 to 1,700 nm. GigE Vision interface
Features:
- 0.3M (640x512)
- Lens Mount: C-mount
- Peltier cooling supported
| Image Sensor | 1/4" 0.3M Progressive SWIR CMOS (IMX991） |
| Shutter Mode | Global Shutter |
| Effective Pixels | 656 x 520 (0.3M) |
| Cell Size | 5.0(H) x 5.0(v) um |
| Scan Mode | Full scan/ ROI |
| Maximum FPS | 242,2fps(8bit), 167.8fps(10bit) 223.7fps(10bit Packed), 42fps(12bit), 56fps(12bit Packed) |
| Image Format | Mono8 / Mono10 / Mono10Packed / Mono12 /Mono12Packed |
| Capable Bandwidth | 400 nm ～ 1,700nm |
| Electronic Shutter | 8μ sec ～16.777 sec |
| Analog Gain | 0 ～ 14.8 dB |
| Digital Gain | x1 ～ x3 |
| ROI | Horizontal：8～640pixel/Vertical：8～512Line image size adjust unit：H 8pixel/ V 8Line image offset adjustment valley：H 8pixel/ V 8Line |
| Gamma | Gamma 0.1～4.0 |
| Binning | x2 Horizontal・Vertical / Off |
| Decimation | x2 Horizontal・Vertical / Off |
| Image Flip | Top bottom / right left / top bottom right left /of |
| Pixel Defect Correction | Maximum 8,192 pixels |
| Automatic Image Quality Control | Automatic exposure : corresponded Auto Gain：corresponded Auto white balance：N/A |
| Operating Mode | Edge preset / pulse trigger / free run (continuous mode) |
| Interface | PoE：IEEE802.3af CLASS3（1000BASE-T) |
| Protocol | GigE Vision 2.1 GenICam SFNC 2.6 base IEEE1588(PTP)corresponded |
| Input/Output Terminal | 1Input（opt isolated) / 1output（opt isolated) 1In/output（non-isolated, open collector) |
| Power Input Voltage | +10.8 ～ 26.4Vdc(power signal connector） Power Over Ethernet（IEEE802.3afbase） |
| Power Consumption | +12V / +24V：10.1 W, PoE：10.2W |
| Lens Mount | C Mount |
| Weight | around 465g |
| Operating Temperature (low limit) | Ambient environment temperature：0℃, Ambient environment humidity: 20～85%RH (no condensation） |
| Operating Temperature (high limit) | Ambient environment temperature：+56℃, Ambient environment humidity：20～85%RH (no condensation) boundary temperature：+68℃ |
