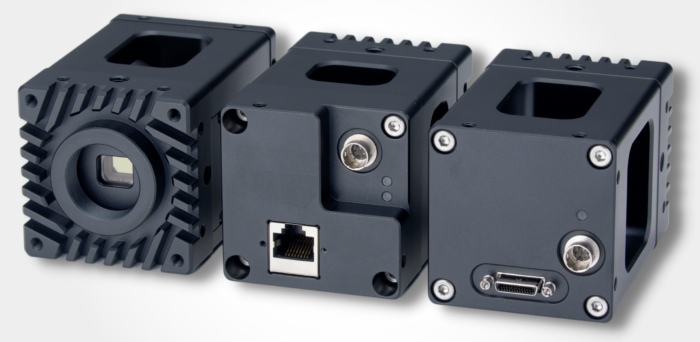

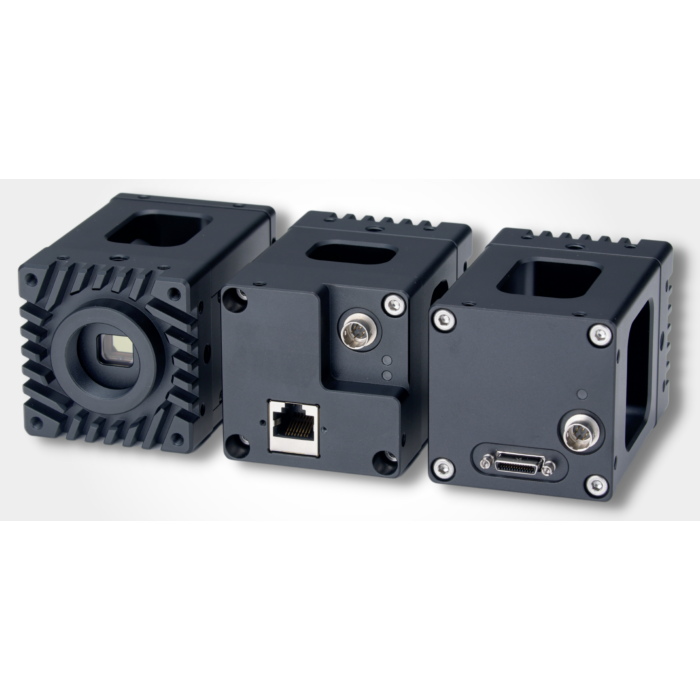

Omron STC-LBS132CL-SWIR Wide-Band and High-Sensitivity SWIR Camera

SONY IMX990 adopted SWIR camera
SKU
Omron STC-LBS132CL-SWIR

Equipped with IMX990 with sensitivity of 400 to 1,700 nm. Camera Link interface

Features:

  • 1.3M (1280x1024)
  • Lens Mount: C-mount
  • Peltier cooling supported
Capable Bandwidth 400 - 1,700 nm
Mono-chrome/Color Mono-chrome
Resolution 1.3M
Frame Rate 134 fps
Effective Pixels (H × V) 1280 x 1024
Sensor Size 1/2
Cell Size (μm) 5 x 5
Sensor IMX990
Lens Mount C
General Specifications CameraLink PoCL not supported
