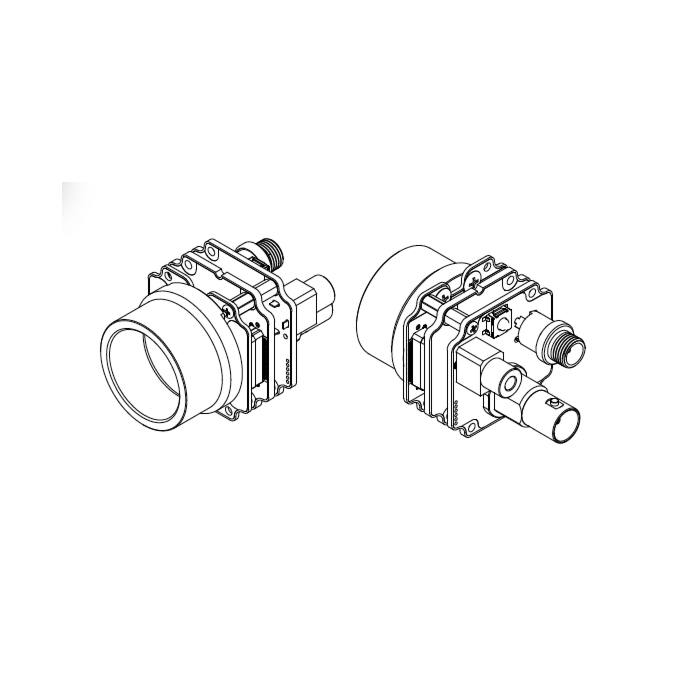

Omron STC-HD213SDIN-B 1/2.8" Board Level Camera With 1080P60 HD Output, Rolling Shutter and Sony IMX291 CMOS Sensor
*Please note tariff fee is included in price*
NDAA CompliantThe Omron STC-HD213SDIN-B industrial camera delivers unparalleled image quality and advanced functionality, leveraging its 1/2.8" 2MP Sony IMX291 CMOS sensor. Equipped with a rolling shutter and high-definition active picture resolution of 1920 (H) x 1080 (V), it ensures precise image capture with 2.9 μm pixel size for enhanced light sensitivity and detail.
This camera outputs via 3G-SDI and HD-SDI interfaces compliant with industry standards such as SMPTE 424M and SMPTE 292M, supporting a wide range of video formats, including 1080p60, 1080i59.94, and 720p60, at a 10-bit 4:2:2 YCbCr color depth. Its minimum scene illumination of 0.4 lux at F1.4 ensures performance in low-light conditions, while its configurable Auto Exposure (AEE) and AGC provide real-time optimization.
Advanced features include user-selectable gamma curves, auto and manual white balance, horizontal/vertical mirroring, and preset DSP configurations accessible via +3.3V UART communication. Line and shadow generators enhance visualization, and defective pixel correction ensures image fidelity. Operates within 9-15 VDC input range, consuming less than 2.1 W, making it highly efficient for industrial and embedded applications.
Features:
- Sony IMX291 CMOS Sensor
- Full HD 1080p Output
- 3G-SDI/HD-SDI Compatibility
- Low-Light Sensitivity (0.4 Lux)
- Rolling Shutter
- Configurable AEE & AGC
- User Preset DSP Modes
- Gamma Adjustment
- Mirror and Flip Options
- Defective Pixel Correction
Applications:
- Industrial Automation
- Machine Vision Systems
- Quality Control and Inspection
- Surveillance and Security
- Medical Imaging
- Direct-connect monitor
- Inspection
- Microscopy
| Image Device | 1/2.8" 2M Progressive Color CMOS (SONY: IMX291) |
| Shutter Type | Rolling Shutter |
| HD Active Picture Element | 1920 (H) x 1080(V) |
| Cell Size | 2.9 (H) x 2.9 (V) μm |
| Sync. System | Internal |
| Video Output | 3G-SDI (Physical layer: SMPTE 424M, Data Mapping: SMPTE 425M Level-A Compliant),4:2:2 YCbCr 10bit1080p60 / 1080p59.94 / 1080p50HD-SDI (SMPTE292M Compliant) 4:2:2 YCbCr 10bit1080p30 / 1080p29.97 / 1080p25 /1080i60 / 1080i59.94 / 1080i50 / 720p60 / 720p59.94 / 720p50(Default: 1080i59.94) |
| Minimum Scene Illumination | 0.4 Lux (Maximum Gain) @ F1.4 |
| ALC | AEE (auto exposing) and AGC are configurable via UART communication (Default: ALC On) |
| Shutter Speed | AEE or fixed exposure time control is selectable via UART communication (Default: AEE) |
| Extended | N/A |
| High Speed | From 1/33,750 seconds (*1) |
| Gain | AGC or Fixed gain is selectable via UART communication (Default: AGC) 0 to 45 dB |
| Gamma | Gamma is selectable from manual and 8 preset (0.3 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1) via UART communication (Default: Manual) |
| White Balance | Auto white balance / Manual white balance / Push to set white balanceWhite balance is selectable via UART (Default: Auto white balance) |
| WDR | N/A |
| Mirror Image | Horizontal flip / Vertical flip / Horizontal and vertical flip (180-degree rotation) / Normal image (Default: Normal image) |
| DSP user Preset | Eight User presets are selectable via UART communication (Default: Preset 0) |
| Line Generator | Twelve lines (Six horizontal and six vertical lines with all available colors)(Default: Disable) |
| Circle Line Generator | One circle(Default: Disable) |
| Shadow Mask Generator | Both horizontal and vertical with shading level are adjustable via UART communication (Default: Disable) |
| Still Image | N/A |
| Digital Zoom | N/A |
| Communication | +3.3V UART communication via 3.5Φ Stereo Jack(Baud rate: 115,200ps / 57,600bps / 38,400bps / 19,200bps / 9,600bps) |
| Character Generator | Built-in character generation function via UART communication |
| Defective Pixel Collection | Support |
| Input Voltage | +9 to +15 Vdc (Typical: +12 Vdc) |
| Consumption | Less than 2.1 W |
