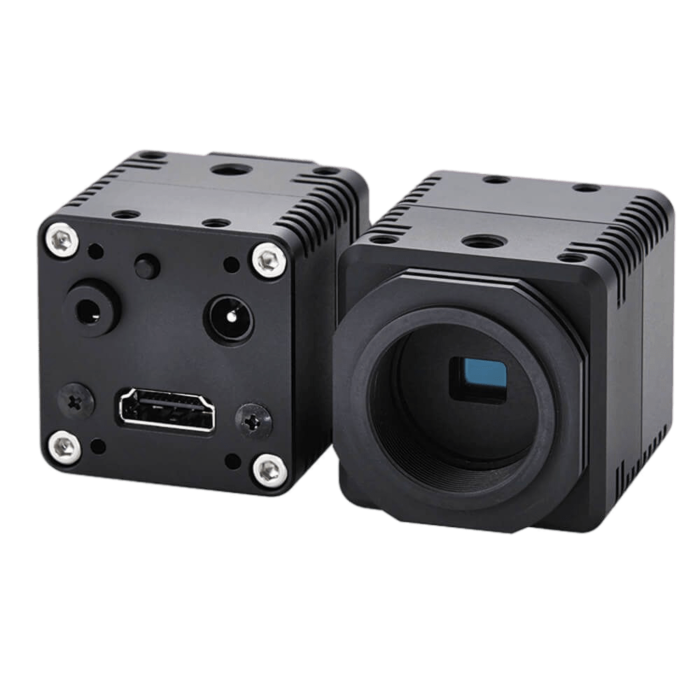

Omron STC-HD213DVN 1/2.8" C-Mount Camera with 1080P60 HD Output, Rolling Shutter, and Sony IMX291 CMOS Sensor
NDAA Compliant
The Omron (Sentech) STC-HD213DVN is a high-performance, full HD industrial camera designed for precision imaging applications. Powered by the Sony IMX291 1/2.8" CMOS sensor, it delivers sharp 1080P video at up to 60 frames per second (fps) using a rolling shutter. With an effective resolution of 1920 x 1080 pixels, RGB 8-bit image format, and support for multiple HD output modes—including 1080P60 / 59.94 / 50, 720P60 / 59.94 / 50, and 1080i formats—this compact unit ensures smooth, high-quality color imaging across a wide range of conditions.
The STC-HD213DVN features a C-mount lens interface, IR-cut optical filter, and robust image control functions including manual/auto gain up to 45 dB, exposure time from 29.6 µs to 2.12 s, and gamma settings ranging from 0.3 to 1.0. With a low power draw of less than 2.1W, compact form factor (40 x 40 x 48.9 mm), and support for vertical and horizontal image flip, defective pixel correction, and auto white balance, this camera is ideal for demanding machine vision, inspection, microscopy, broadcast, and embedded imaging applications requiring high resolution and high-speed output over DVI 1.0 (RGB).
Key Features:
- Full HD resolution: 1920 x 1080 (1080P)
- Sony IMX291 1/2.8" CMOS sensor with rolling shutter
- High-speed output: Up to 60 fps (RGB 8-bit)
- DVI 1.0 (RGB) digital interface
- C-mount lens with IR-cut filter
- Exposure range: 29.6 µs to 2.12 s
- Gain: Analog/digital up to 45 dB
- Gamma: Adjustable (0.3–1.0)
- Compact size: 40 x 40 x 48.9 mm
- Power: External +9 to +15 VDC, <2.1W
- Image flip options: vertical, horizontal, both
- Auto/manual control for gain, exposure, white balance
- Defective pixel correction: Up to 256 pixels
- Saved user settings support
- Weight: 129 grams
- Operating temperature: 0°C to +48°C
- 1/4"-20 tripod mount
- 3.5mm control interface
- NDAA compliant
Industrial Applications:
- Machine vision systems
- Quality inspection lines
- Embedded imaging
- Scientific imaging
- Broadcast and media monitoring
- Robotics and automation
| Model | STC-HD213DVN |
|---|---|
| Resolution | 1920 x 1080 (1080P) |
| Frame Rate | Up to 60 fps (8-bit RGB) |
| Sensor | Sony IMX291 CMOS, 1/2.8" |
| Shutter Type | Rolling Shutter |
| Cell Size | 2.9 µm x 2.9 µm |
| Interface | DVI 1.0 (RGB), HDMI x1 |
| Output Formats | 1080P60 / 59.94 / 50 / 30 / 29.97 / 25, 1080i60 / 59.94 / 50, 720P60 / 59.94 / 50 |
| Image Format | RGB 8-bit |
| Exposure Time | 29.6 µs to 2.12 s |
| Gain (Analog + Digital) | 0 to 45 dB |
| Gamma | Manual / 0.3 – 1.0 (step options) |
| Lens Mount | C-Mount |
| Optical Filter | IR-Cut Filter |
| Image Flip | Vertical, Horizontal, Both, Off |
| Defective Pixel Correction | Up to 256 pixels |
| White Balance | Auto / Manual / Push-to-Set |
| Power Supply | +9V to +15V DC |
| Power Consumption | Less than 2.1 W |
| Temperature Range | Operational up to +48°C |
| Dimensions (W x H x D) | 40 x 40 x 48.9 mm |
| Weight | Approx. 129 g |
| Power Connector | DC Power Jack (PC721A) |
| Control Connector | 3.5mm Stereo Jack |
| Operational Mode | Free-Run |
