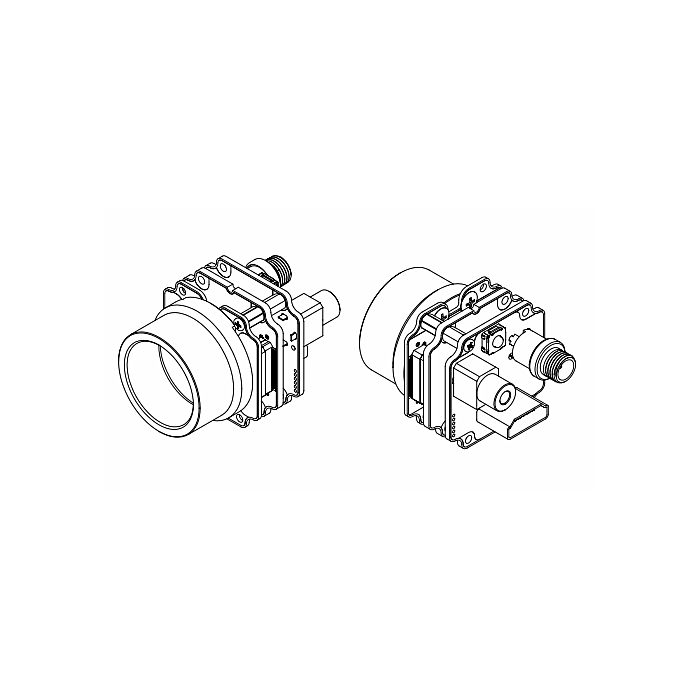

Omron STC-HD213DVN-B 1/2.8" Board Level Camera With 1080P60 HD Output, Rolling Shutter and Sony IMX291 CMOS Sensor
NDAA Compliant
*Please note tariff fee is included in price*
The Omron STC-HD213DVN-B features a 1/2.8" SONY IMX291 CMOS sensor, delivering 1920 x 1080 HD resolution with superior low-light performance (0.4 Lux @ F1.4). Supporting DVI 1.0 RGB output, programmable DSP profiles, and +3.3V UART communication, this camera is NDAA Compliant optimized for industrial and medical imaging, surveillance, and more.The Omron STC-HD213DVN-B delivers cutting-edge performance with its 1/2.8" 2M Progressive Color CMOS sensor (SONY IMX291), ensuring superior image clarity and color accuracy. Featuring a 1920 x 1080 HD resolution and a 2.9 µm pixel size, this camera excels in providing vivid and detailed visuals. Equipped with a rolling shutter and internal sync system, it ensures smooth and flicker-free imaging even in dynamic environments.
This camera supports a wide range of video output formats, including 1080p60, 1080p30, 720p60, and more, conforming to DVI 1.0 RGB standards for seamless integration. The low-light sensitivity of 0.4 Lux @ F1.4 makes it ideal for challenging lighting conditions. Its configurable AGC (0-45 dB) and manual or preset gamma correction (0.3 to 1) options provide advanced control over image parameters, all adjustable via +3.3V UART communication.
Engineered for versatility, the STC-HD213DVN-B supports manual and auto white balance, digital mirroring, and eight DSP user presets for customizable imaging solutions. Additional features like a line generator, circle overlay, and a built-in character generator enhance its adaptability for industrial automation, machine vision, medical imaging, and more.
With a power input range of +9 to +15 Vdc, low power consumption of <2.1 W, and robust build, the Omron STC-HD213DVN-B is a reliable choice for demanding applications requiring precision and consistency.
Features:
- High Definition (HD) Imaging: Capture crystal-clear visuals with the camera's HD resolution, ensuring every detail is vividly preserved.
- Progressive Scan Technology: Enjoy smooth and flicker-free images, thanks to the progressive scan functionality, ideal for dynamic scenes.
- Low-Light Sensitivity: The camera's impressive low-light sensitivity ensures excellent performance even in challenging lighting conditions.
- Dynamic Range Optimization: Benefit from optimized dynamic range to enhance image quality in high-contrast environments.
- Advanced CMOS Sensor: The 1/2.8" CMOS sensor delivers exceptional image clarity and color accuracy.
- Multiple Output Formats: The camera supports various output formats, providing flexibility for integration with your existing setup.
- Programmable DSP Profiles
Applications:
- Industrial Automation – Streamlines manufacturing processes with precise visual data capture
- Machine Vision Systems – Enables automated inspection and quality assurance workflows
- Quality Control and Inspection – Ensures product consistency through detailed visual analysis
- Surveillance and Security – Provides reliable monitoring in critical security applications
- Medical Imaging – Supports diagnostic and clinical imaging requirements with high-definition clarity
- Direct-connect monitor – Facilitates seamless integration with display systems for real-time observation
- Inspection – Delivers comprehensive visual assessment for component verification
- Microscopy – Captures fine details for scientific research and laboratory analysis
| Image Device | 1/2.8" 2M Progressive Color CMOS (SONY: IMX291) |
| Shutter Type | Rolling Shutter |
| HD Active Picture Element | 1920 (H) x 1080(V) |
| Cell Size | 2.9 (H) x 2.9 (V) μm |
| Sync. System | Internal |
| Video Output | DVI 1.0 conformity RGB 1080p60 / 1080p59.94 / 1080p50 / 1080p30 / 1080p25 / 1080i60 / 1080i59.94 / 1080i50 / 720p60 / 720p59.94 / 720p50 / Auto |
| Minimum Scene Illumination | 0.4 Lux (Maximum Gain) @ F1.4 |
| ALC | AEE (auto exposing) and AGC are configurable via UART communication (Default: ALC On) |
| Shutter Speed | AEE or fixed exposure time control is selectable via UART communication (Default: AEE) |
| Extended | N/A |
| High Speed | From 1/33,750 seconds (*1) |
| Gain | AGC or Fixed gain is selectable via UART communication (Default: AGC) 0 to 45 dB |
| Gamma | Gamma is selectable from manual and 8 preset (0.3 / 0.45 / 0.5 / 0.6 / 0.7 / 0.8 / 0.9 / 1) via UART communication (Default: Manual) |
| White Balance | Auto white balance / Manual white balance / Push to set white balance White balance is selectable via UART (Default: Auto white balance) |
| WDR | N/A |
| Mirror Image | Horizontal flip / Vertical flip / Horizontal and vertical flip (180-degree rotation) / Normal image (Default: Normal image) |
| DSP user Preset | Eight User presets are selectable via UART communication (Default: Preset 0) |
| Line Generator | Twelve lines (Six horizontal and six vertical lines with all available colors)(Default: Disable) |
| Circle Line Generator | One circle(Default: Disable) |
| Shadow Mask Generator | Both horizontal and vertical with shading level are adjustable via UART communication (Default: Disable) |
| Still Image | N/A |
| Digital Zoom | N/A |
| Communication | +3.3V UART communication via 3.5Φ Stereo Jack(Baud rate: 115,200ps / 57,600bps / 38,400bps / 19,200bps / 9,600bps) |
| Character Generator | Built-in character generation function via UART communication |
| Defective Pixel Collection | Support (Up to 256 points) |
| Input Voltage | +9 to +15 Vdc (Typical: +12 Vdc) |
| Consumption | Less than 2.1 W |
